Non Programmable Wireless Radiant Heating Room Thermostat-HTW-31-W13V is unlike ordinary single unit design thermostat, consisting of two units-Thermostat Panel and Receiver. The Receiver serves for wiring connections and heat/cool on/off control. The thermostat panel serves as user interface and temperature sensing/control. User can put the control Centre nearby and can read/control the temperature of really the living area while put the Receiver besides the heating or cooling system. The two units are linked by RF.
Non Programmable Wireless Radiant Heating Room Thermostat-HTW-31-W13V.pdf
>> General
Non Programmable Wireless Radiant Heating Room Thermostat-HTW-31-WKT13V is unlike ordinary single unit design thermostat, consisting of two units-Thermostat Panel and Receiver. The Receiver serves for wiring connections and heat/cool on/off control. The thermostat panel serves as user interface and temperature sensing/control. User can put the control Centre nearby and can read/control the temperature of really the living area while put the Receiver besides the heating or cooling system. The two units are linked by RF.
>> Features
• These two units are linked by RF(Radio Frequency)
• The receiver can bear 10A current load
• Room temperature and set point easily display
• Big adjust knob is easy for aged and children operation
• Control distance 100M open site
• Frequency: 868 MHz
>> Technical parameters
• Item:Non Programmable Wireless Radiant Heating Room Thermostat-HTW-31-W13V
• Thermostat paneldimensions: Surface mounted, 135mm x 87.5 mm x 23.2mm.
• Receiver dimensions: Surface mounted, 114mm x 86 mm x30mm.
• Power source:2 AA battery
• Room temperature setting range:5°C to 30°C
• Accuracy:±0.5°C
• Relay contact:230VAC 10A
• Frequency:868MHZ
• OEM/ODM optional
1) Customized designs, materials & colors available
2) Special Design service provided by our RD department
3) We provide new program development

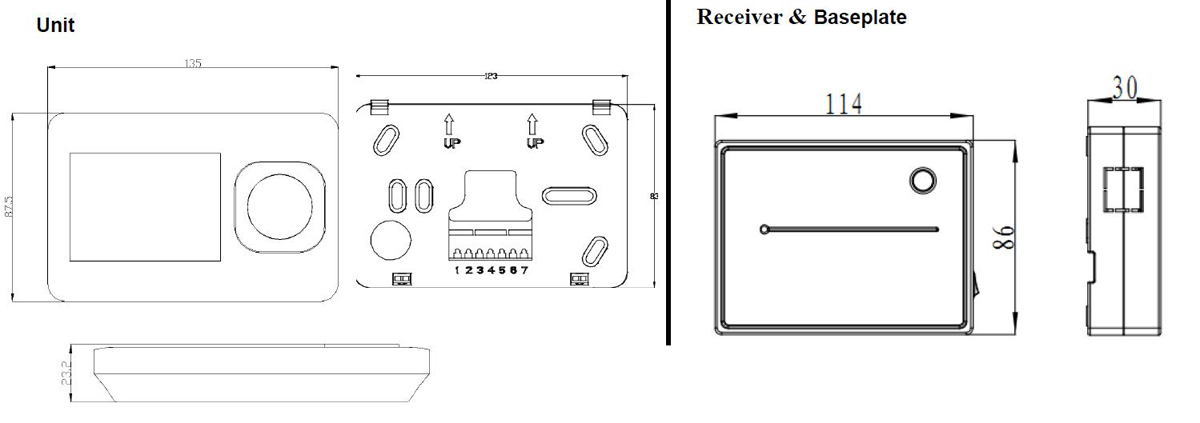

>> Dimensions
