• Adjustable Heat, Cool, Heat/Cool, Fan Mode control
• Adjustable Manual 3-speed and automatic fan speed control
• 5+1+1 weekly programmable
• Clock and Date Display
• 4-pipes & 2-pipes(optional)
• 0-10V(optional)
•RS-485, Modbus(optional)
• Key card(optional)

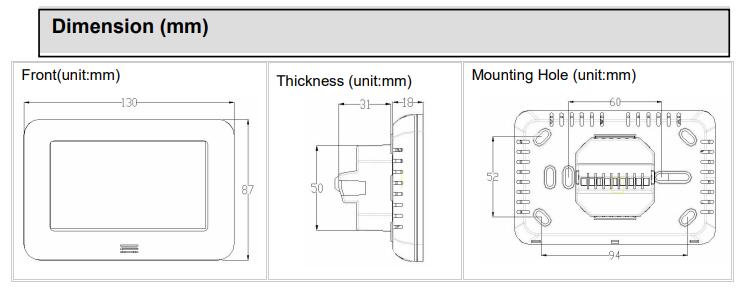

• 86*86mm mounting
Product Description
Product Description
>> Features

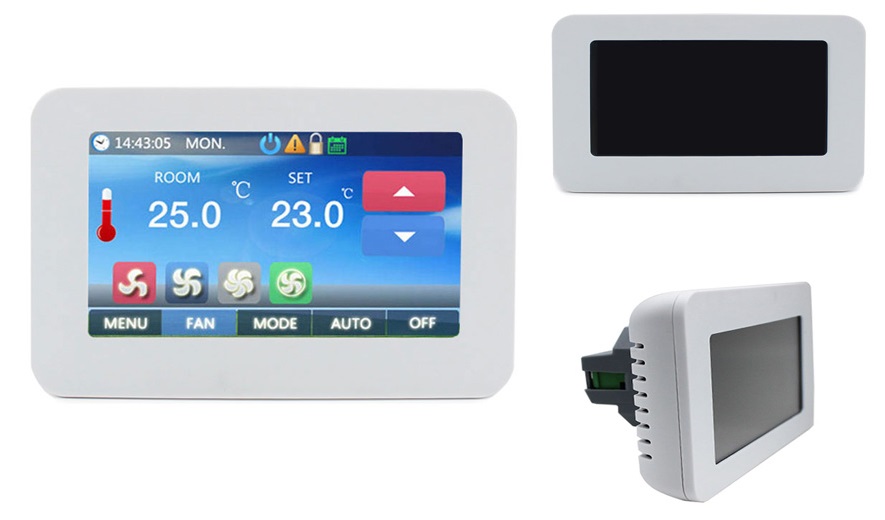

• Attractive Color Touch Screen Operation
• Adjustable Heat, Cool, Heat/Cool, Fan Mode control
• Adjustable Manual 3-speed and automatic fan speed control
• 5+1+1 weekly programmable
• Clock and Date Display
• 4-pipes & 2-pipes(optional)
• 0-10V(optional)
•RS-485, Modbus(optional)
• Key card(optional) • 86*86mm mounting
>> Technical Specification
Power supply
110/220/24VAC
Frequency
50/60HZ
Sensor
- NTC 10Kohms at 25℃
Accuracy
± 0.5℃
Backlight
Color
Power Consumption
1.5A
Setpoint range
5~35℃
Ambient
0~50℃
Protection Class
IP30
Relative Humidity
85%
Housing
ABS to UL94-5 fire retardant plastic

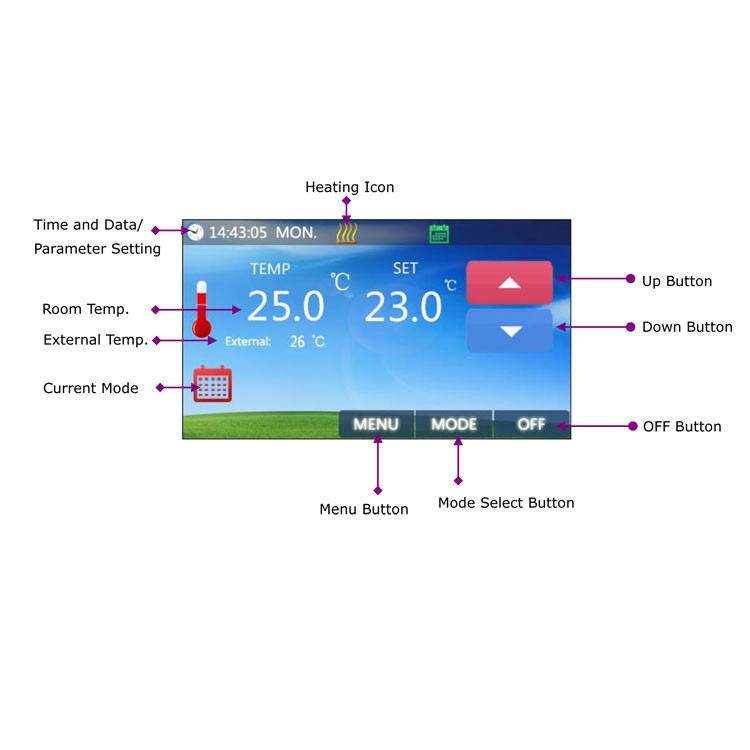

>> Display
Certifications
Packing & Shipping
>> Customer Service
1. OEM & ODM service offered 2. Sample's fee can be refunded after order reached 2000pcs
>> Warranty 1. Test the products one by one before delivery 2. We guarantee 18months from the date you get the goods, excludes damaged by human 3. If you can find out the problem and fix it easily, we will offer several components for service
