Surface-mounting 4 Pipe Heat+Cool Output With Keycard Block Function Manual Thermostat HTW-31-F13
Surface-mounting 4 Pipe Heat+Cool Output With Keycard Block Function Manual Thermostat HTW-31-F13 Surface-mounting 4 Pipe Heat+Cool Output With Keycard Block Function Manual Thermostat HTW-31-F13 Surface-mounting 4 Pipe Heat+Cool Output With Keycard Block Function Manual Thermostat HTW-31-F13 Surface-mounting 4 Pipe Heat+Cool Output With Keycard Block Function Manual Thermostat HTW-31-F13 Surface-mounting 4 Pipe Heat+Cool Output With Keycard Block Function Manual Thermostat HTW-31-F13

Surface-mounting 4 Pipe Heat+Cool Output With Keycard Block Function Manual Thermostat HTW-31-F13

Product ID : HTW-31-F13
Product Tags : Fan coil thermostat
Product Attributes :

HTW-31-F13 Series Programmable Thermostats are used to control room temperature in commercial,industrial and residential environment via controlling fan coil units and motorized zone valves, motorized fan and valves of heating/cooling central air-condition and system thereof,and uses NTC to detect the room temperature and compares it with desired setpoint so as to maintain the correct temperature.

Product Description
Product Description

Surface-mounting 4 Pipe Heat+Cool Output With Keycard Block Function Manual Thermostat HTW-31-F13

>> General



HTW-31-F13 Series Programmable Thermostats are used to control room temperature in commercial,industrial and residential environment via controlling fan coil units and motorized zone valves, motorized fan and valves of heating/cooling central air-condition and system thereof,and uses NTC to detect the room temperature and compares it with desired setpoint so as to maintain the correct temperature.



>> Feature



• Big LCD Display
• Adjustable Heat/Cool/ Heat&Cool /Fan mode control
• Adjustable Manual 3-speed and Auto Fan Speed control
• Display of Room or Set-Point
• 2/4-pipe system configurable
• 7-Day Separate 4-Events with set-point Programmable
• Occupied/Unoccupied Key-Card with NO/NC input configurable
• Wall Surface Mounting

>>Technical parameters

HTW-31-F13
Backlight color
Blue/White
Power Supply
100-240VAC±10%,50/60Hz(24VAC/2AA DC optional)
Control temperature
+5~+35ºC
Standard load
≤3A
Self power consumption
<1W
Sensor
NTC
Temperature control precision
±1ºC
Temperature measurement resolution
0.1ºC
Transportation storage environment
Temperature: -20~+70, relative humidity: RH < 92%
Display temperature range
Temperature: 0~+45ºC
Shell material
PC flame retardant materials
Dimension (LxWxH)
94mm×34mm×28mm

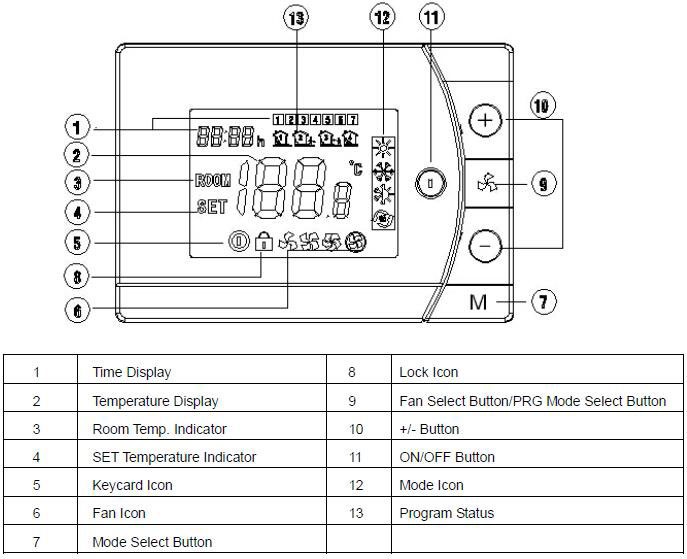

>>Display and Buttons
