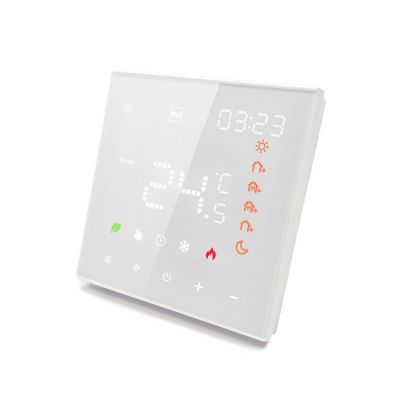

HTW-WF01-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
HTW-WF01-FC series FCU room thermostat is widely used in Fan Coil Unit system Which to control fans and motorized zone valves of heating/cooling central air-conditioning, it main include 2 pipe system and 4 pipe system applications. There are availble options includes Wifi, Modbus or keycard, external sensor etc.
>> Typical Wiring
nMake sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can’t get the system to turn ON in 5 minutes, you’ll know the power is OFF.
nTake off the installation faceplate by rotating and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
nFix the installation plate onto the electric junction box with screws packed in the box.
nFasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)
