HTW-WF06-FC-4MN Modbus+Wifi Thermostat 0-10V Modern Round Fan Coil Touch Screen Room Thermostat

HTW-WF06-FC-4MN Modbus+Wifi Thermostat 0-10V Modern Round Fan Coil Touch Screen Room Thermostat

Product ID : HTW-WF06-FC-4MN

Product Tags : Fan coil thermostat

Product Attributes :

HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.

Product Description

HTW-WF06-FC-4MN Modbus+Wifi Thermostat 0-10V Modern Round Fan Coil Touch Screen

Room Thermostat

>> General

HTW-WF06-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.


>> Feature

* 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew, German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese,Vietnamese, Arabic, Korean)

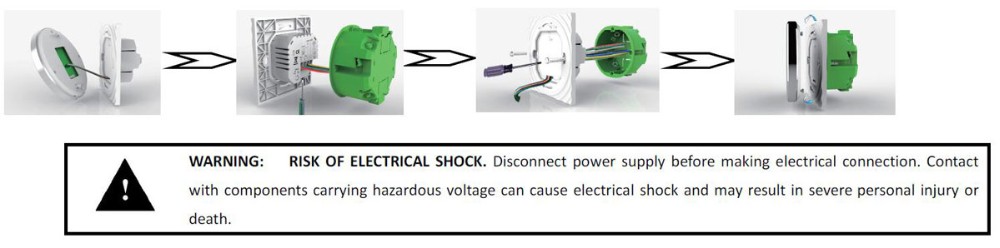

* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Easily Work with Amazon alexa, Google Assitant, IFTTT.
* Group Control in 1 App
* Fashion Sense of Science and Technology

>> Ordering Guide

HTW-WF06- FC-**	-2	2 pipe(tube) system	-W	Window Card input
Smart Wifi Fan Coil Thermostat	-4	4 pipe(tube) system	-T	Clock
	-M	Modulating output	-P	Programmable
	-N	Modbus RTU communication	-E	External Temperature Sensor
	-K	Key Card occupancy input	-24v	Power Supply with 24Vac
e.g. HTW-WF06-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable

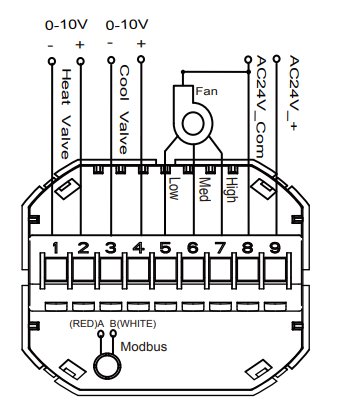

>> Tripical Wiring

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
