Product ID : HTW-MV13
Product Tags :
Product Attributes :

HTW-MV13 series Motorized Modulating Control Valve are mainly used in central air- conditioning cool/heat water system. It can accurately control the flow of cool/heat medium according to the actual requirement, and will not result in sudden change of temperature and to control the room temperature accurately. It provides two types: 2-way and 3-way with sizes: 1/2", 3/4", 1" and 1.1/4'' optional.

Product Description
Product Description

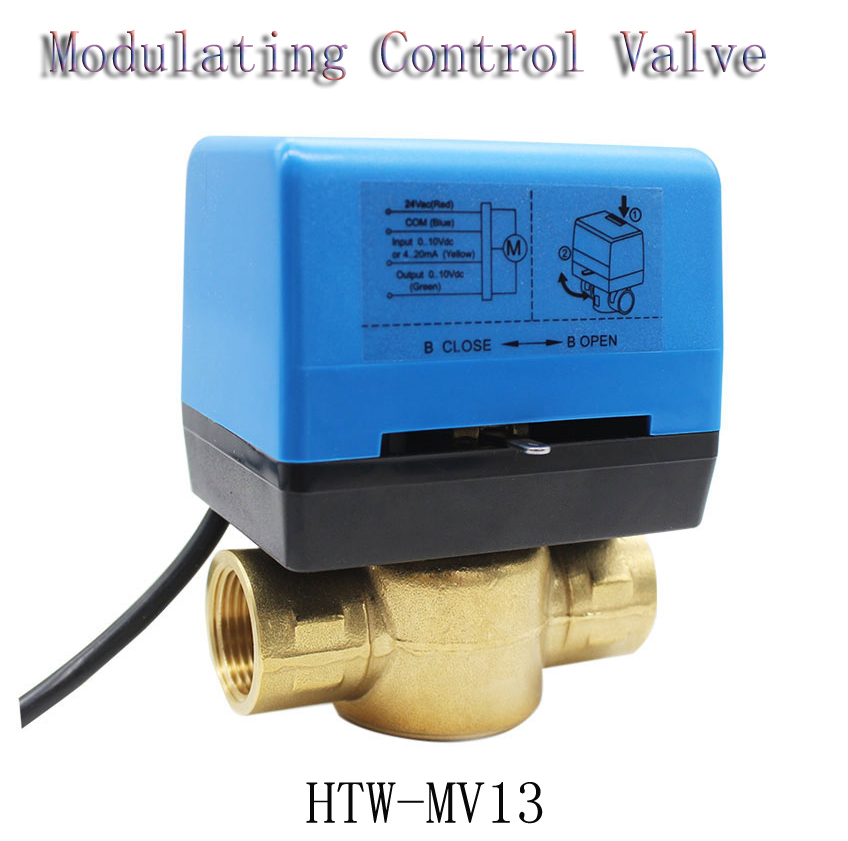

Modulating control valve
3 Port Hydraulic Brass Chilling Water Motorized Valve

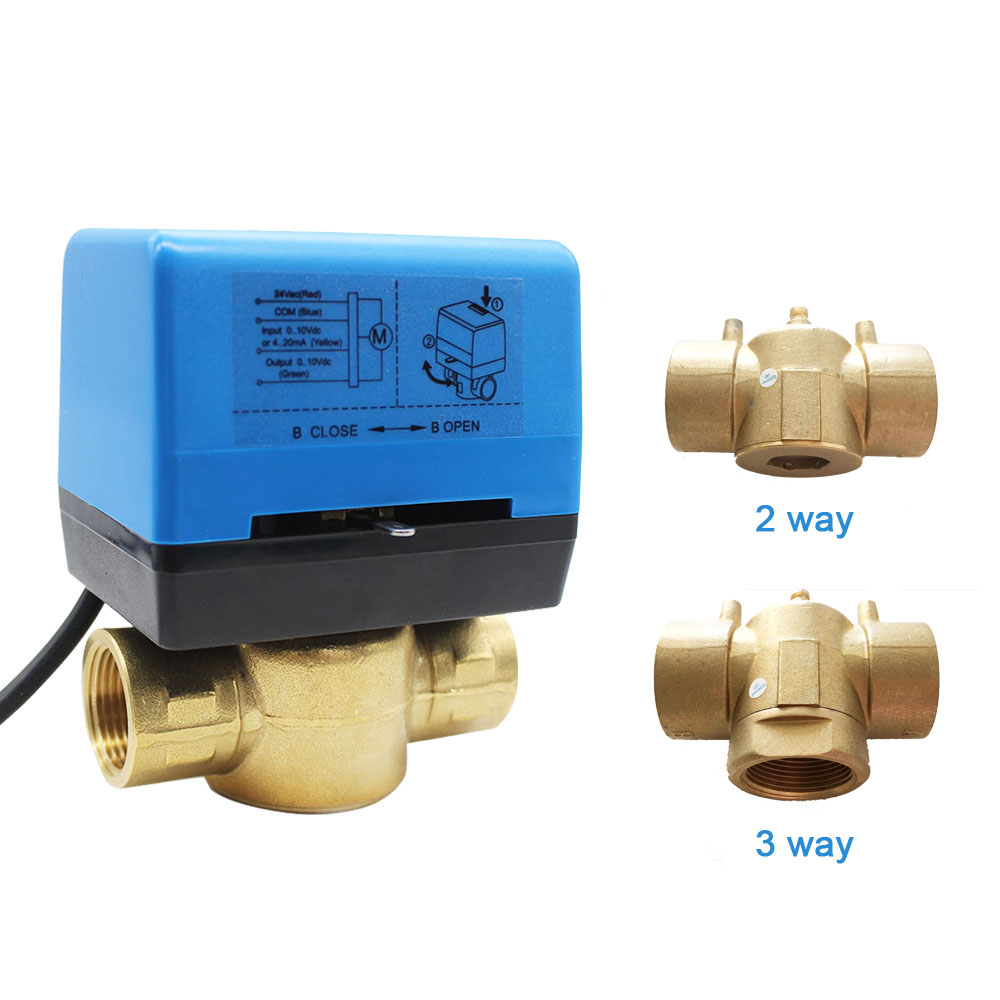

Brass 2 way electric ball valve 24V Modulating Motorized Valve For Central Air Conditioning Cool Heat Water

>> General

HTW-MV13 series Motorized Modulating Control Valve are mainly used in central air- conditioning cool/heat water system. It can accurately control the flow of cool/heat medium according to the actual requirement, and will not result in sudden change of temperature and to control the room temperature accurately. It provides two types: 2-way and 3-way with sizes: 1/2", 3/4", 1" and 1.1/4'' optional.

Screw Thread default provided with BSP(G),
Specific NPSC(N), SWEAT(S), INVERTED FLARE(I), etc. can be customized.



>> Technical parameters



• High precision and sensitivity of temperature control;
• 24Vac, 50/60Hz;
• Timing protection device (for 24V working power supply, it can be assembled for optional), to ensure motor reliable and durable life;
• Built-in electronic card (24V working power supply only) can receive 0~10V (input impedance: 200KΩ) or 4~20mA DC (input impedance: 500Ω) input control signal, and provide proportional control, and 0~10Vdc (1mA) feedback signal.
• The valve actuator and valve body is used tight lock connection. The actuator can be installed after the installation of valve body. It has flexible and convenient assembly.



Modulating valve

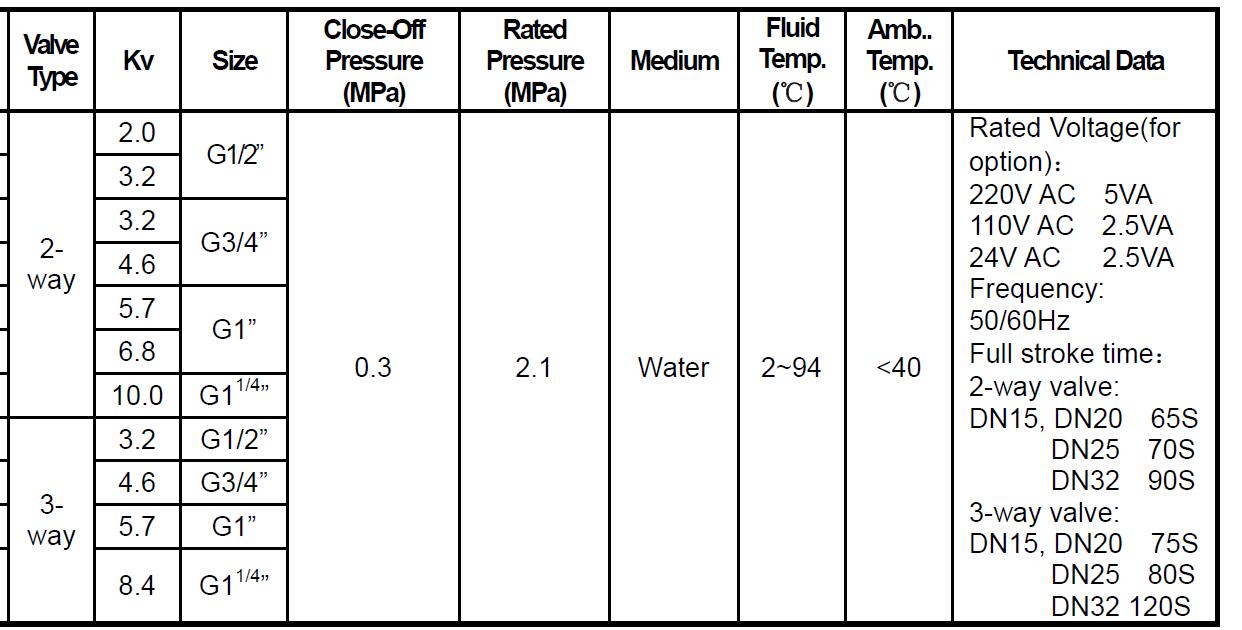

>> Specifications

motorized valve specifications

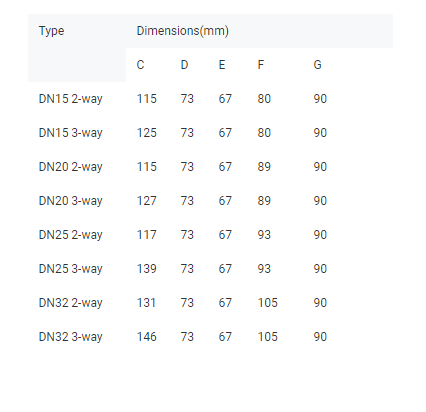

>> Dimensions

dimensions

Modulating Motorized Valve

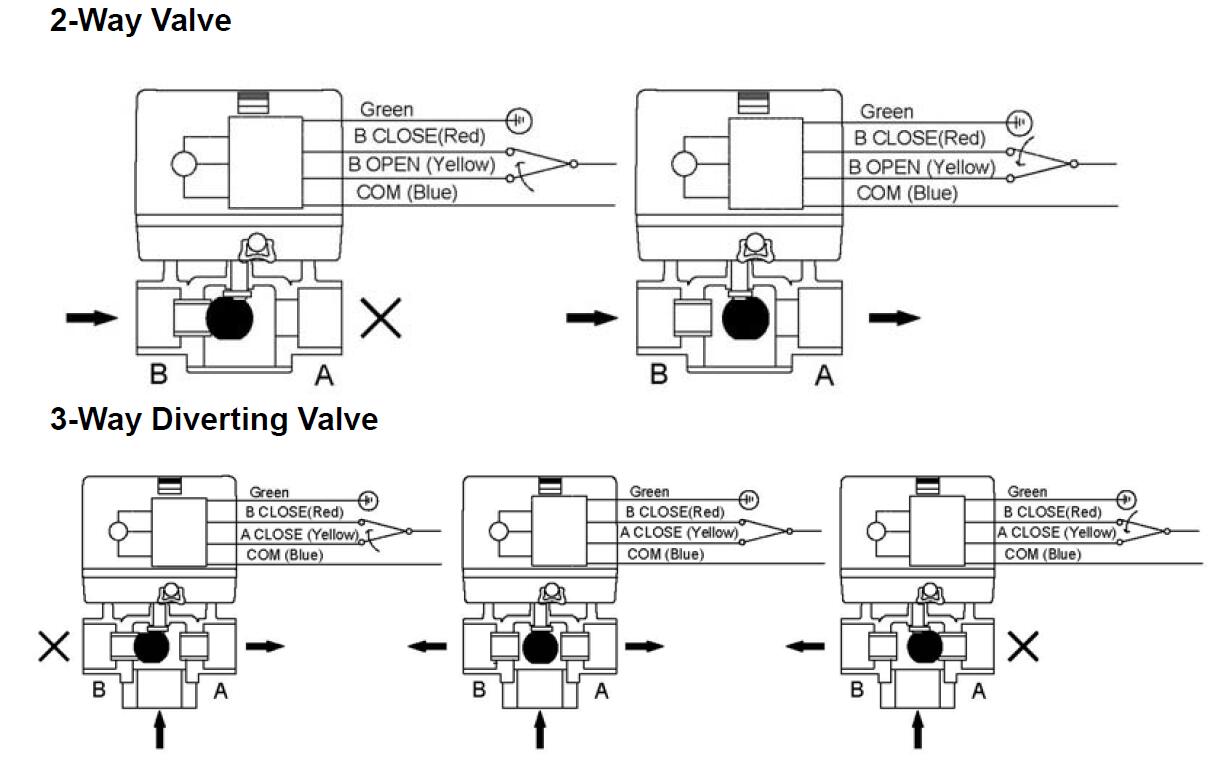

>> Installation and Set Up

installaion and set up
