Modulating Thermostat Room Programmable Thermostat with Transformer Control 3-Speed Fan EC Fan

Modulating Thermostat Room Programmable Thermostat with Transformer Control 3-Speed Fan EC Fan

Product ID : HTW-FC09-FVMN-24

Product Tags : Fan coil thermostat Room thermostat modbus thermostat

Product Attributes :

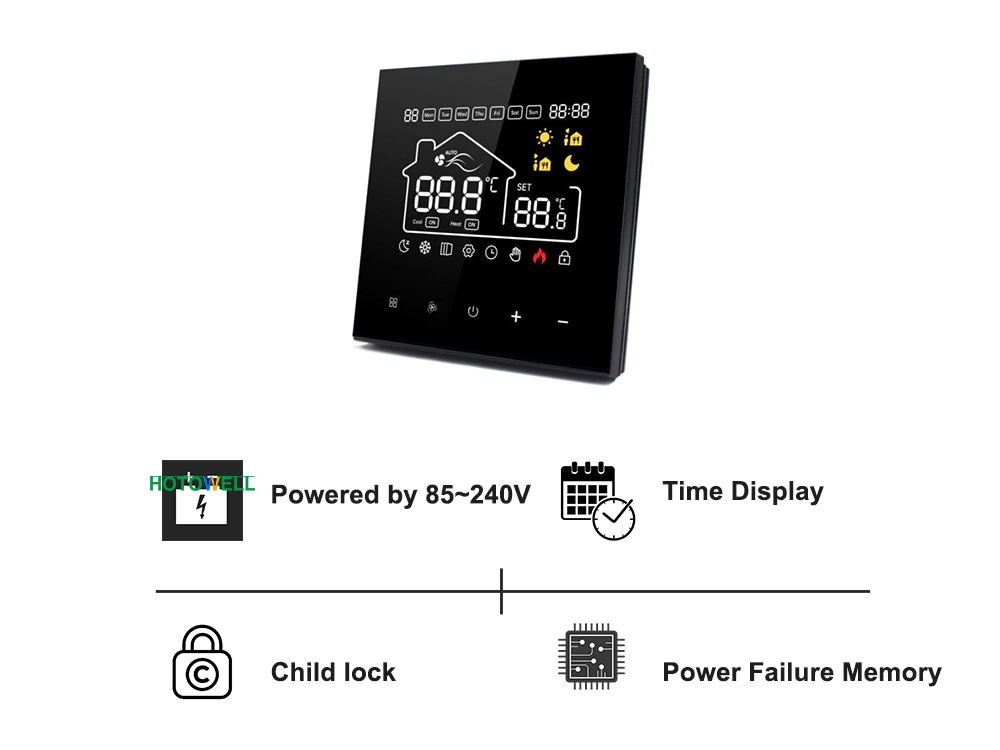

HTW-FC09 controls the 3-speed fan/0-10V EC fan and modulating valve in the central air-conditioning system. It comes with a powerful built-in transformer that outputs 24VDC to a valve (PICV).

Product Description

Modulating Thermostat Room Programmable Thermostat with Transformer Control 3-Speed Fan EC Fan

>> General

HTW-FC09-FVMN-24

HTW-FC09 controls the 3-speed fan/0-10V EC fan and modulating valve in the central air-conditioning system to maintain an ideal room temperature. It comes with a powerful built-in transformer that outputs 24VDC to the modulating valve (PICV) for energy and cost savings.

>> Wiring

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Set-Point Range	5~50°C	Temperature Accuracy	±0.5°C or ±1℉
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5~99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
