WiFi Wireless boiler Thermostat HTW-31-WKT19-WF.pdf

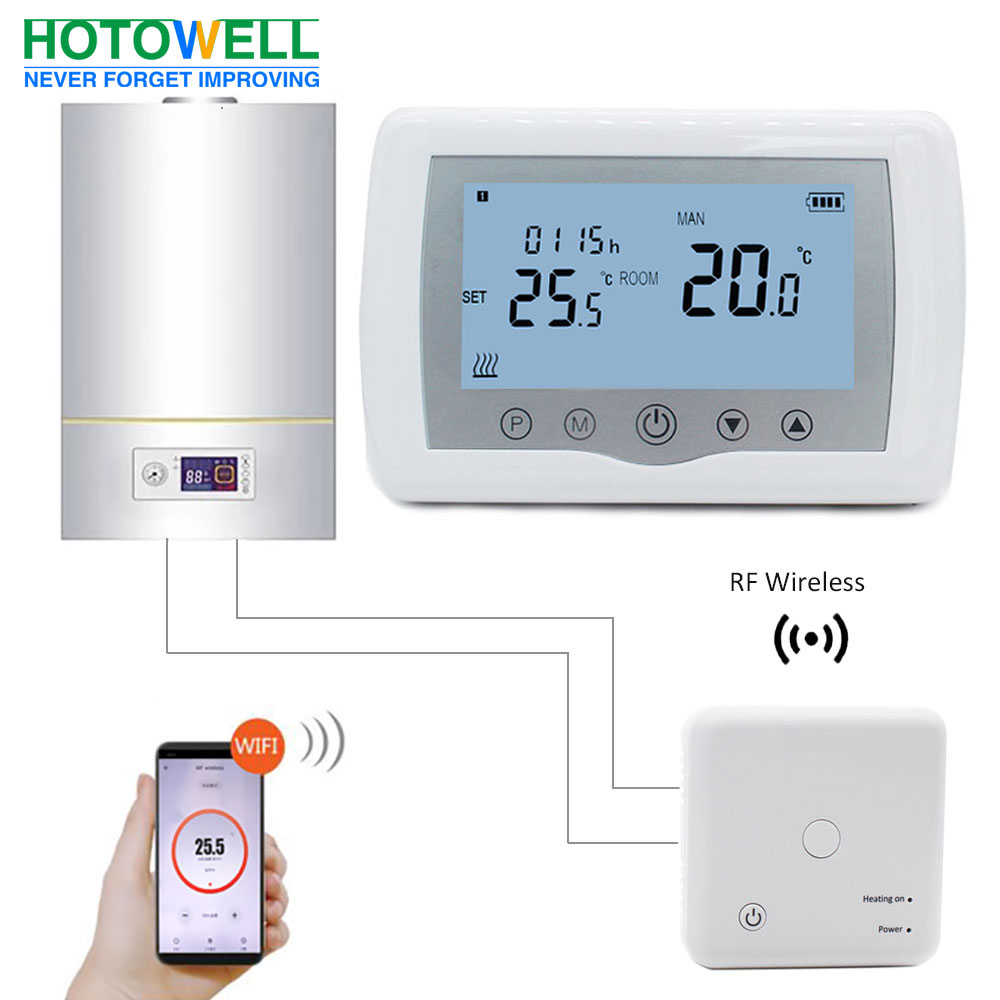

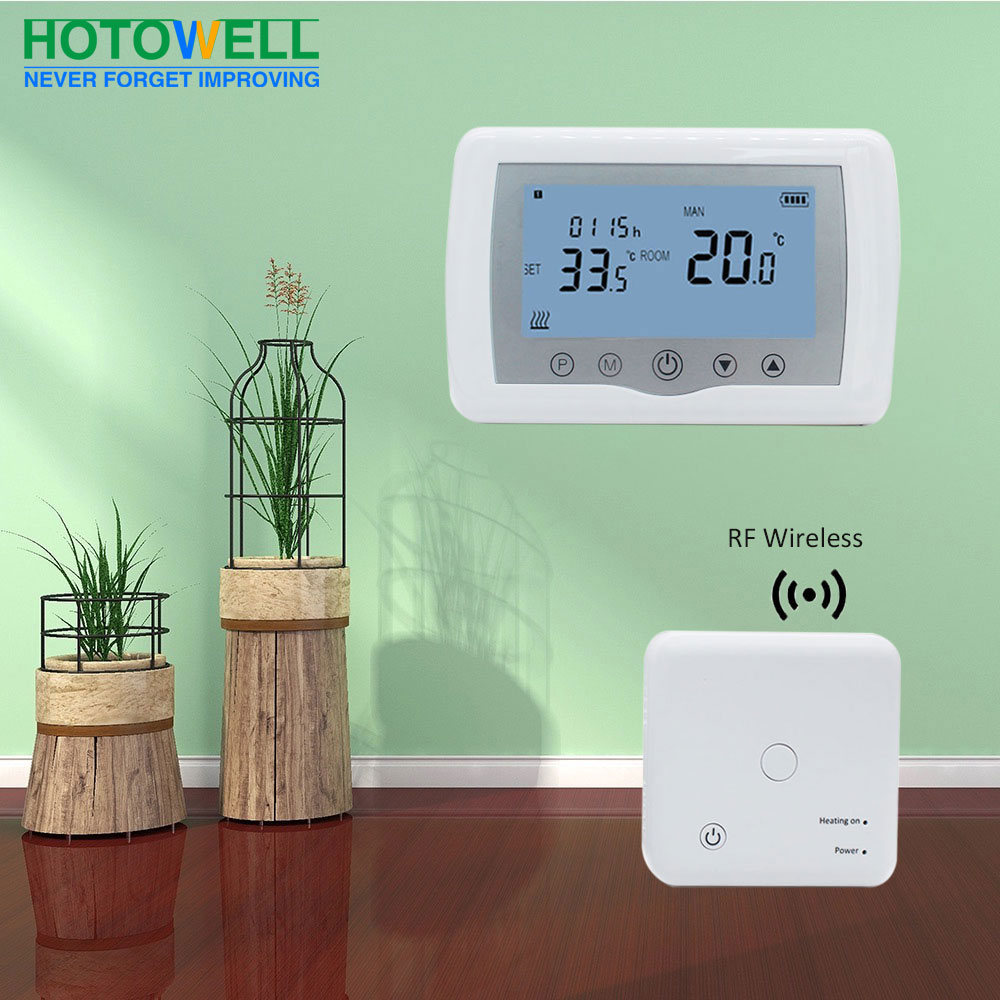

This smart thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time remotely at anytime anywhere.
* Large display can be clearly read with the background lighting.
* Easy to fit thermostat and receiver.
* Five buttons make it easy to use.
* 4 periods of each day programmable
* The display shows the set temperature as well as the measured temperature, time.
* Temperature display in degrees Celsius.
* The thermostat is supplied with a wall-fixing frame, base and a very compact receiver (surface-mounted).
>> Technical Data
Sender Power Supply - 2*AAA battery
Backlight - White
Receiver Load current - 230Vac/Max10A
Sensor - NTC 10K, 3950ohms at 25℃
Set Point Range - 5~35℃
Accuracy - ± 0.5℃ (step control by +0.5℃)
Ambient - 0~50℃
Protection Class - IP30
Relative Humidity - 85%
Housing - ABS to UL94-5 fire retardant plastic

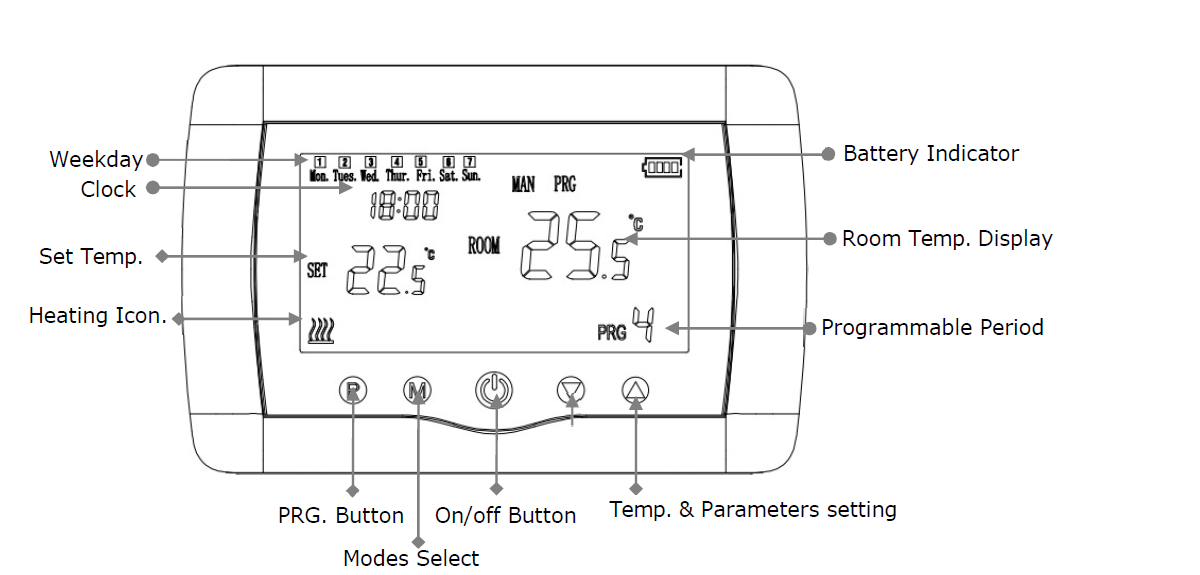

>> Display and Buttons

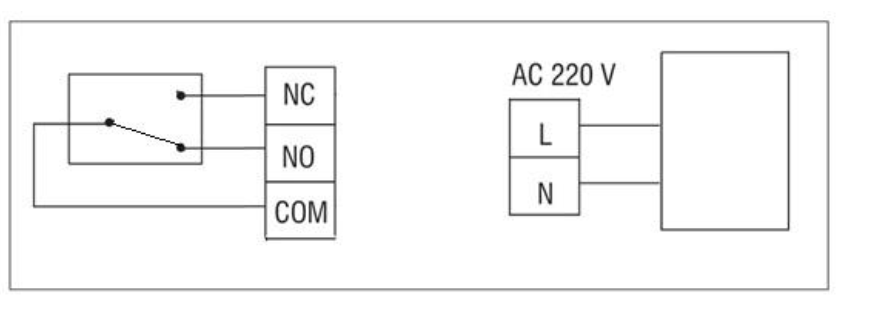

>> Wiring Diagram

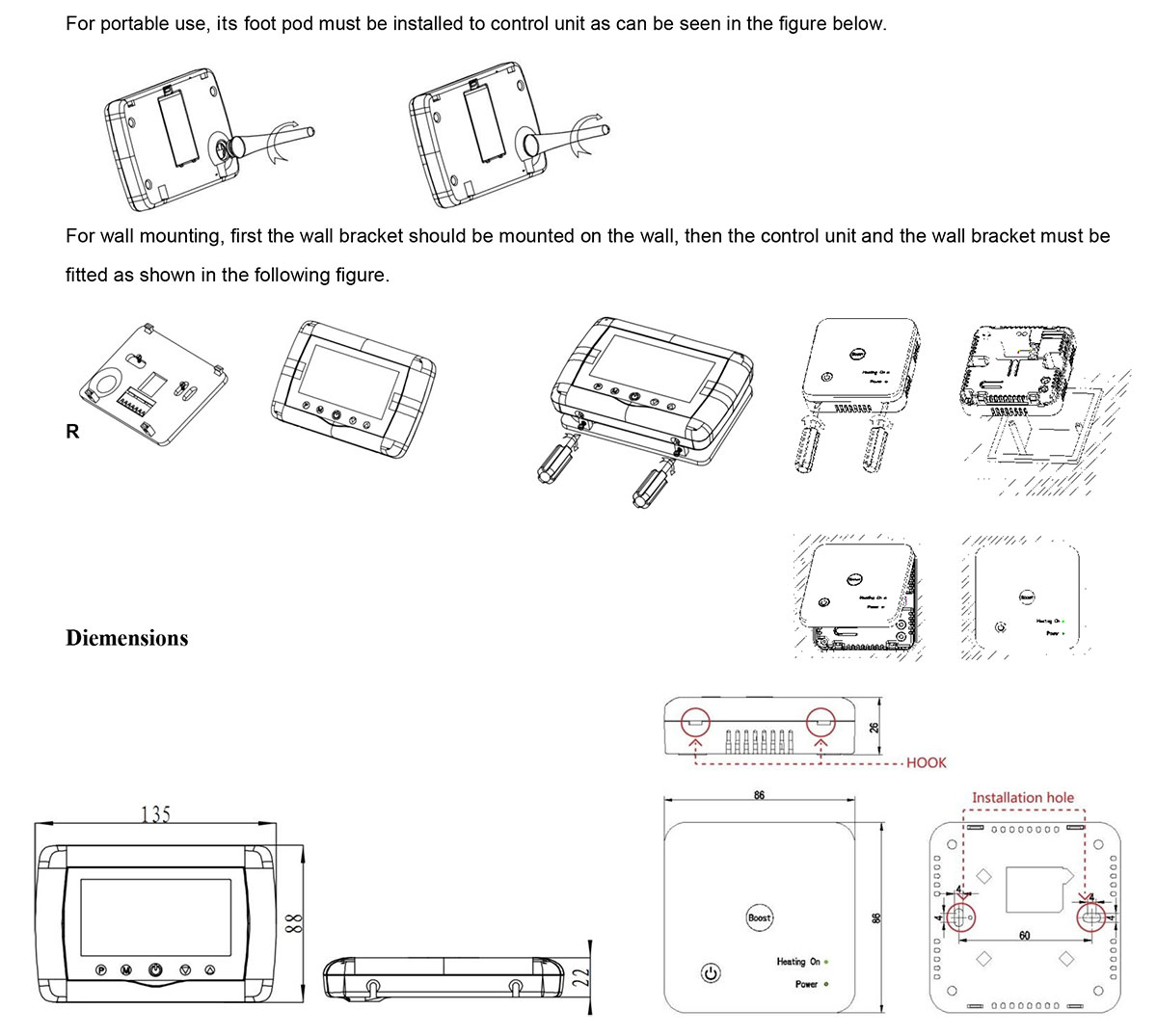

>> Installation and Dimension
