BACnet communication Room Thermostat Lcd Display Control Modulating Valve Hotowell WF01

Product ID : HTW-WF01-FC-MKB

Product Tags : Bacnet thermostat Fan coil thermostat Room thermostat smart thermostat

Product Attributes :

HTW-WF01-FC series smart fan coil thermostat is widely used to maintain an ideal room temperature.

Product Description

BACnet communication Room Thermostat Lcd Display Control Modulating Valve Hotowell WF01

>> General

HTW-WF01-FC-MKB

HTW-WF11-FC series smart fan coil thermostat is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices etc. to maintain an ideal room temperature.

>> Ordering Guide

HTW-WF01-FC-**	-2	2 pipe(tube) system	-W	Wi-Fi
Smart Fan Coil Thermostat	-4	4 pipe(tube) system	-B	BACnet
	-M	Modulating output	-P	Programmable
	-N	Modbus RTU communication	-E	External Temperature Sensor

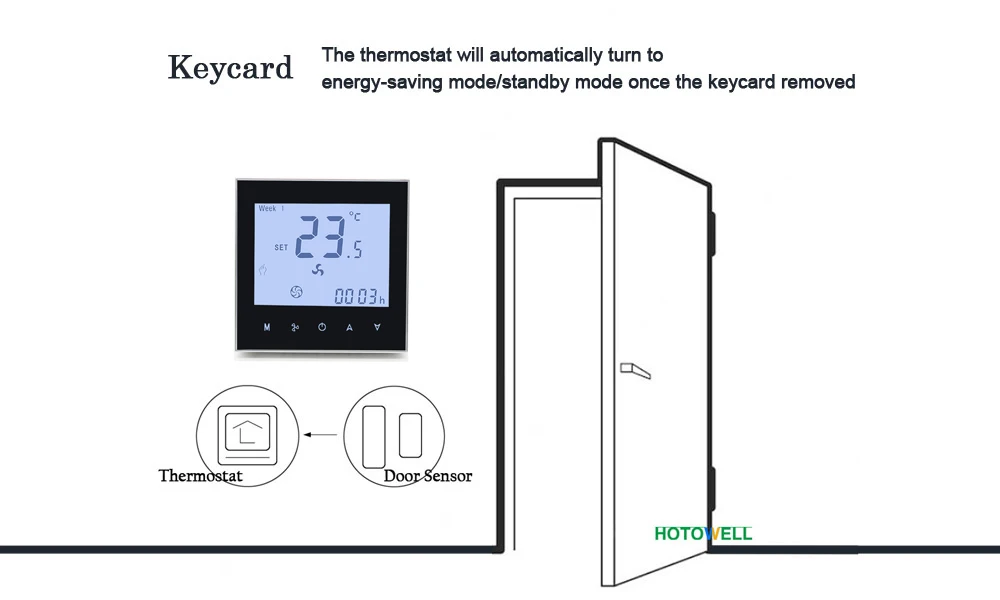

	-K	Key Card occupancy input	-24v	Power Supply with 24Vac

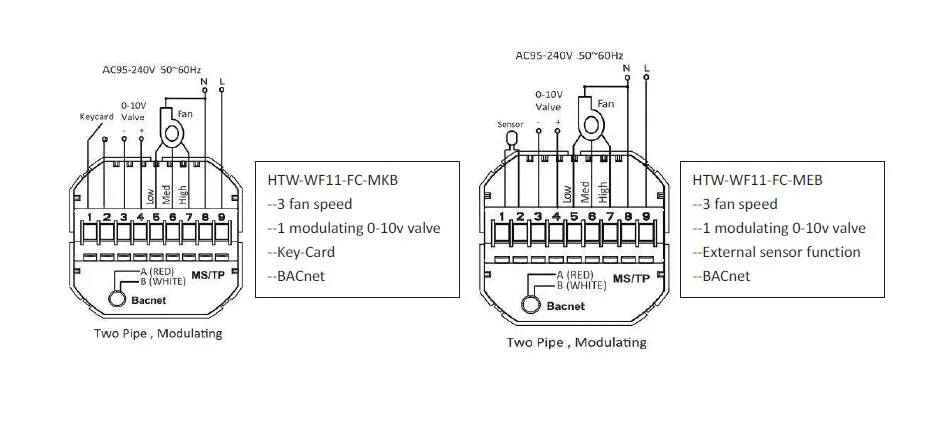

e.g. HTW-WF01-FC-MKB: refers to application: 1 modulating output, 3 fan speed, with Key-card and BACnet

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A (3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A (1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5~99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
