110Vac Hotowell HTW-T6861 Series Fan Coil Thermostat Non-programmable Temperature Controller
110Vac Hotowell HTW-T6861 Series Fan Coil Thermostat Non-programmable Temperature Controller 110Vac Hotowell HTW-T6861 Series Fan Coil Thermostat Non-programmable Temperature Controller 110Vac Hotowell HTW-T6861 Series Fan Coil Thermostat Non-programmable Temperature Controller 110Vac Hotowell HTW-T6861 Series Fan Coil Thermostat Non-programmable Temperature Controller 110Vac Hotowell HTW-T6861 Series Fan Coil Thermostat Non-programmable Temperature Controller

110Vac Hotowell HTW-T6861 Series Fan Coil Thermostat Non-programmable Temperature Controller

Product Tags : Fan coil thermostat
Product Attributes :

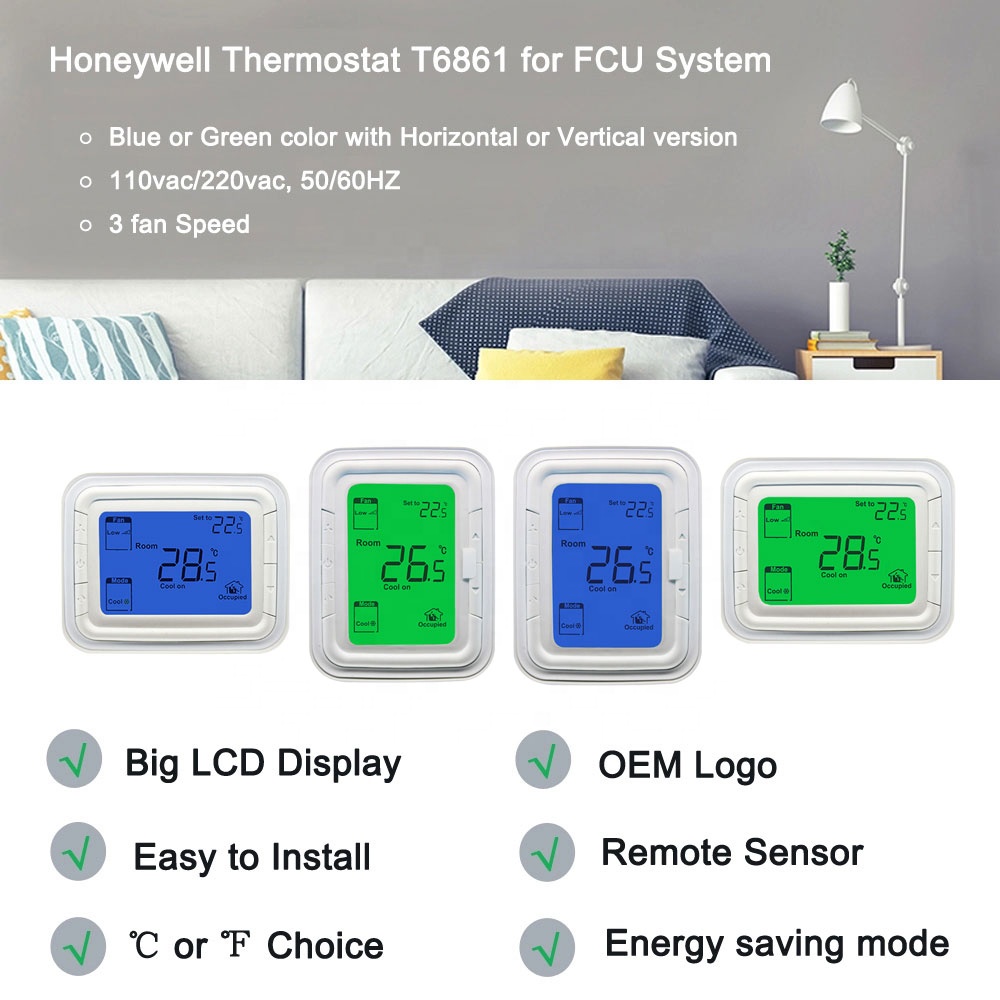

This digital thermostats are designed for application of 3-speed fan and valves in fan coil system. This model with total the same functions with Honeywell raw model T6861.

Include T6861H1WB, T6861H1WG, T6861H2WB, T6861H2WG, T6861V1WB, T6861V1WG, T6861V2WB, and T6861V2WG eight types Choice, could meet different requirements accordingly.
Product Description
Product Description



110Vac Hotowell HTW-T6861 Series Fan Coil Thermostat Non-programmable Temperature Controller



>> General





This digital thermostats are designed for application of 3-speed fan and valves in fan coil system. This model with total the same functions with Honeywell raw model T6861.
Include T6861H1WB, T6861H1WG, T6861H2WB, T6861H2WG, T6861V1WB, T6861V1WG, T6861V2WB, and T6861V2WG eight types Choice, could meet different requirements accordingly.





>>Features

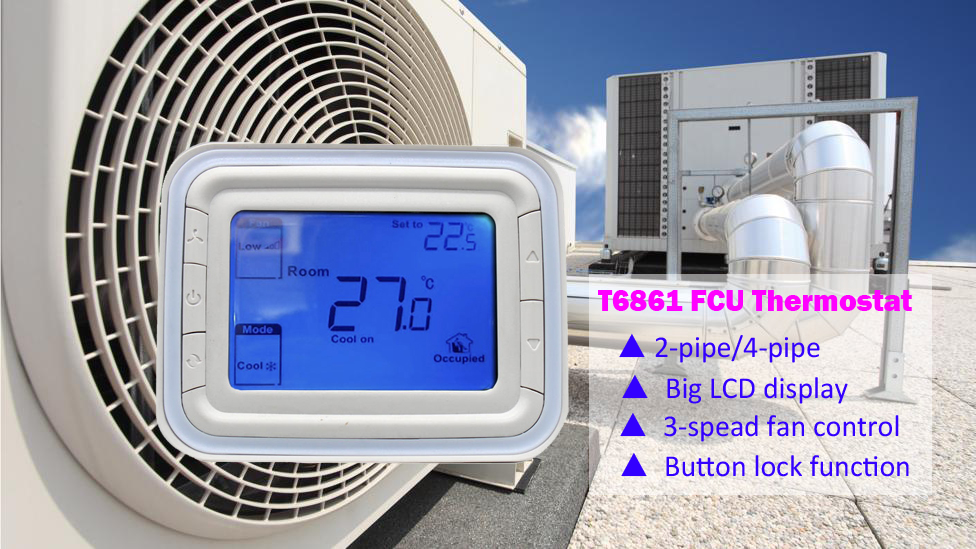

• Slim design, direct installation on 86 size box • Stylish and elegant blue/green backlight with blue/reen colour ring • 2-pipe/4-pipe integrated into one unit with easyconfiguration • Big LCD display with English and icons • Easy to install and set-up • Selectable room temperature or setpoint display • Manual or automatic fan speed selection • Remote temperature sensor • Energy saving mode activation by button press ordry contact (key card) • Adjustment of display room temperature • Temperature unit either oC or oF • User setting can be kept when power off • Freezing protection function available • Lock or unlock keys or part of keys in Installer Setup • Heat and cool setpoint limitation for energy saving

>>Ordering Guide

Power supply
110(+/-10%)VAC,220(+10%,-15%)VAC
Frequency
50/60HZ
Control algorithm
Pl, On/off output
Accuracy
+/- 1°C at 21 °C
Rating capacity
For 220V power supply :4( 2)A for fan load, 2(1)A for zone valve
Cycle times
100000
Setpoint range
10-32°C
Display range
0-37°C
Installation
Installed on 86x86mm junction box or US2X4 inch
Protection Class
P20
Environmental
Operation temperature-18~49°C
Conditions
Shipping temperature -35~65°C, Relative humidity 5-90%
>> Model Summary
HTW-51-1000
Horizontal/Vertical
White Frame Backlight
Time on/off
2-pipe/4-pipe
Power supply
Energy Saving
Ventilation
Manual/Automatic Fan
Remote Sensor
H2WB
Horizontal
Blue
Y
2\4
220
Y
Y
Y
Y
V2WB

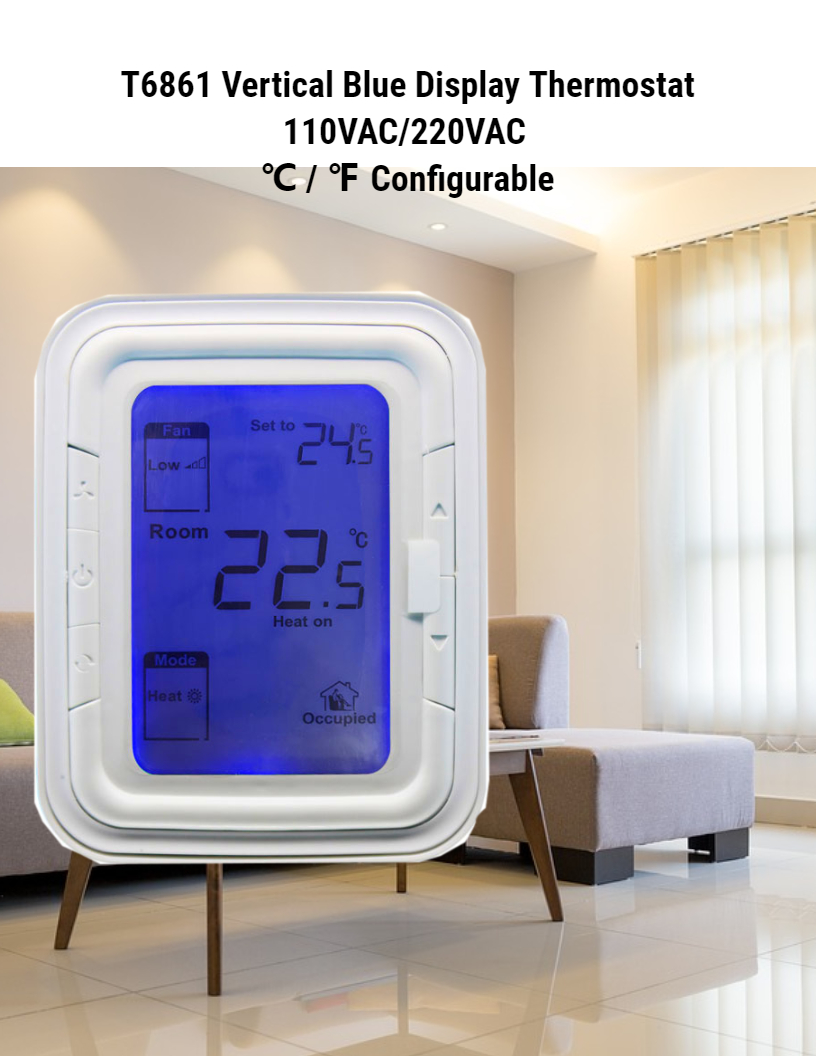

Vertical
Blue
Y
2\4
220
Y
Y
Y
Y
H2WG
Horizontal
Green
Y
2\4
220
Y
Y
Y
Y
V2WG
Vertical
Green
Y
2\4
220
Y
Y
Y
Y
H1WB
Horizontal
Blue
Y
2\4
110
Y
Y
Y
Y
V1WB
Vertical
Blue
Y
2\4
110
Y
Y
