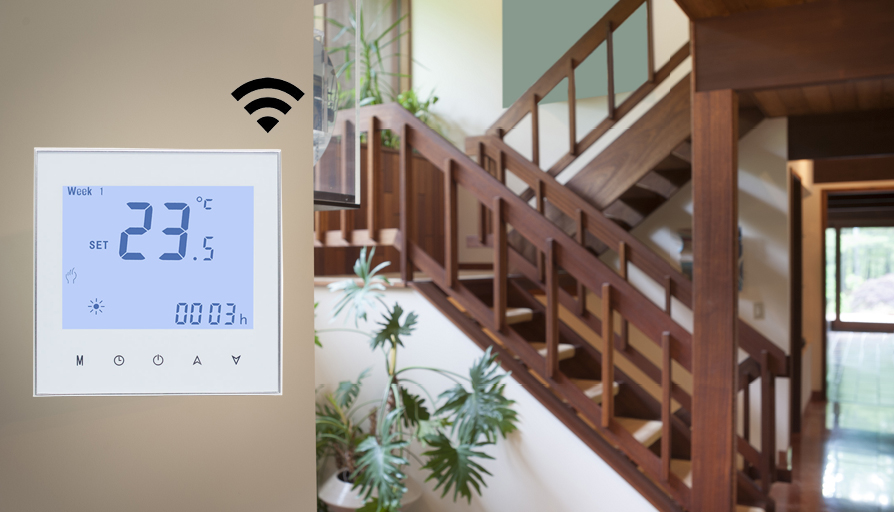

Top 10 Seller Air Conditioner Smart Wifi Thermostat for HVAC System
Top 10 Seller Air Conditioner Smart Wifi Thermostat for HVAC System Top 10 Seller Air Conditioner Smart Wifi Thermostat for HVAC System Top 10 Seller Air Conditioner Smart Wifi Thermostat for HVAC System Top 10 Seller Air Conditioner Smart Wifi Thermostat for HVAC System Top 10 Seller Air Conditioner Smart Wifi Thermostat for HVAC System

Top 10 Seller Air Conditioner Smart Wifi Thermostat for HVAC System

Product ID : HTW-WF01
Product Tags :
Product Attributes :

HTW-WF01 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

Product Description
Product Description

>> General

HTW-WF01 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or
Water/Gas Boiler systems.

>> Features

* 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew,     German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese,     Vietnamese, Arabic, Korean)
* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Easily Work with Amazon alexa, Google Assitant, IFTTT.
* Group Control in 1 App
* Fashion Sense of Science and Technology

* Reduces the costs saving by only heating and cooling your home when it's necessary.
* Allows you to adjust your home's temperature at anytime and anywhere.
* You can set up the whole week's temperature with your personal ideas.
* Extends the life of your HVAC system by alerting you when it's time to perform key maintenance tasks.

>> Specifications

Power Supply
95~240Vac, 50/60Hz
Sensor
NTC3950, 10k
Current Load
(-3A, -16A,-NV application)
Set-Point Range
5~35°C
Storage Temp
(-5~45°C)
Display Temp. Range
5~99°C
Power Consumption
<1.5W
Timing Error
<1%
Housing Material
PC+ABS(Fireproof)
Installation Box
EU or Standard Electric Box
Wires on Terminals
Wire 2x1.5mm2 or 1x2.5mm2
Protection Class
IP20
Operation Buttons
Capacitive Touch Buttons

>>  Dimensions and Display

>> Installation

*  Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can't get the system to turn ON in 5 minutes, you'll know the power is OFF.
* Take off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
*  Fix the installation plate onto the electric junction box with screws packed in the box.
*  Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)
