HVAC Automation Systems 24VAC Manifold Thermostatic Actuator
HVAC Automation Systems 24VAC Manifold Thermostatic Actuator HVAC Automation Systems 24VAC Manifold Thermostatic Actuator HVAC Automation Systems 24VAC Manifold Thermostatic Actuator HVAC Automation Systems 24VAC Manifold Thermostatic Actuator HVAC Automation Systems 24VAC Manifold Thermostatic Actuator

HVAC Automation Systems 24VAC Manifold Thermostatic Actuator

Product ID : HTW-TAV-01
Product Tags :
Product Attributes :

HTW-TAV01 Series thermal actuators are signed for controlling control valves in HVAC automation systems. The thermal actuator can be controlled  by 230Vac/24 Vac on/off control signal or PWM signal.

Product Description

>> Top Rated Floor Heating Parts

floor heating parts

>> General

HTW-TAV-01 Series thermal actuators are signed for controlling control valves in HVAC automation systems.

The thermal actuator can be controlled  by 230Vac/24 Vac on/off control signal or PWM signal.

The following figures illustrate the function principles of the thermal actuators.

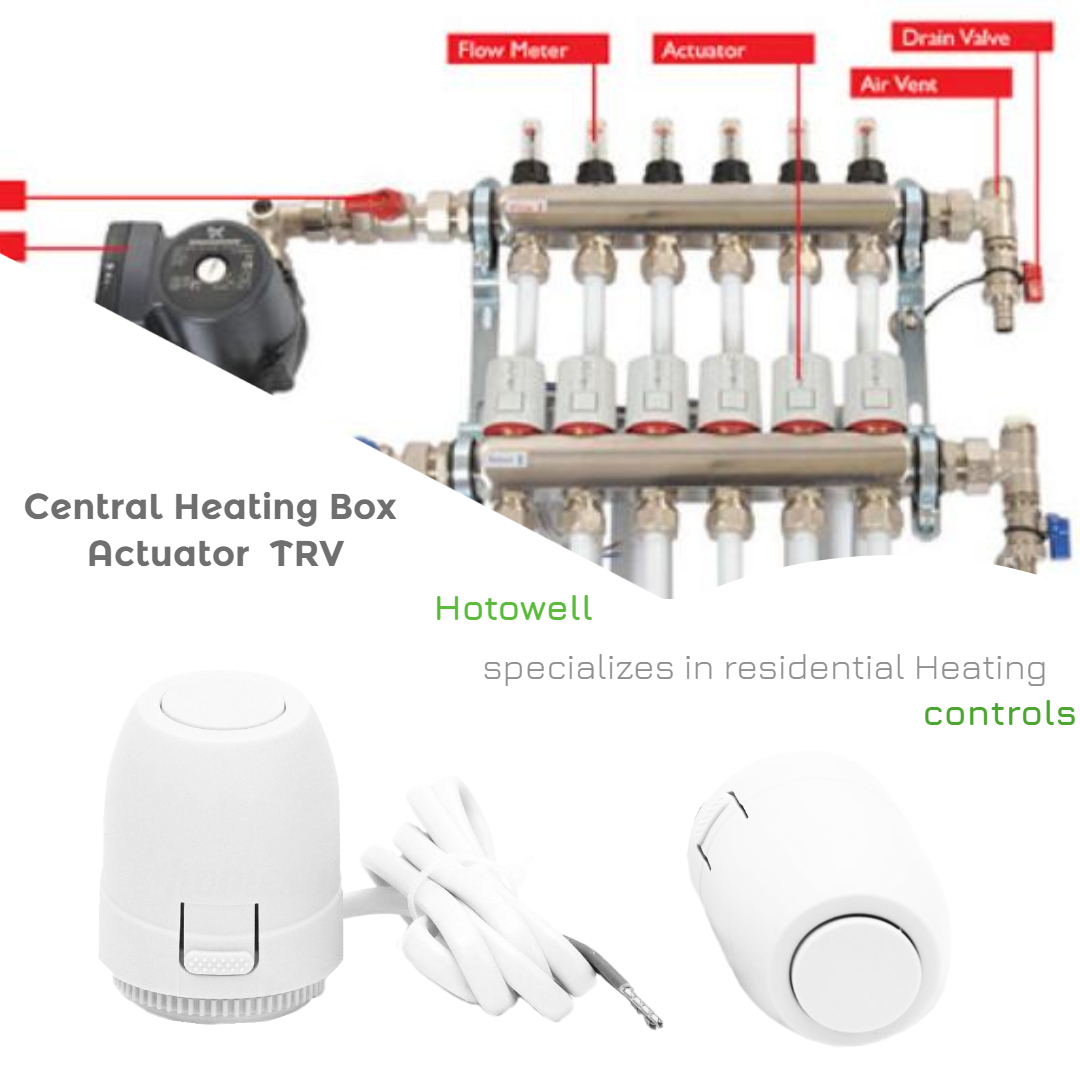

thermal Actuator Valve

 >> Specification

Power Supply  110/230V/24V, 50/60Hz
consumption 2 W
Operating current
50 mA
Start-up current
< 300 mA (max. min.)
Force
95…105 N
Stroke
 ≥4.5~5.0mm
Running time
approx. 180s (close open)
Mounting
by using an adapter ring (included)
Fluid temperature
0…100 °C
Ambient temperature
0…60 °C
Housing
  IP54, polyamide



>>Wiring Diagram


TRV Valve

>> Operation

HTW-TAV01 actuator works on the thermal expansion principle:

• moves actuator stem in one direction in case of heating of the actuator and

• moves actuator stem in another direction in case of no heating of the actuator

>> Installation




>>Certificate Approved



>>Company Profile



 >> FAQs

Q1: Do you supply OEM or ODM?

A: Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.

Q2: Which payments are acceptable?

A: We accept T/T,Paypal,Western Union.

Q3: How fast can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us +86 0592 6538262 or tell us in your email so that we will regard your inquiry priority.

Q4: Can I visit your factory?

A: Yes, of course you are warmly welcomed to visit our factory. Please kindly contact us in advance.

Q5: What is your terms of delivery?

A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.

Q6: What’s your production time?

A:Usually production time is 15 to 20 days for quantity below 1,000pcs.

Q7: Can I print my logo on the products, and customize my own designed packing?

A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.

Q8: How is your products' quality and warrenty?

A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.

Q9: What is your MOQ ?

A: 300PCS .

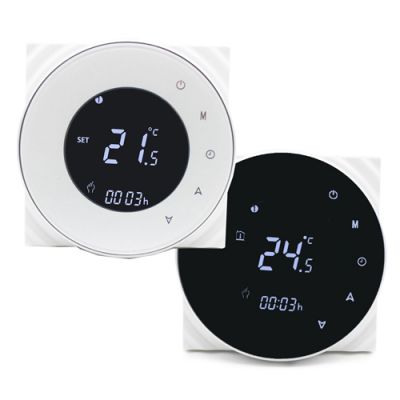

Wifi thermostat | Smart Thermostat | Home room thermostat
