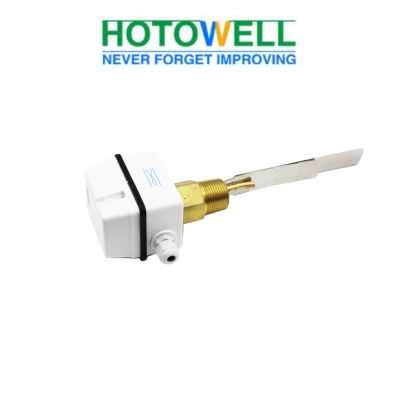

Water Flow Switch Paddle Control Stainless Steel Type Spdt Contacts
Water Flow Switch Paddle Control Stainless Steel Type Spdt Contacts Water Flow Switch Paddle Control Stainless Steel Type Spdt Contacts Water Flow Switch Paddle Control Stainless Steel Type Spdt Contacts Water Flow Switch Paddle Control Stainless Steel Type Spdt Contacts Water Flow Switch Paddle Control Stainless Steel Type Spdt Contacts

Water Flow Switch Paddle Control Stainless Steel Type Spdt Contacts

Product ID : HTW-AFS
Product Tags : Flow Switch
Product Attributes :

Water Flow Sensor Alarm Measurement Switch(HTW-AFS)
Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.

Product Description
Water Flow Switch Paddle Control Stainless Steel Type SPDT Contacts

Water Flow Switch Paddle Control Stainless Steel Type Spdt Contacts

>> General
Water Flow Sensor Alarm Measurement Switch(HTW-AFS)
Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.

>> Features

Flow control of water and normal media
Renovated SPDT micro switch ensures the reliable switch function
15(8A) 250VAC switch rating
IP65, class I enclosure
Setpoint adjustable
Stainless steel paddle
Brass/S.S material
Max. liquid temp 120ºC
Max. working pressure:1.5Mpa


Water Flow Switch Paddle Control Stainless Steel Type Spdt ContactsWater Flow Switch Paddle Control Stainless Steel Type Spdt Contacts

>> Specification

Type of operation                         On/Off, single-stage, micro switch

Output                                          SPDT  15(8A)  24/250Vac

Flow rates                                    See flow rate table

Flow rate setting adjustment       Internal srew

Sensing element                           Paddle

Liquid applications                        Hot, chilled, well, pool and sea water,

                                                     Brine or ethylene glycol

Parts material in contact with fluid    Brass

Paddle material                             Stainless steel

Liquid temperature                         -20C-120C

Permissible ambient temperature   -40C-85C

Permissible ambient humidity         10…90% RH, non-condensing

Cable entry                                       M18

Housing                                          Galvanized Steel Plate, ABS or PC cover

Protection                                      IP65

Color                                              White

Weight                                            1.0Kg


Water Flow Switch Paddle Control Stainless Steel Type Spdt Contacts
