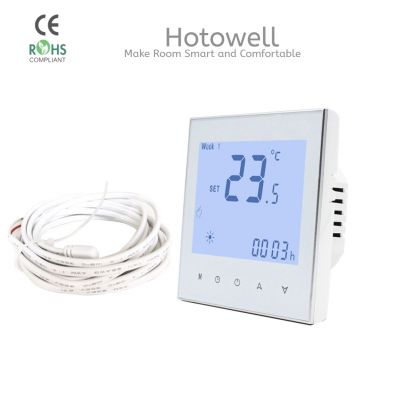

Water Floor Heating Thermostat Smart Thermostat Controller with LCD Screen WF01 Series

Product ID : HTW-WF01

Product Tags : Heating Thermostat Room thermostat Wifi thermostat smart thermostat

Product Attributes :

HTW-WF01 series heating thermostat can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

Product Description

Water Floor Heating Thermostat Smart Thermostat Controller with LCD Screen WF01 Series

>> General
HTW-WF01 series heating thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.


>> Ordering Guide

HTW-WF01- **
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF01-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
