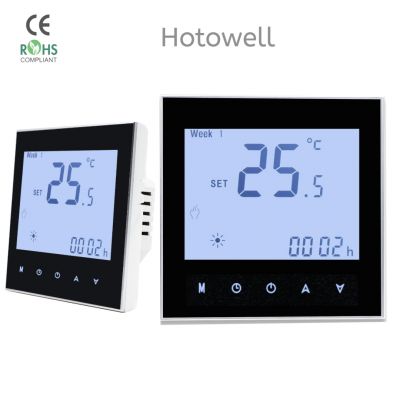

Smart Programmable Water Heating Thermostat Electric Underfloor Heating Thermostat Wifi Application

Smart Programmable Water Heating Thermostat Electric Underfloor Heating Thermostat Wifi Application

Product ID : HTW-WF01

Product Tags : Heating Thermostat smart thermostat

Product Attributes :

HTW-WF01 series Wifi thermostat can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

Product Description

Smart Programmable Water Heating Thermostat Electric Underfloor Heating Thermostat Wifi Application

>> General

HTW-WF01 series Wifi thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
It can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

>> Feature

* 17 Mainstreaming Languages synchronize in APP
* Snap-In Easy Installation
* Fit for EU & Standard Junction Electric Box
* Easily Work with Amazon Alexa, Google Assistant, and IFTTT.

>> Ordering Guide

HTW-WF01- **	Smart Wifi Thermostat
	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF01-3A refers to application:Water Heating, 3A, NC+NO+Com output terminals

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
