HTW-TV01 Electric Thermostatic 220Vac Actuator Heating Water 2 Way Thermal Valve
Product ID : HTW-TV01
Product Tags :
TRV actuator
Product Attributes :
HTW-TV01 series electric thermostatic valve is used to open or close the heating system pipeline to maintain a thermal roomtemperature. It is installed on the hot water pipe, and the valve is controlled to open or close via the signal send from thermostat. The thermostat sends a signal to open the thermal valve to heat the room via heat exchange from the heating media,like heating water. 3 sizes available for option: 2 way 1/2'’(DN15) 2 way 3/4'’(DN20) 2 way 1'’(DN25)
Product Description
Product Description
HTW-TV01 Electric Thermostatic 220Vac Actuator Heating Water 2 Way Thermal Valve
>> General
HTW-TV01 series electric thermostatic valve is used to open or close the heating system pipeline to maintain a thermal roomtemperature. It is installed on the hot water pipe, and the valve is controlled to open or close via the signal send from thermostat. The thermostat sends a signal to open the thermal valve to heat the room via heat exchange from the heating media,like heating water. 3 sizes available for option: 2 way 1/2'’(DN15) 2 way 3/4'’(DN20) 2 way 1'’(DN25)
HTW-TV01 series electric thermostatic valve is used to open or close the heating system pipeline to maintain a thermal roomtemperature. It is installed on the hot water pipe, and the valve is controlled to open or close via the signal send from thermostat. The thermostat sends a signal to open the thermal valve to heat the room via heat exchange from the heating media,like heating water. 3 sizes available for option: 2 way 1/2'’(DN15) 2 way 3/4'’(DN20) 2 way 1'’(DN25)

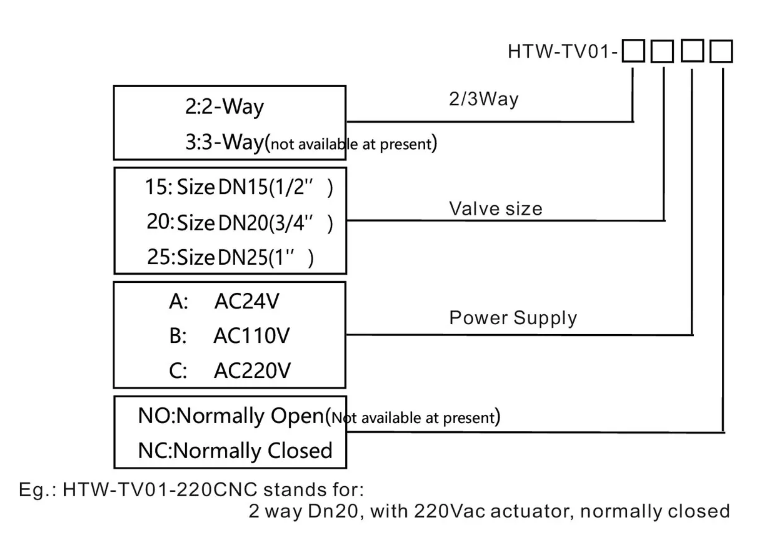

>> Order Guide

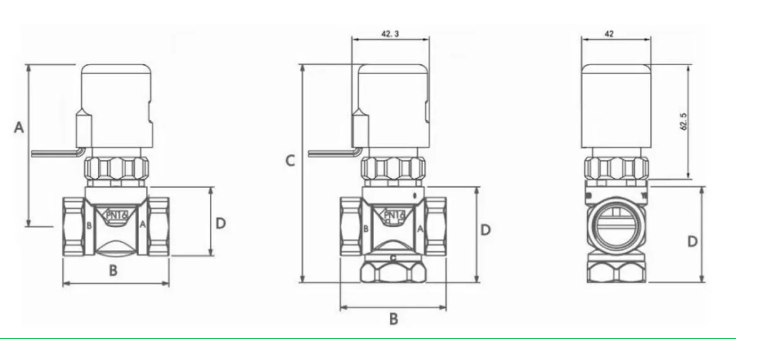

>> Dimension
