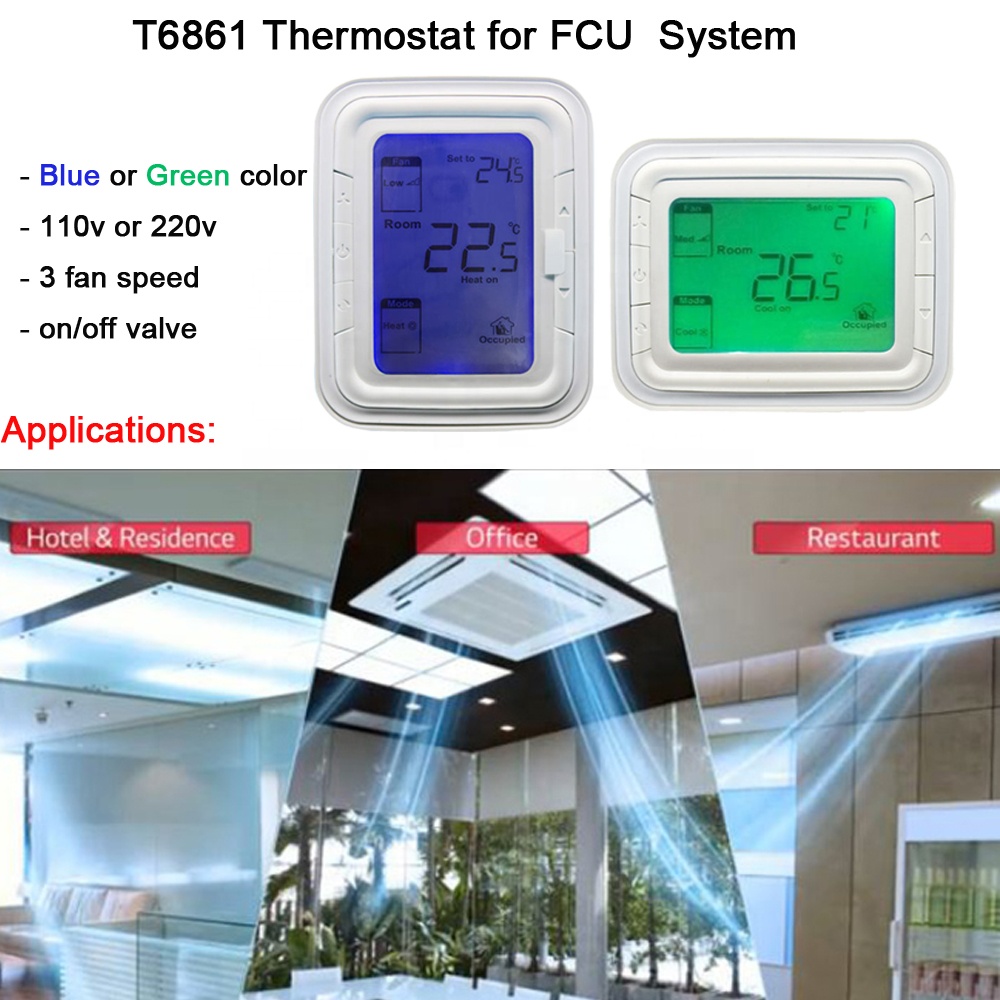

Slim Design Energy Saving 110Vac power supply HTW-T6861 Blue Green Color backlight Fan coil thermostat
Slim Design Energy Saving 110Vac power supply HTW-T6861 Blue Green Color backlight Fan coil thermostat Slim Design Energy Saving 110Vac power supply HTW-T6861 Blue Green Color backlight Fan coil thermostat Slim Design Energy Saving 110Vac power supply HTW-T6861 Blue Green Color backlight Fan coil thermostat Slim Design Energy Saving 110Vac power supply HTW-T6861 Blue Green Color backlight Fan coil thermostat Slim Design Energy Saving 110Vac power supply HTW-T6861 Blue Green Color backlight Fan coil thermostat

Slim Design Energy Saving 110Vac power supply HTW-T6861 Blue Green Color backlight Fan coil thermostat

Product ID : HTW-T6861
Product Tags : Fan coil thermostat
Product Attributes :

his digital thermostats are designed for application of 3-speed fan and valves in fan coil system. This model with total the same functions with Honeywell raw model T6861.Include T6861H1WB, T6861H1WG, T6861H2WB, T6861H2WG, T6861V1WB, T6861V1WG, T6861V2WB, and T6861V2WG eight types Choice, could meet different requirements accordingly.

Product Description
Product Description



Slim Design Energy Saving 110Vac power supply HTW-T6861 Blue Green Color backlight Fan coil thermostat



>> General

This digital thermostats are designed for application of 3-speed fan and valves in fan coil system. This model with total the same functions with Honeywell raw model T6861.
Include T6861H1WB, T6861H1WG, T6861H2WB, T6861H2WG, T6861V1WB, T6861V1WG, T6861V2WB, and T6861V2WG eight types Choice, could meet different requirements accordingly.

>>Features

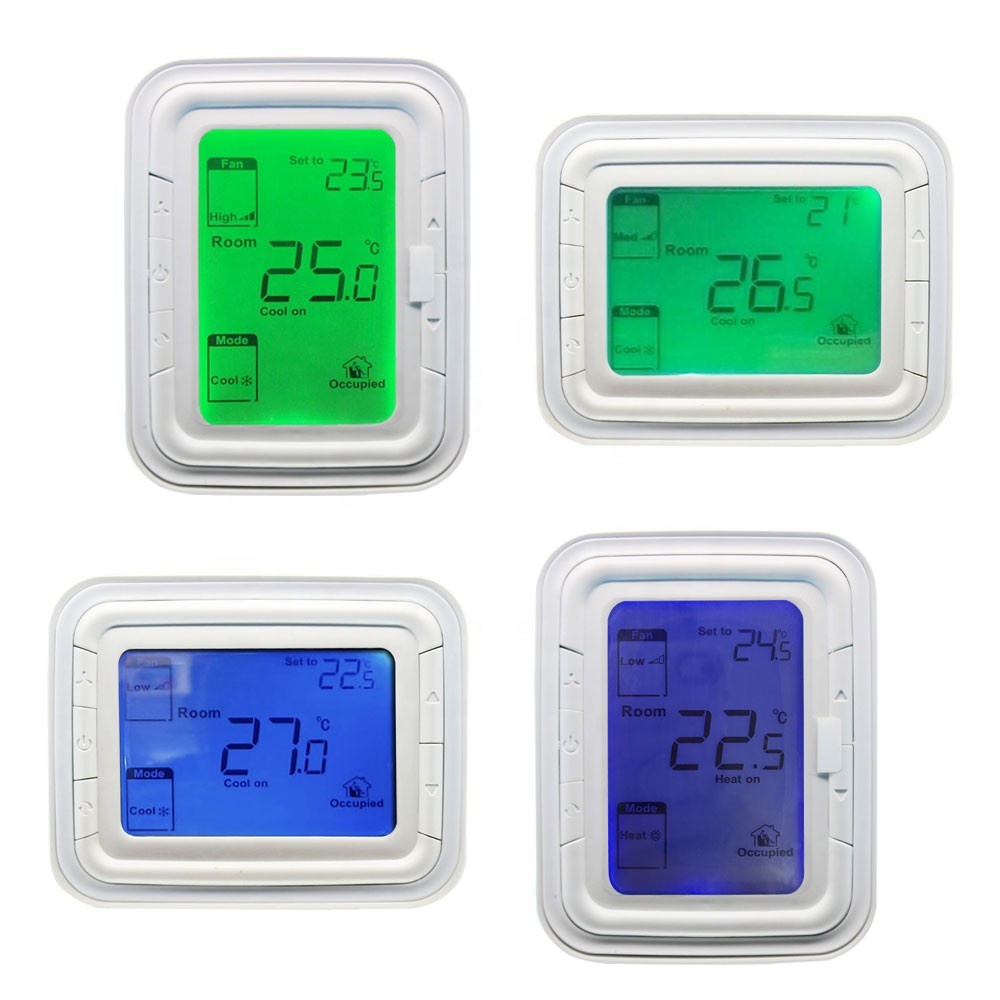

Slim design, direct installation on 86 size box • Stylish and elegant blue/green backlight with blue/reen colour ring • 2-pipe/4-pipe integrated into one unit with easyconfiguration • Big LCD display with English and icons • Easy to install and set-up • Selectable room temperature or setpoint display • Manual or automatic fan speed selection • Remote temperature sensor • Energy saving mode activation by button press ordry contact (key card) • Adjustment of display room temperature • Temperature unit either oC or oF • User setting can be kept when power off • Freezing protection function available • Lock or unlock keys or part of keys in Installer Setup • Heat and cool setpoint limitation for energy saving

>>Ordering Guide

Power supply
110(+/-10%)VAC,220(+10%,-15%)VAC
Frequency
50/60HZ
Control algorithm
Pl, On/off output
Accuracy
+/- 1°C at 21 °C
Rating capacity
For 220V power supply :4( 2)A for fan load, 2(1)A for zone valve
Cycle times
100000
Setpoint range
10-32°C
Display range
0-37°C
Installation
Installed on 86x86mm junction box or US2X4 inch
Protection Class
P20
Environmental
Operation temperature-18~49°C
Conditions
Shipping temperature -35~65°C, Relative humidity 5-90%
>> Model Summary

Tipical Wiring Diagram
