Fan Coil Unit Modern Touch Screen LCD Display Termostato Room Thermostat With External Sensor
Fan Coil Unit Modern Touch Screen LCD Display Termostato Room Thermostat With External Sensor Fan Coil Unit Modern Touch Screen LCD Display Termostato Room Thermostat With External Sensor Fan Coil Unit Modern Touch Screen LCD Display Termostato Room Thermostat With External Sensor Fan Coil Unit Modern Touch Screen LCD Display Termostato Room Thermostat With External Sensor Fan Coil Unit Modern Touch Screen LCD Display Termostato Room Thermostat With External Sensor

Fan Coil Unit Modern Touch Screen LCD Display Termostato Room Thermostat With External Sensor

Product ID : HTW-WF01-FC-MEN
Product Tags :
Product Attributes :

HTW-WF01-FC-MEN Modern Touch Screen Room Thermostats are designed to control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature as reaching the aim of comfort and saving energy. HTW-WF01-FC-MEN is microprocessor based thermostat with LCD display.

Product Description
Product Description



Fan Coil Unit Modern Touch Screen LCD Display Termostato Room Thermostat With External Sensor





Hotowell Smart Home Termostato Thermostat for Floor Heating Control



>> General


HTW-WF01-FC-MEN Modern Touch Screen Room Thermostats are designed to control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature as reaching the aim of comfort and saving energy. HTW-WF01-FC-MEN is microprocessor based thermostat with LCD display.

>> Specifications

Power Supply
100~240V, 50 ~60Hz
Sensor
NTC
Storage Temp.
-5 ~ 45 °C
Temp. Range
5 ~ 35°C
Power Consumption
< 1.5W
Timing Error
< 1%
Housing Material
PC +ABS ( Fireproof)
Installation Box
EU or Standard Electric Box
Shell Material:
PC (Fireproof)
Ambient Temp.:
0 ~ 45℃,5 ~ 95%RH(Non condensing)
Current Load:
Current Load:1A(Inductive), 2A(Resistance)

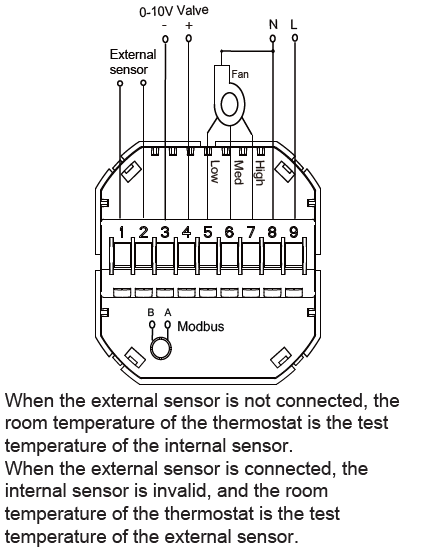

>> Wiring

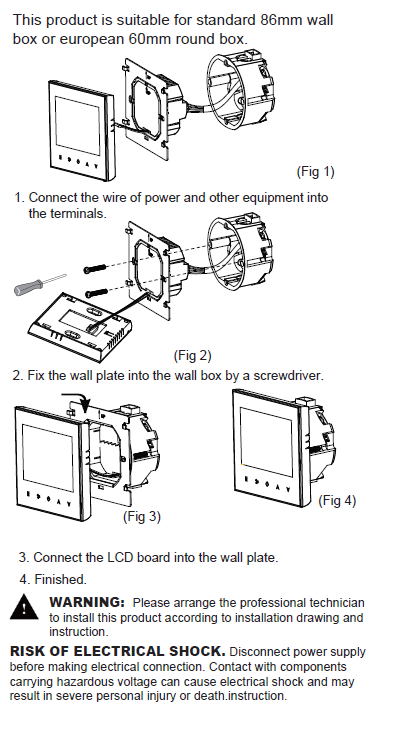

>> Installation
