T6865 Series 24Vac 2 Pipe Fan Coil Control Heat/Cool/Vent Mode Large LCD Digital Thermostat

Product ID : HTW-T6865

Product Tags : Fan coil thermostat

Product Attributes :

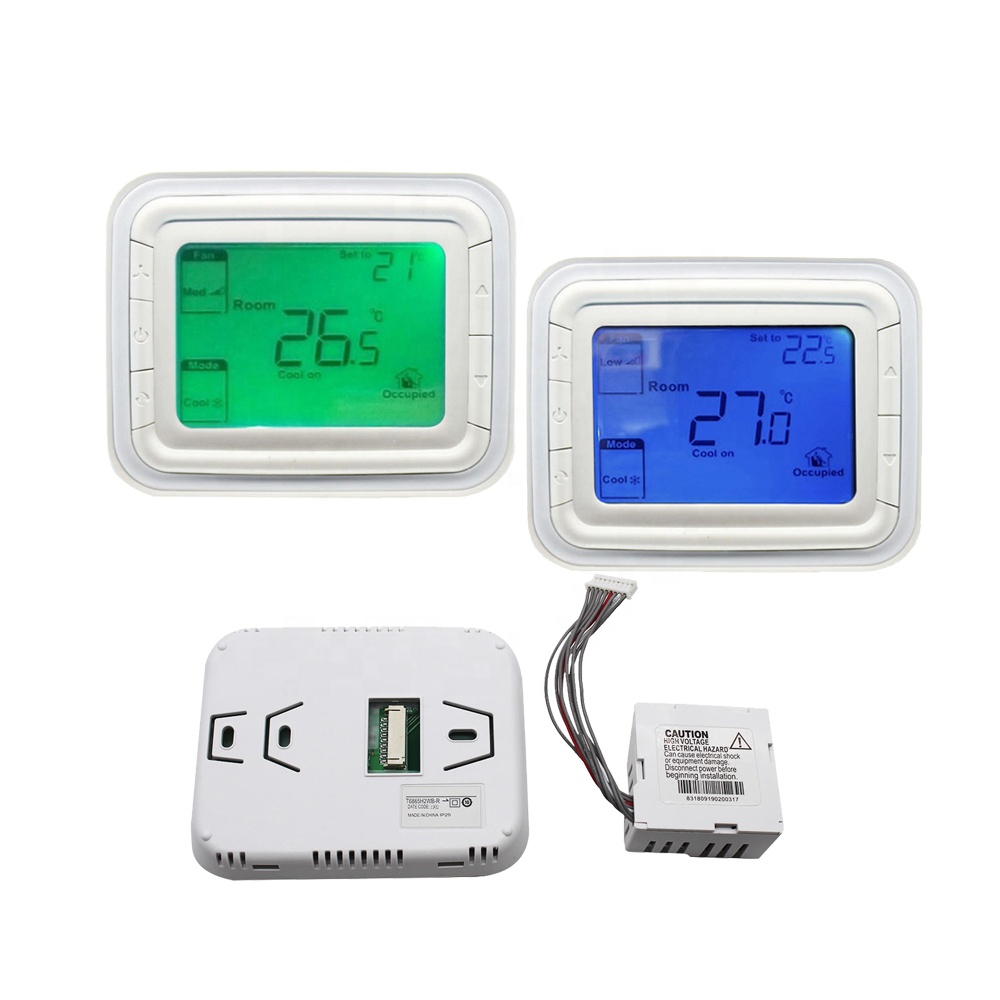

T6865 digital thermostats are designed for application of 3-speed fan and modulating valves in fan coil system. This model include Blue or Green color choice with Horizontal shape. With power 24vac 50/60Hz for modulating valve.Our this model with the same functions with Honeywell T6865, include choice of Remote sensor or Remote set-back.

Product Description

T6865 Series 24Vac 2 Pipe Fan Coil Control Heat/Cool/Vent Mode Large LCD Digital Thermostat

>> General
T6865 digital thermostats are designed for application of 3-speed fan and modulating valves in fan coil system. This model include Blue or Green color choice with Horizontal shape. With power 24vac 50/60Hz for modulating valve.Our this model with the same functions with Honeywell T6865, include choice of Remote sensor or Remote set-back.

>> Features
• 2-pipe cool only/heat only/manual changeover and
• 4-pipe manual or automatic changeover
• Ventilation mode
• Manual or automatic 3-speed fan control
• Water valve control
• Fan speed can be selected to automatic or manual
• 3-speed control mode.
• In ventilation mode, fan only support manual speed control.

>> Technical Specification

Power supply		24 (+/-10%) VAC
Frequency		50Hz
Modulating output		DC 0......10V, Support VC7900 series actuators
Fan load rating		230(+/-10%)VAC, 4(2)A
Relay life		100,000 times
Wiring		Max 16AWG
Sensing element		10K (@25℃) NTC
Control algorithm		PI, Modulating output
Accuracy		+/-1℃ at 21℃
Setpoint range		10~32℃
Display range		0~37℃
Protection Class		IP20 Operation temperature
Installation:		Installed on 86×86mm box or 3×3inch box
