Smart WI-FI Programmable Thermostat  Temperature Controller HTW-FT03-FC-2.4K
Smart WI-FI Programmable Thermostat  Temperature Controller HTW-FT03-FC-2.4K Smart WI-FI Programmable Thermostat  Temperature Controller HTW-FT03-FC-2.4K Smart WI-FI Programmable Thermostat  Temperature Controller HTW-FT03-FC-2.4K Smart WI-FI Programmable Thermostat  Temperature Controller HTW-FT03-FC-2.4K Smart WI-FI Programmable Thermostat  Temperature Controller HTW-FT03-FC-2.4K

Smart WI-FI Programmable Thermostat Temperature Controller HTW-FT03-FC-2.4K

Product ID : HTW-FT03-FC-2.4K
Product Tags :
Product Attributes :

HTW-FT03 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals,Offices and etc. to main an ideal room temperature purpose.
Which include 2 pipe or 4 pipe models with Wifi or Modbus function choice.

Product Description
Product Description

Smart WI-FI Programmable Thermostat 3 Speed Fan Temperature Controller FT03-FC


>> General

HTW-FT03 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals,Offices and etc. to main an ideal room temperature purpose.
Which include 2 pipe or 4 pipe models with Wifi or Modbus function choice.


>> Features


*17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian, Turkey, Hebrew, German,ltaian, Japanese,
French, Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean)
*Snap-ln Easy Installation
*Fit for EU & Standard Junction Electric Box
*Easily Work with Amazon Echo, Google Home, Tmall Genie, IFTTT
*Group Control in 1 App

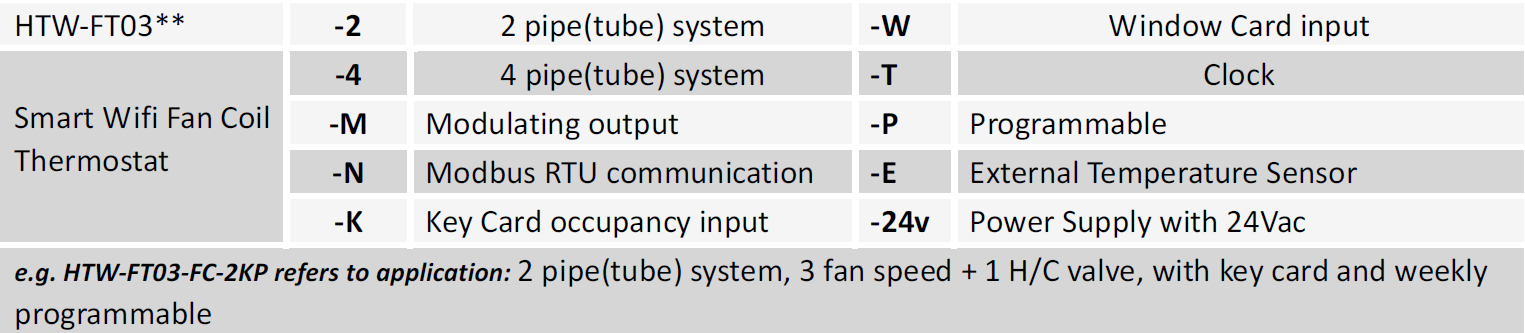

Ordering Guide

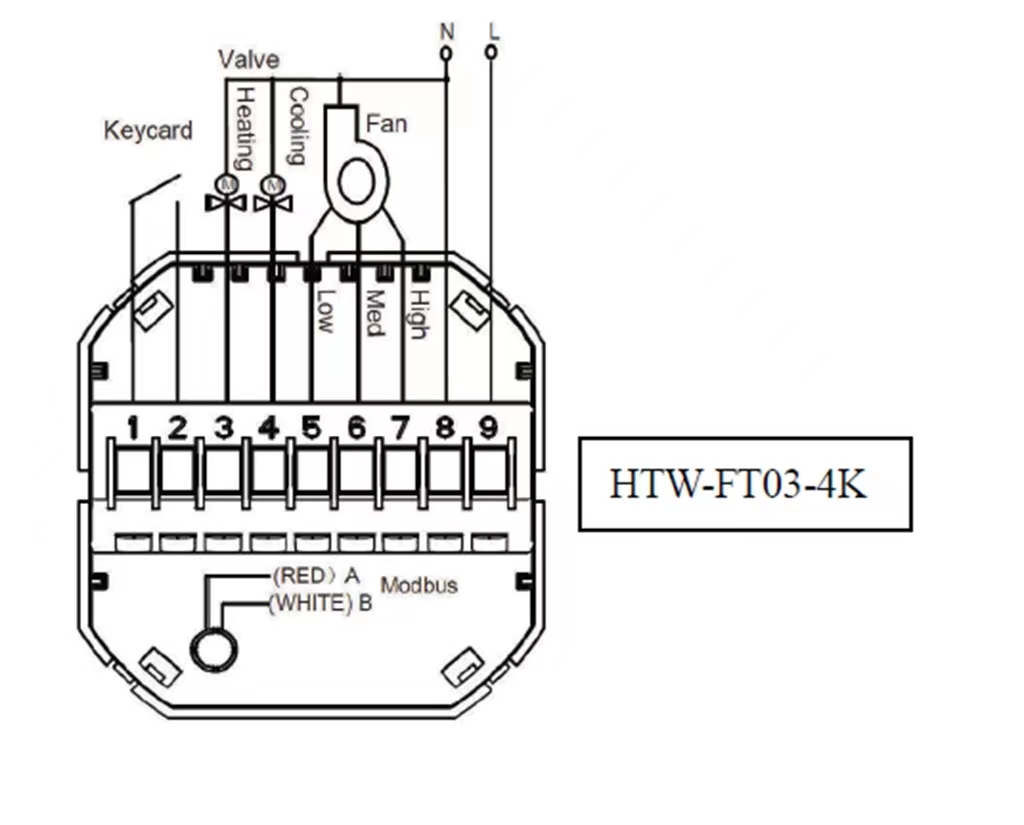

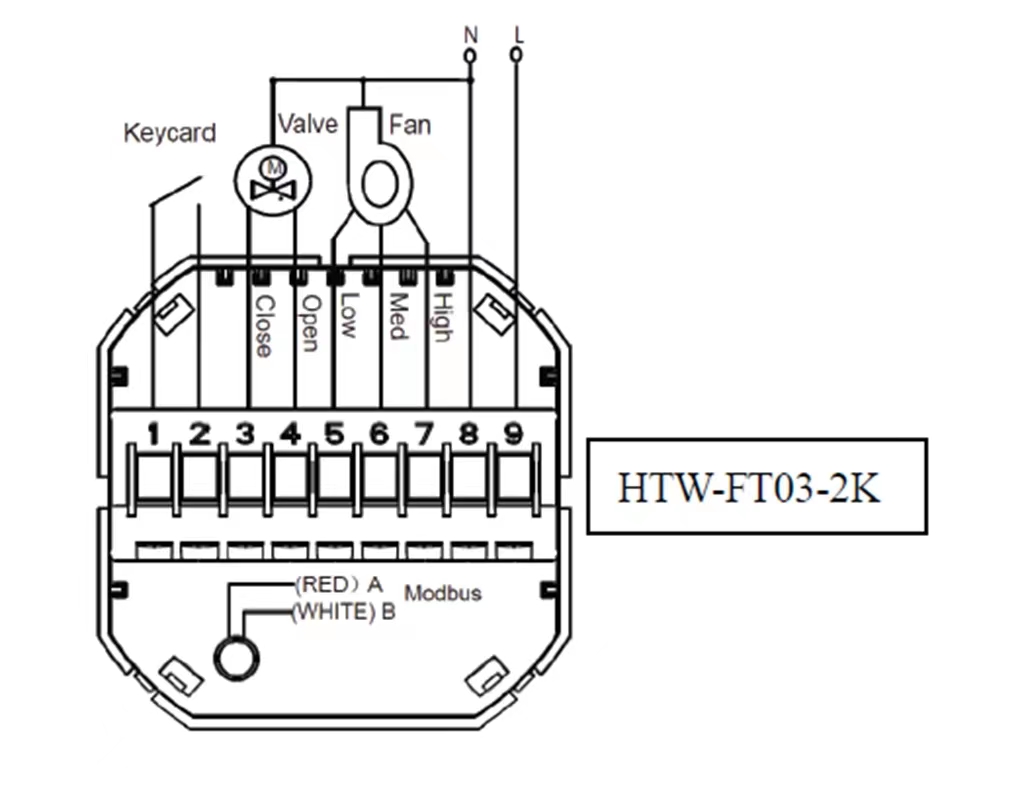

Typical Wiring
Specification
Power supply
95~240Vac,50/60Hz
Sensor
NTC3950,10K
Current Load
Fan relay 5A(3A-inductive)
Temperature Accuracy
±0.5℃ or ±1F
Valve Relay 3A(1A-inductive)
Set-Point Range
5~99℃
Power Consumption
<1.5W
Timing Error
<1%
Housing Matertial
PC+ABS(Fireproof)
Installation Box
EU or Standard Electric Box
Wires on Terminals
Wire 2*1.5 mm² or 1*2.5 mm²
Protection Class
IP20
Operating Buttons
Capacitive Touch Buttons
Installation
Packing & Delivery
