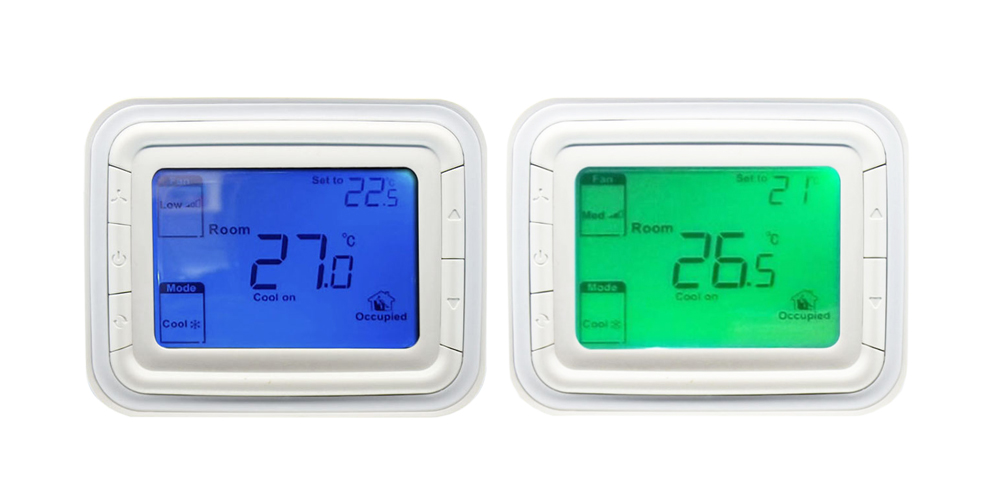

Hotel Digital Thermostat Temperature Controller Smart Fan Coil Thermostat Fit for 86 Size Box

Product ID : HTW-T6865

Product Tags : Fan coil thermostat hotel thermostat smart thermostat

Product Attributes :

T6865 digital thermostats are designed for the application of 3-speed fan and modulating valves in fan coil system.

Product Description

Hotel Digital Thermostat Temperature Controller Smart Fan Coil Thermostat Fit for 86 Size Box

>> GeneralT6865 digital thermostats are designed for the application of 3-speed fan and modulating valves in fan coil system.
Including:
* 2-pipe cool only/heat only/manual changeover
Ventilation mode
Manual or automatic 3-speed fan control
modulating valve control
* Fan speed can be selected to automatic or manual 3-speed control mode.
* In ventilation mode, fan only support manual speed control.

>> Technical Specification

Power supply		24 (+/-10%) VAC
Frequency		50Hz
Modulating output		DC 0-10V, Support VC7900 series actuators
Fan load rating		230(+/-10%)VAC, 4(2)A
Relay life		100,000 times
Wiring		Max 16AWG
Sensing element		10K (@25℃) NTC
Control algorithm		PI, Modulating output
Accuracy		+/-1℃ at 21℃
Setpoint range		10~32℃
Display range		0~37℃
Protection Class		IP20
Installation		Installed on 86×86mm box or 3×3inch box
