Digital Thermostat Room Temperature Controller Thermostat HVAC Central Air Conditioner

Product ID : HTW-T6861

Product Tags : Fan coil thermostat Room thermostat smart thermostat

Product Attributes :

This digital thermostat is designed for the application of a 3-speed fan and valves in a fan coil system.

Product Description

Digital Thermostat Room Temperature Controller Thermostat HVAC Central Air Conditioner

>> General

This digital thermostat is designed for the application of a 3-speed fan and valves in a fan coil system. There are eight sub-models according to the different voltage and direction, that could meet different requirements accordingly. Please confirm the right model based on your needs or contact us directly.

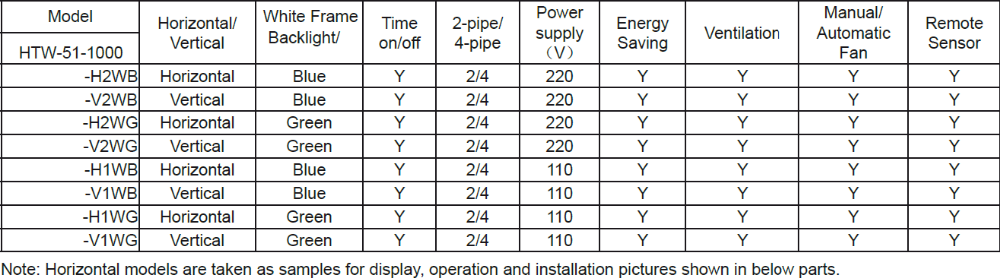

>> Ordering Guide

>> Specification

Power supply		110(+/-10%)VAC, 220(+10%,-15%)VAC
Frequency		50/60HZ
Control algorithm		Pl, on/off output
Accuracy		+/- 1°C at 21 °C
Rating capacity		For 220V power supply: 4( 2)A for fan load, 2(1)A for zone valve
Cycle times		100000
Setpoint range		10-32°C
Display range		0-37°C
Installation		Installed on 86x86mm junction box or US2X4 inch
Protection Class		IP20
Environmental		Operation temperature-18~49°C
Conditions		Shipping temperature -35~65°C, Relative humidity 5-90%
