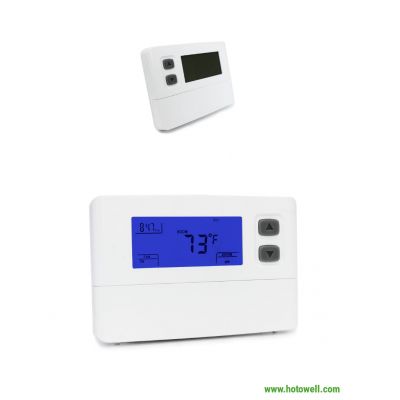

Ac Thermostat High-Quality Digital Thermostat Air Conditioning Thermostat

Product ID : HTW-T6861

Product Tags : Fan coil thermostat Room thermostat smart thermostat

Product Attributes :

This digital thermostat is designed for the application of a 3-speed fan and valves in the fan coil system

Product Description

Ac Thermostat High-Quality Digital Thermostat Air Conditioning Thermostat

>> General

This digital thermostat is designed for the application of a 3-speed fan and valves in the fan coil system.
Including:
• 2-pipe cool only/heat only/manual changeover
• 4-pipe manual or automatic changeover
• Ventilation mode
• Manual or automatic 3-speed fan control
• Water valve control

>> Technical Specification

Power supply	110(+/-10%)VAC, 220(+10%,-15%)VAC
Frequency	50/60HZ
Control algorithm	Pl, On/Off output
Accuracy	+/- 1°C at 21 °C
Rating capacity	For 220V power supply : 4(2)A for fan load, 2(1)A for zone valve
Cycle times	100000
Setpoint range	10-32°C
Display range	0-37°C
Installation	Installed on 86x86mm junction box or US 2X4 inch
Protection Class	IP20
Environmental	Operation temperature-18~49°C
Conditions	Shipping temperature -35~65°C, Relative humidity 5-90%
