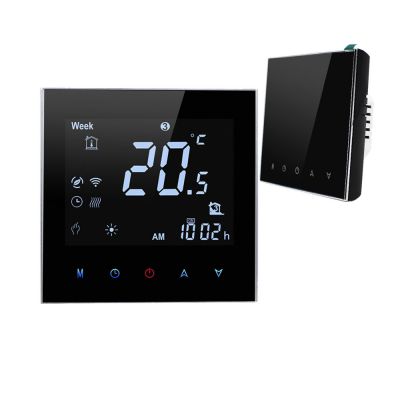

Room Heating/Cooling Smart Best House WiFi Thermostat
Smart House WiFi Thermostat
-WiFi connection, Tuya smartlife App control
-Heating/cooling Fancoil system
-2 pipe or 4 pipe
-Negative LCD Display
-Touch screen
- 3 speed fan control
-On/Off motorized valve control
Room Heating/Cooling Smart Best House WiFi Thermostat
>> General
HTW-EB-FC series fan coil thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
>> Ordering Guide
| HTW-EB-FC- ** |
-2
|
2 pipe(tube) system | -W | Wi-Fi Connection |
|
-4
|
4 pipe(tube) system | -24 | 24vac power supply | |
| e.g. HTW-EB-FC-2W refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with WiFi Connection. |
||||
>> Specifications
| Power Supply | 95~240Vac, 50/60Hz | Sensor | NTC3950, 10K |
| Current Load | Fan Relay 5A(-3A-inductive) | Temperature Accuracy | ±0.5°C |
| Valve Relay 3A(1A -inductive) | Set-Point Range | 5~35°C | |
| Storage Temp. | -5 ~ 45 °C | Display Temp. Range | 5 ~ 99°C |
| Power Consumption | < 1.5W | Timing Error | < 1% |
| Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
| Protection Class | IP20 | Operating Buttons | Capacitive Touch Buttons |
>> Installation
* Make sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can't get the system to turn ON in 5 minutes, you'll know the power is OFF.
* Take off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.
* Fix the installation plate onto the electric junction box with screws packed in the box.
* Fasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)
>> Company Profile
>> FAQs
|
Q1: Do you supply OEM or ODM? |
|
A: Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback. |
|
Q2: Which payments are acceptable? |
|
A: We accept T/T,Paypal,Western Union. |
|
Q3: How fast can I get the quotation? |
|
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us +86 0592 6538262 or tell us in your email so that we will regard your inquiry priority. |
|
Q4: What’s your production time? |
|
A:Usually production time is 15 to 20 days for quantity below 1,000pcs. |
