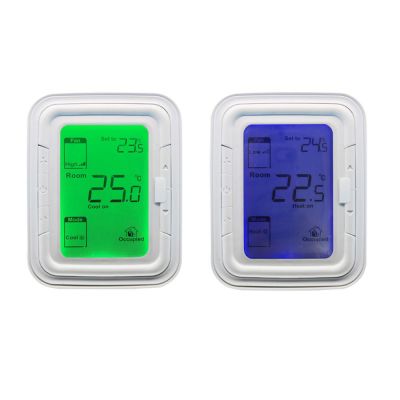

Programmable Wireless Digital Heating Thermostat For Boiler
This smart thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time remotely at anytime anywhere.
Programmable Wireless Digital Heating Thermostat For Boiler
>> General
This smart thermostat has been developed to be able to switch electric and conventional heating systems on and off using a set temperature and time remotely at anytime anywhere.
>> Feature
* Large display can be clearly read with the background lighting.
* Easy to fit thermostat and receiver.
* Five buttons make it easy to use.
* 4 periods of each day programmable
* The display shows the set temperature as well as the measured temperature, time.
* Temperature display in degrees Celsius.
* The thermostat is supplied with a wall-fixing frame, base and a very compact receiver (surface-mounted).
>> Technical Data
|
Sender Power Supply - 2*AAA battery |
Backlight - White |
|
Receiver Load current - 230Vac/Max10A |
Sensor - NTC 10K, 3950ohms at 25℃ |
|
Set Point Range - 5~35℃ |
Accuracy - ± 0.5℃ (step control by +0.5℃) |
|
Ambient - 0~50℃ |
Protection Class - IP30 |
|
Relative Humidity - 85% |
Housing - ABS to UL94-5 fire retardant plastic |
>> Display and Buttons
>> Wiring Diagram
>> Installation and Dimension
