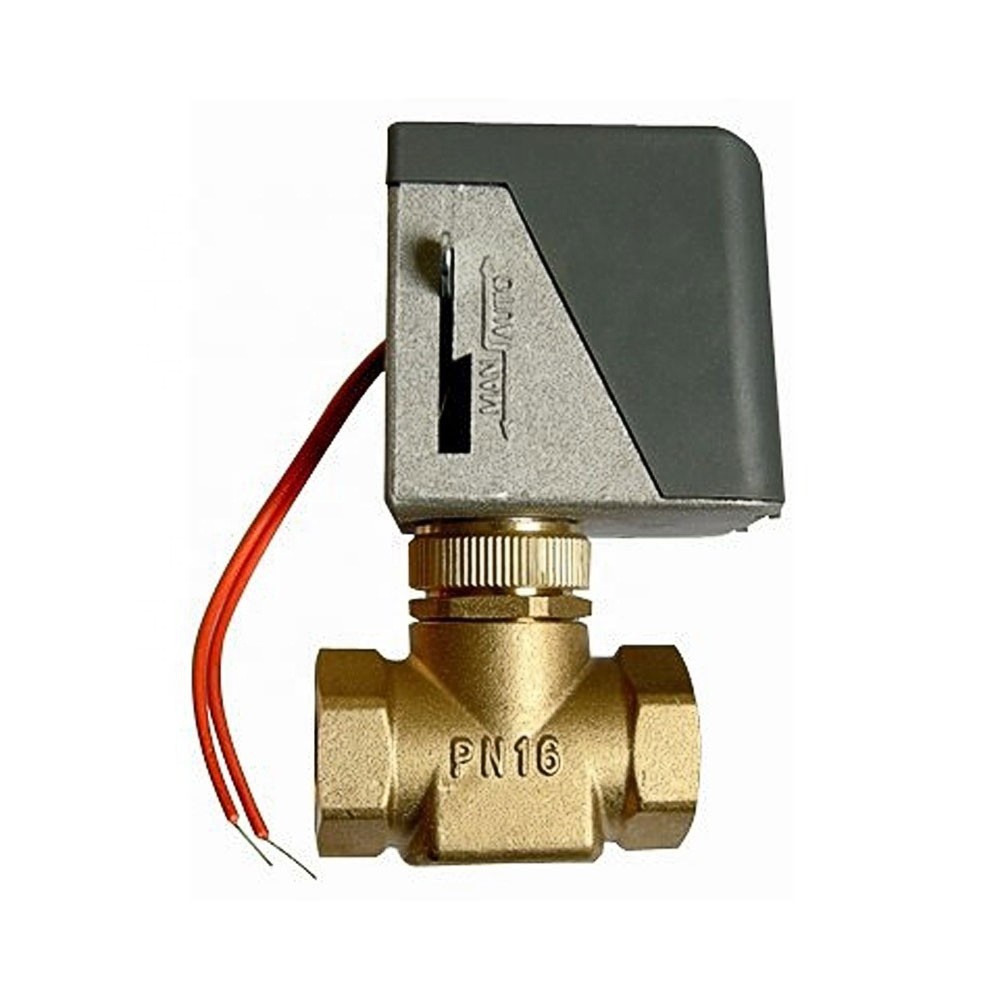

Product ID : HTW-V71
Product Attributes :

HTW-V71 Series Motorized Ball Valves are assembled with a force of actuator from 8Nm,16Nm,20Nm, to 24Nm with valve body sized from G1(DN25) to G2(DN50). With power supply optional:AC24±10%, 50/60Hz or AC220±10%, 50/60Hz, whose control signal can be customized as ON/OFF, 0(2)~10VDC or 4~20mA, with or without non-voltage feedback contact.

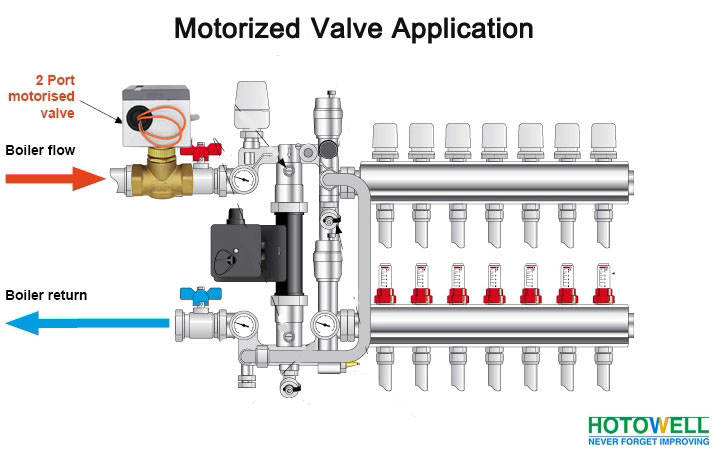

They are widely used in Heating, Air-Conditioning, Refrigeration, and Building Auto-Control system. With their precisely adjusting of the medium flow rate, this series ball valves accordingly control temperature, humidity, pressure for an Energy-Saving purpose.

Product Description
Product Description





>> General

HTW-71 Series Motorized Ball Valves are assembled with a force of actuator from 8Nm,16Nm,20Nm, to 24Nm with valve body sized from G1(DN25) to G2(DN50). With power supply optional:AC24±10%, 50/60Hz or AC220±10%, 50/60Hz, whose control signal can be customized as ON/OFF, 0(2)~10VDC or 4~20mA, with or without non-voltage feedback contact.
They are widely used in Heating, Air-Conditioning, Refrigeration, and Building Auto-Control system. With their precisely adjusting of the medium flow rate, this series ball valves accordingly control temperature, humidity, pressure for an Energy-Saving purpose.



>> Actuator Features

¤Equal percentage flow, valve body overall design, zero leaking;
¤600Kpa close off pressure differential, PN1.6 valve pressure;
¤4 directions actuator installed in, easy to wire and maintenance;
¤Built-In two floating auxiliary switches, equipped with auto power shut as properly positioned ;
¤Actuator easily mounted/dismounted after pipe mounted completely;
¤Eliminate reverse flow slam and water hammer.

>> Valve Body Features

¤Valve body size:G1(DN25)-G2(DN50);
¤Connection: G/BSP thread;
¤Medium: cold or hot water or 60% glycol;
¤Control Signal: On/Off or 0(2)~10VDC or 4~20mA;
¤Voltage Supply:220Vac±10%, 24Vac±10%;
¤Power Consumption:6W;
¤Output Torque: 8Nm,16Nm,20Nm or 24Nm
¤ Open/Close Running time:40~80S;
¤Media temperature range: 1°C~95°C
¤Ambient temperature: 0°C~60°C
¤Max. Pressure of valve body:2.0Mpa

>> Specification Form

Model
Valve
Thread
Actuator Torgue(Nm)
Work Medium
Media Temp.
Ambient Temp.
Pressure
Power Supply
(MPa)
HTW-71-18B5-225
Two-way
G1
8Nm/10Nm
Chilling water/Hot water/60% Glycol
1-95℃
0-60℃
2
24Vac, 220VAC 50/60HZ
HTW-71-18B5-325
Three-way
G1
8Nm/10Nm
HTW-71-18B5-232
Two-way
G1.1/4
16Nm
HTW-71-18B5-332
Three-way
G1.1/4
16Nm
HTW-71-18B5-240
Two-way
G1.1/2
16Nm
HTW-71-18B5-340
Three-way
G1.1/2
16Nm
HTW-71-18B5-250
Two-way
G2
16/24Nm
HTW-71-18B5-350
Three-way
G2
16/24Nm







Company Profile
Certifications

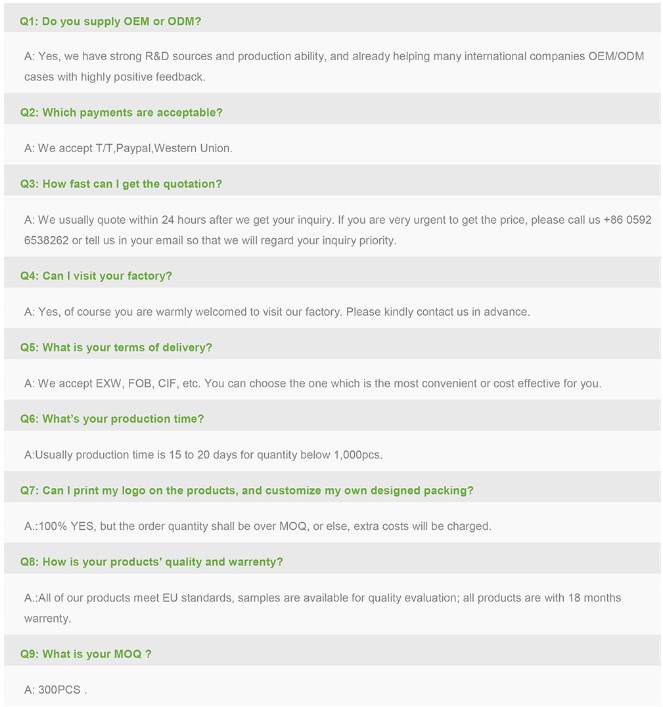

FAQ
