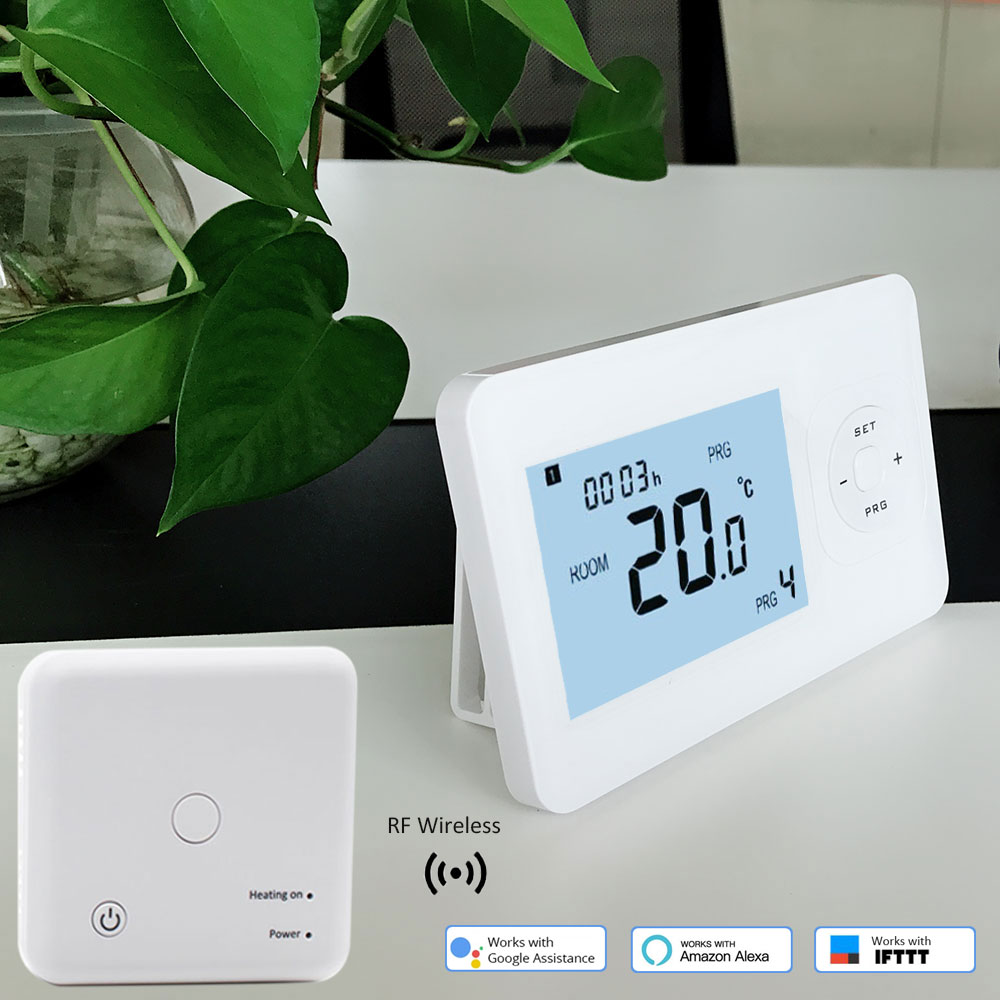

Wireless Room Programmable Battery powered Thermostat for Heating with WiFi
This smart thermostat has been developed to be able to switch electric and conventional heating/cooling systems on and off using a set temperature and time remotely at anytime anywhere. It consist of two parts, E-hub & HTW-WKT13-WF. E-hub can be used both as gateway and RF receiver to control heating device as boiler or valve. HTW-WKT13 can be a sender to work with gateway or directly connect to heating device.
>> General
This smart thermostat has been developed to be able to switch electric and conventional heating/cooling systems on and off using a set temperature and time remotely at anytime anywhere. It consist of two parts, E-hub & HTW-WKT13-WF. E-hub can be used both as gateway and RF receiver to control heating device as boiler or valve. HTW-WKT13 can be a sender to work with gateway or directly connect to heating device.
>> Features
>> Specification
Thermostat operating Votage
2 x AA1.5V, alkaline batteries.
Backup storage:
EEPROM
Receiver operating voltage:
230VAC, 50/60Hz
Maximum voltage / (ohmic) load:
250VAC/10A.
Frequency:
868MHz
Channel selection:
By programming the thermostat and the receiver.
Switching options:
7day, 4 periods each day.
Receiver switch contacts:
NO and NC.
Temperature settings:
5°C ~ 35°C, 0.5°C increments.
Accuracy:
+/-0.5°C
Thermostat dimensions:
Surface mounted, 135mm x 87.5mm x 23.2mm.
Receiver dimensions:
Surface mounted, 86mm x 86mmColor whiteIP protection ratingIP20CertificationCE/Rohs/R&TTE

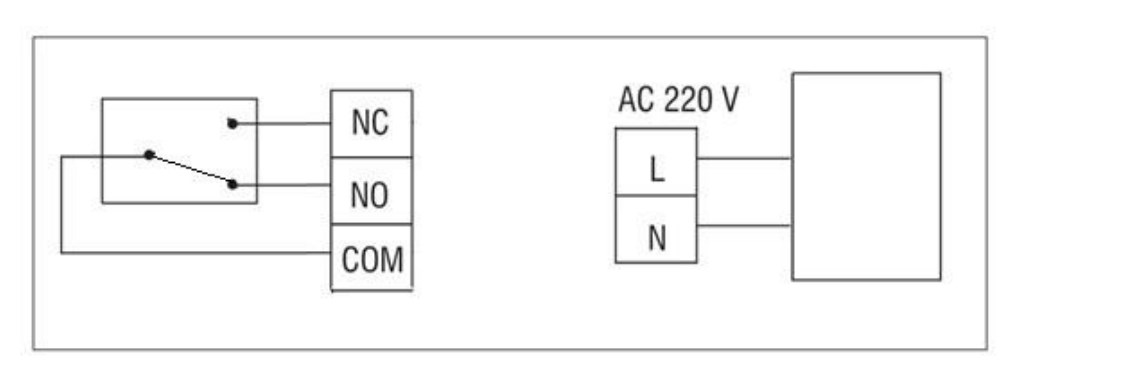

>> Wiring Diagram
>> Display Icons and Buttons
