WF10 Wifi 3A Water Heating Smart Home Internal Seansor Energy Saving Thermostat For Room
Product ID : HTW-WF10-3A3
Product Attributes :
HTW-WF10 series thermostat is widely used to maintain an ideal room temperature. It can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.
Product Description
Product Description
WF10 Wifi 3A Water Heating Smart Home Internal Seansor Energy Saving Thermostat For Room
>> General
HTW-WF10 series thermostat is widely used to maintain an ideal room temperature. It can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.
>> Features
>> Technical Parameter
| HTW-WF10-** | |
| Power Supply | 95~240Vac, 50/60Hz |
| Current Load | 3A(-3A, -NV application) ; 16A(-16A application) |
| Storage Temp. | -5 ~ 45 °C |
| Power Consumption | < 1.5W |
| Housing Material | PC +ABS ( Fireproof) |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 |
| Protection Class | IP20 |
| Sensor | NTC3950, 10K |
| Temperature Accuracy | ±0.5°C or ±1℉ |
| Set-Point Range | 5~35°C |
| Display Temp. Range | 5 ~ 99°C |
| Timing Error | < 1% |
|
Installation Box
|
EU or Standard Electric Box |
| Operating Buttons | Capacitive Touch Buttons |

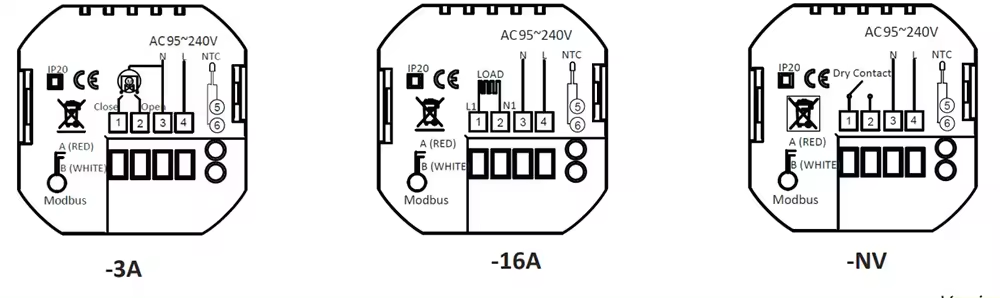

>>Typical wiring disgram
