WF01 Fan Coil Unit 0-10V Modulating Modbus External Sensor Touch Screen Programmable Thermostat For Room Temperature Control
HTW-WF11-FC-MENS series fan coil thermostat is designed with 3 fan speed and 1 cool/heat modulating valve output solution, it can be configured as cooling only or heating/cooling mode and with Modbus Communication and external sensor function. It is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
Product Description
WF01 Fan Coil Unit 0-10V Modulating Modbus External Sensor Touch Screen Programmable Thermostat For Room Temperature Control
>> General
HTW-WF11-FC-MENS series fan coil thermostat is designed with 3 fan speed and 1 cool/heat modulating valve output solution, it can be configured as cooling only or heating/cooling mode and with Modbus Communication and external sensor function. It is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose.
>> Features
>> Technical Parameter
| HTW-WF01-FC-** | |
| Power Supply | 95~240Vac, 50/60Hz |
| Current Load | Fan Relay 5A(3A-inductive); Valve Relay 3A(1A-inductive) |
| Storage Temp. | -5 ~ 45 °C |
| Power Consumption | < 1.5W |
| Housing Material | PC +ABS ( Fireproof) |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 |
| Protection Class | IP20 |
| Sensor | NTC3950, 10K |
| Temperature Accuracy | ±0.5°C or ±1℉ |
| Set-Point Range | 5~35°C |
| Display Temp. Range | 5 ~ 99°C |
| Timing Error | < 1% |
|
Installation Box
|
EU or Standard Electric Box |
| Operating Buttons | Capacitive Touch Buttons |

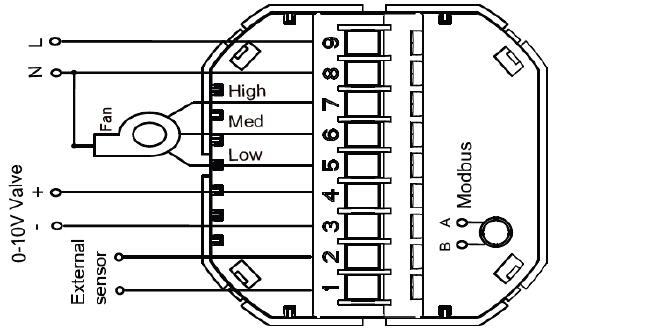

>>Typical wiring disgram
