Hot Selling 2/3 Way Matorized Valve For Fan Coil Unit System Water Valve Control
Hot Selling 2/3 Way Matorized Valve For Fan Coil Unit System Water Valve Control Hot Selling 2/3 Way Matorized Valve For Fan Coil Unit System Water Valve Control Hot Selling 2/3 Way Matorized Valve For Fan Coil Unit System Water Valve Control Hot Selling 2/3 Way Matorized Valve For Fan Coil Unit System Water Valve Control Hot Selling 2/3 Way Matorized Valve For Fan Coil Unit System Water Valve Control

Hot Selling 2/3 Way Matorized Valve For Fan Coil Unit System Water Valve Control

Product ID : HTW-W27
Product Tags : Motorized Zone Valve
Product Attributes :

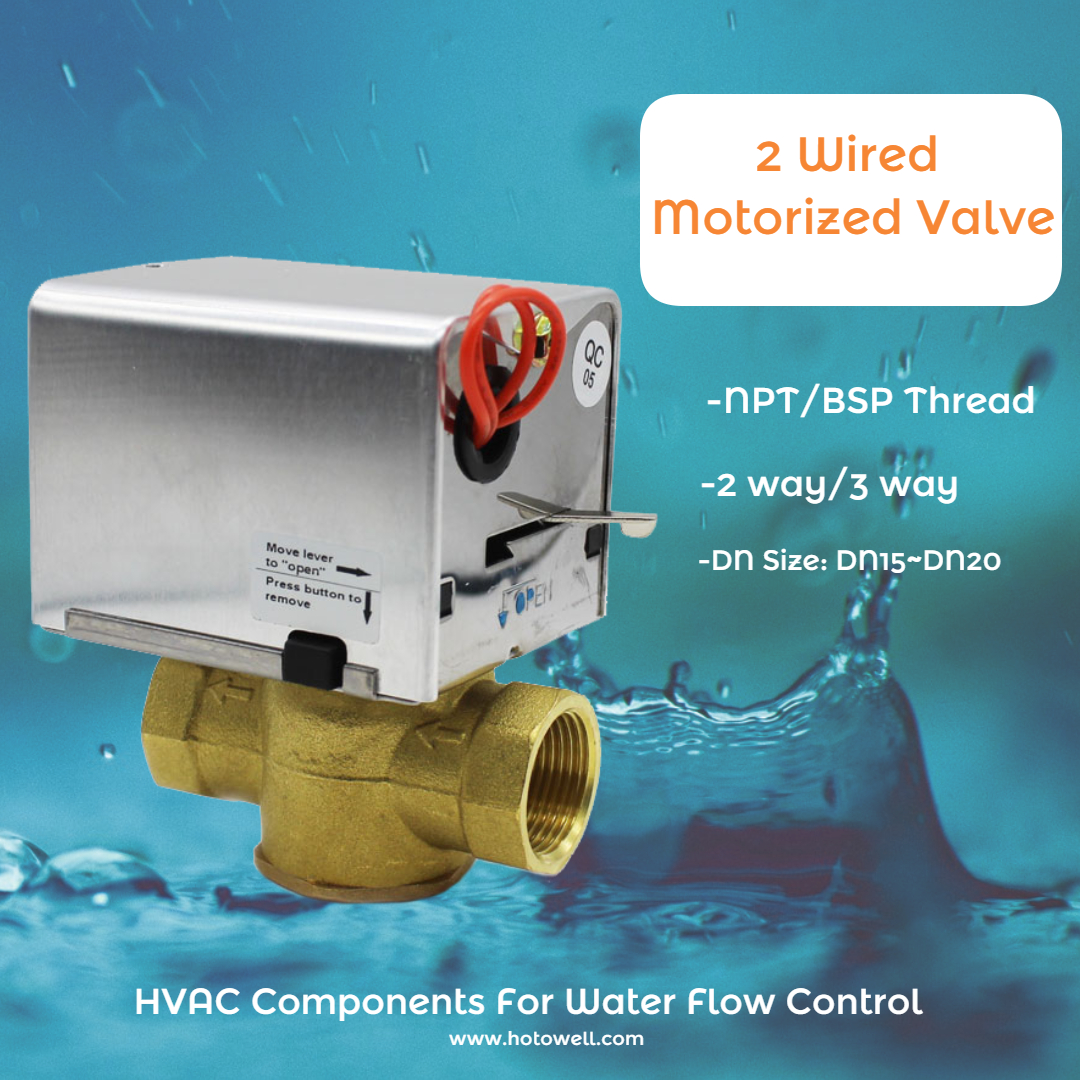

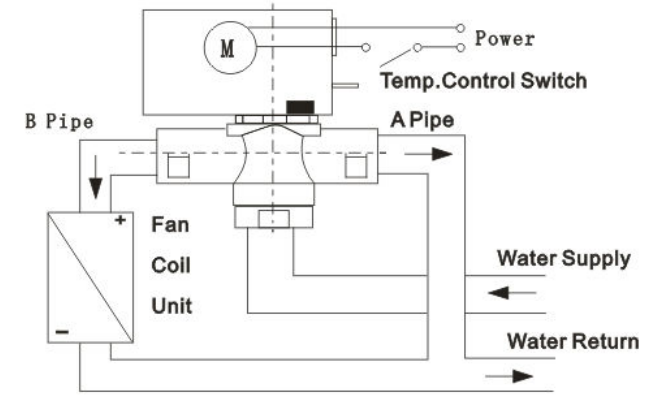

HTW-W27 Series Motorized Valves are used to control the flow of hot water/chilling
water, in heating/cooling or air-conditioning applications so as to control room
temperature indirectly. It consists of Actuator and Valve Body. The valve is normally
closed. When thermostat(with NTC sensor)transfers a signal to actuator, which switch on
power supply, and then opens valve letting hot water or chilling water to fan coil unit. If
the room temperature reaches set-point, the thermostat transfers a signal to actuator to cut
off the power supply and spring return switches the valve off, and stops the flow of hot
or chilling water. Therefore, the room temperature could be kept as a constant
temperature through valve opened or closed.
Product Description
Hot Selling Best selling 2/3 Way Matorized Valve For Fan Coil Unit System Water Valve Control
Product Description

>> General





HTW-W27F Series Motorized Valves solder types are used to control the flow of hot water/chilling water, in heating/cooling or air-conditioning applications so as to control room temperature indirectly.





>> Specification

Power Supply
AC220V/AC110V/AC24V±10% 50/60Hz Optiona
Consumption
6.5W
Compressive Strength
1.6Mpa
Working Temperature
5~40℃
Pipe Water Temperature
5~90℃

>>Application

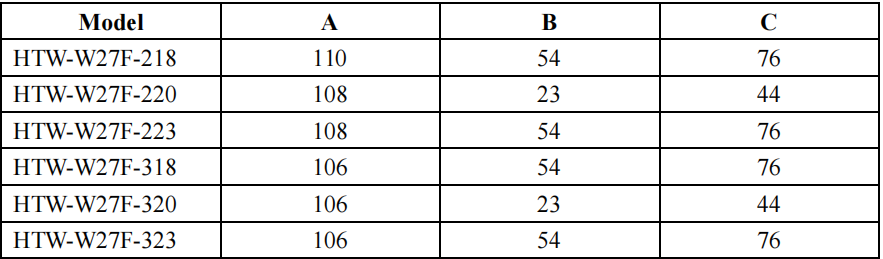

>> Model Summary
