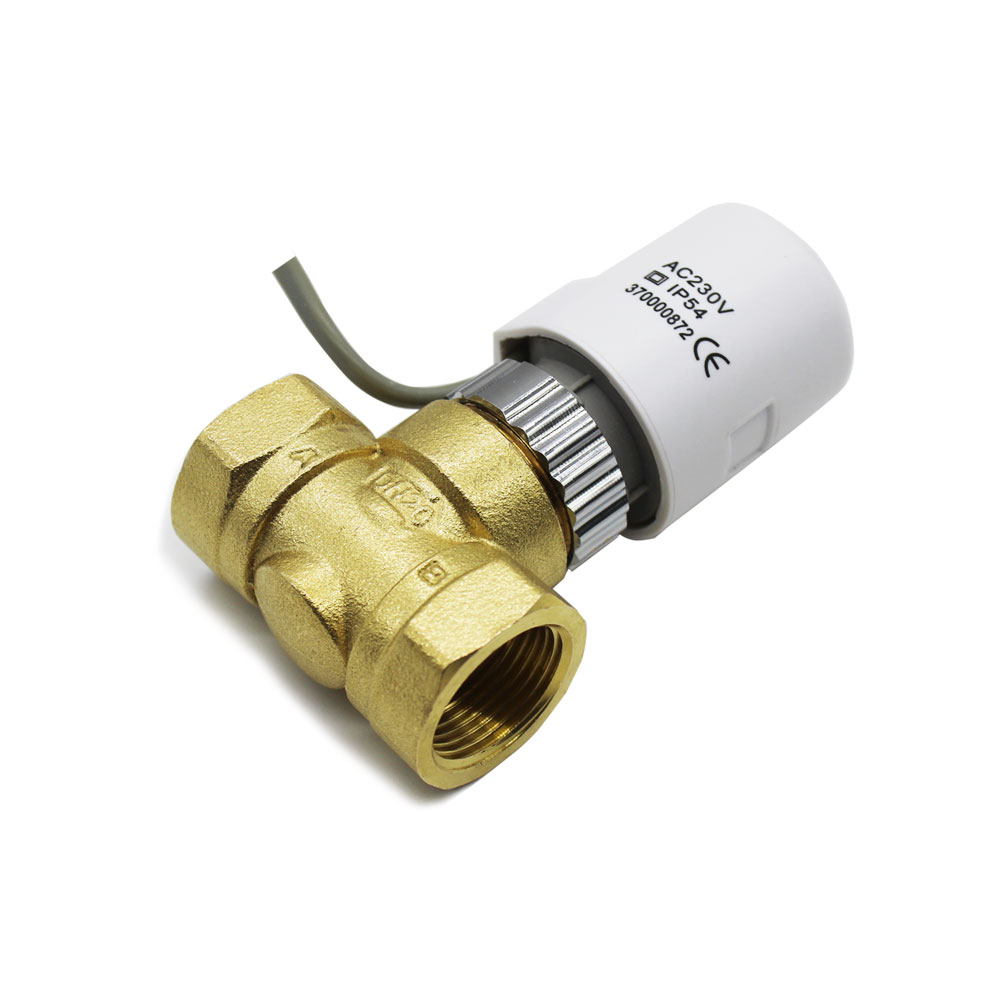

2 Way Water Heating Thermostatic Expansion Radiator Valve for Hot Water Pipe
HTW-TV01 series electric thermostatic valve is used to open or close
the heating system pipeline to maintain a thermal room temperature.
It is installed on the hot water pipe, and the valve is controlled to open
or close via the signal send from thermostat. The thermostat sends a
signal to open the thermal valve to heat the room via heat exchange
from the heating media, like heating water.
2 Way Water Heating Thermostatic Expansion Radiator Valve for Hot Water Pipe
HTW-TV01 series electric thermostatic valve is used to open or close the heating system pipeline to maintain a thermal room temperature.
It is installed on the hot water pipe, and the valve is controlled to open or close via the signal send from thermostat. The thermostat sends a signal to open the thermal valve to heat the room via heat exchange from the heating media, like heating water.
3 sizes available for option:
2 way 1/2''(DN15)
2 way 3/4''(DN20)
2 way 1''(DN25)
>> Specification
Power supply voltage:24/110V/220V/230V, 50/60Hz Optional Power consumption:1W
Protection rating:IP54
Connection Screw:M30* 1. 5
Working Temp.:5~60℃
Stroke:3mm
Opening Time:3~5min(25℃)
Working Thrust:110N
>> Ordering Guide
>> Models & Specifications of Valve Body
>> Dimensions
Hotowell is a high-tech company with rich experiences in product design and manufacturing, knowledge about global HVAC standards, and highly-trained team. Our objective is to produce and design user-friendly HVAC products on the highest technical level for improving people's experience in temperature/environment comfort.
Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. covering industrial, commercial and residential temperature controls.
