Hotowell HT03P 3ANV 16A LCD or VA Negative Anti-frozen Wifi Heating Thermostat
Product ID : HTW-HT03P
Product Attributes :
HTW-HT03P series heating thermostat is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices, etc. to maintain an ideal room temperature.
It can be used in Water/Gas Boiler Heating, Electric Underfloor Heating or Water Heating systems.
Product Description
Product Description
Hotowell HT03P 3ANV 16A LCD or VA Negative Anti-frozen Wifi Heating Thermostat
>> General
HTW-HT03P series heating thermostat is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices, etc. to maintain an ideal room temperature.
It can be used in Water/Gas Boiler Heating, Electric Underfloor Heating or Water Heating systems.

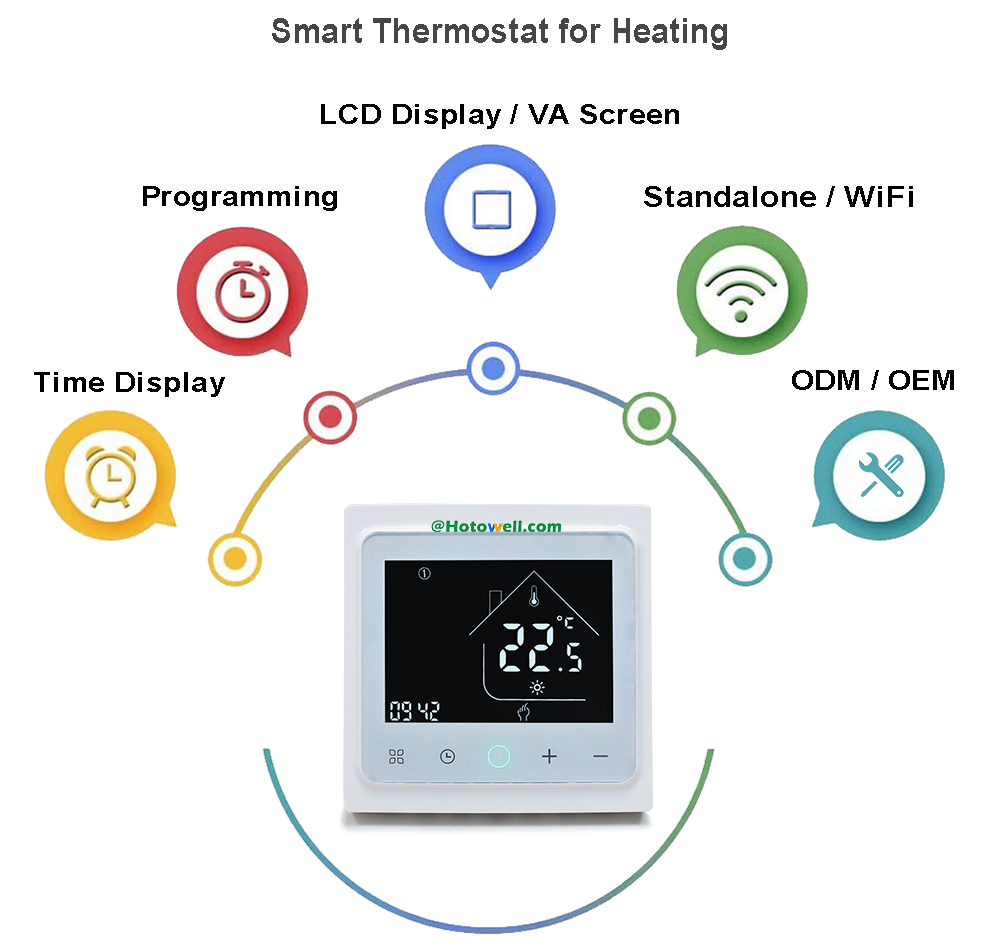

>> Features
>> Technical Parameter
| HTW-HT03P-** | |
| Power Supply | 100~240Vac, 50/60Hz |
| Current Load | 3A/250VAC ; 16A/250VAC |
| Storage Temp. | 5 ~ 45 °C |
| Power Consumption | < 1W |
| Housing Material | PC +ABS ( Fireproof) |
| Wires on Terminals | Wire 2 x 1.5 mm2 or 1 x 2.5 mm2 |
| Protection Class | IP20 |
| Sensor | NTC3950, 10K |
| Temperature Accuracy | ±0.5°C or ±1℉ |
| Set-Point Range | 5~35°C |
| Display Temp. Range | 5 ~ 95°C |
| Timing Error | < 1% |
|
Installation Box
|
EU or Standard Electric Box |
| Operating Buttons | Capacitive Touch Buttons |

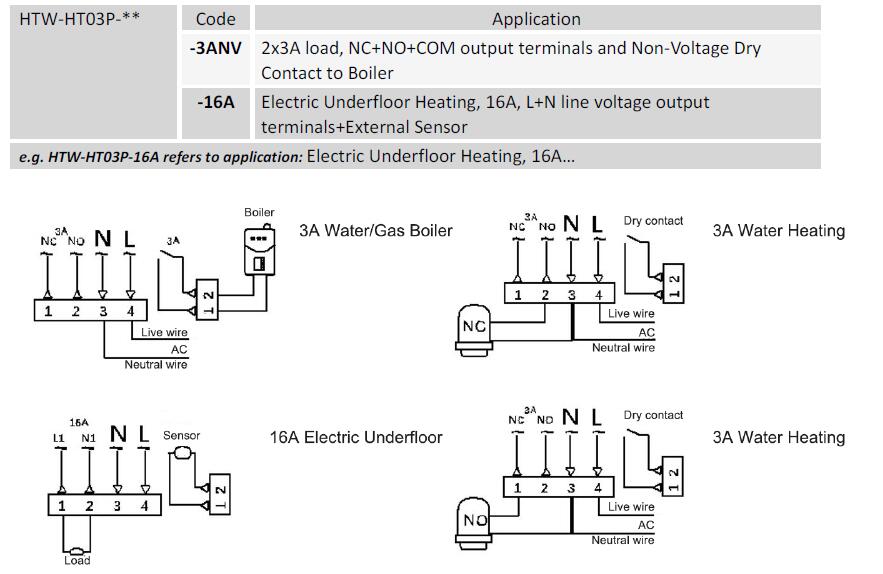

>>Typical wiring disgram
