Floor Heating Warm Floor Smart Home Control work 220V Smart WIFI Heating room Thermostat

Floor Heating Warm Floor Smart Home Control work 220V Smart WIFI Heating room Thermostat

Product ID : HTW-WF03

Product Tags : Heating Thermostat

Product Attributes :

HTW-WF03 series thermostat is widely used in these environments like Homes, Residential buildings, Hotels, Offices and etc. to maintain an ideal room temperature. It can be used in Electric Underfloor Heating, Water Heating, or Water/Gas Boiler systems.

Product Description

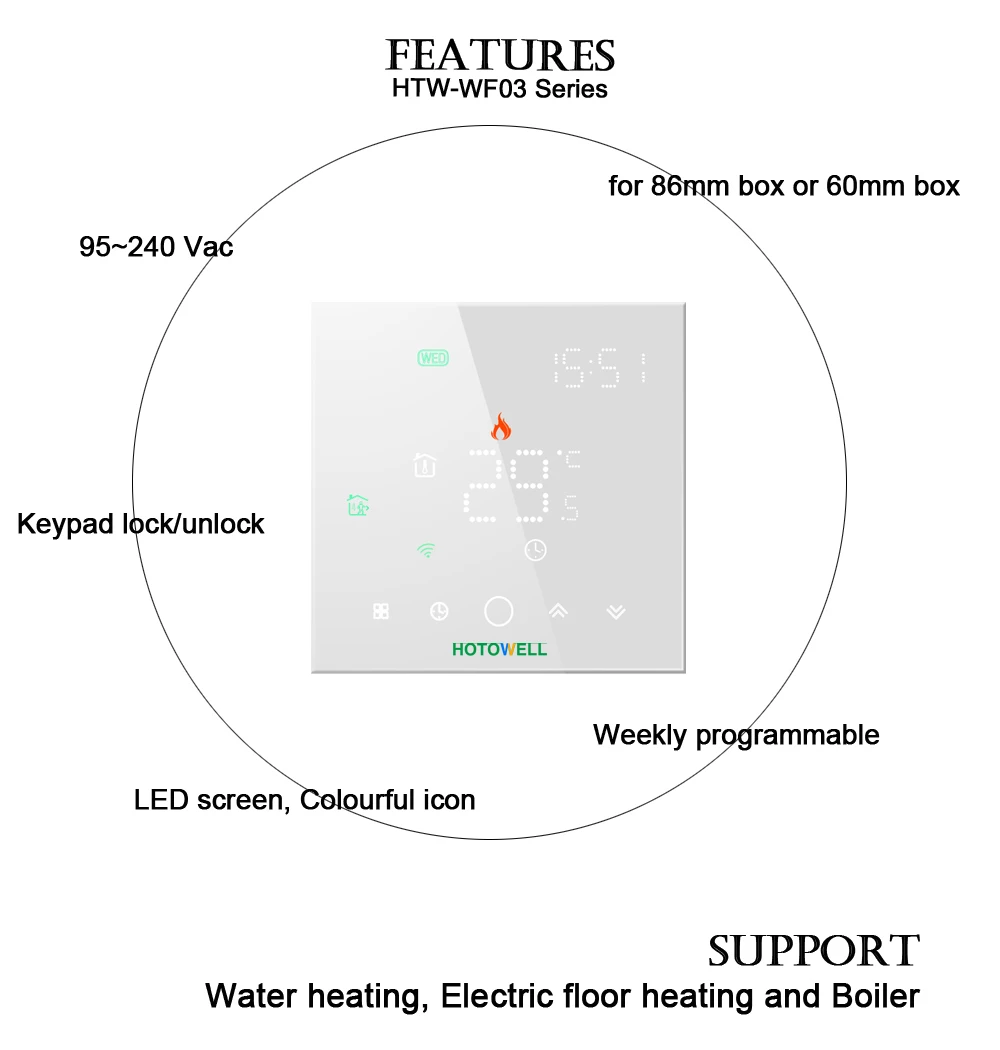

Floor Heating Warm Floor Smart Home Control work 220V Smart WIFI Heating room Thermostat

>> General

>> Ordering Guide

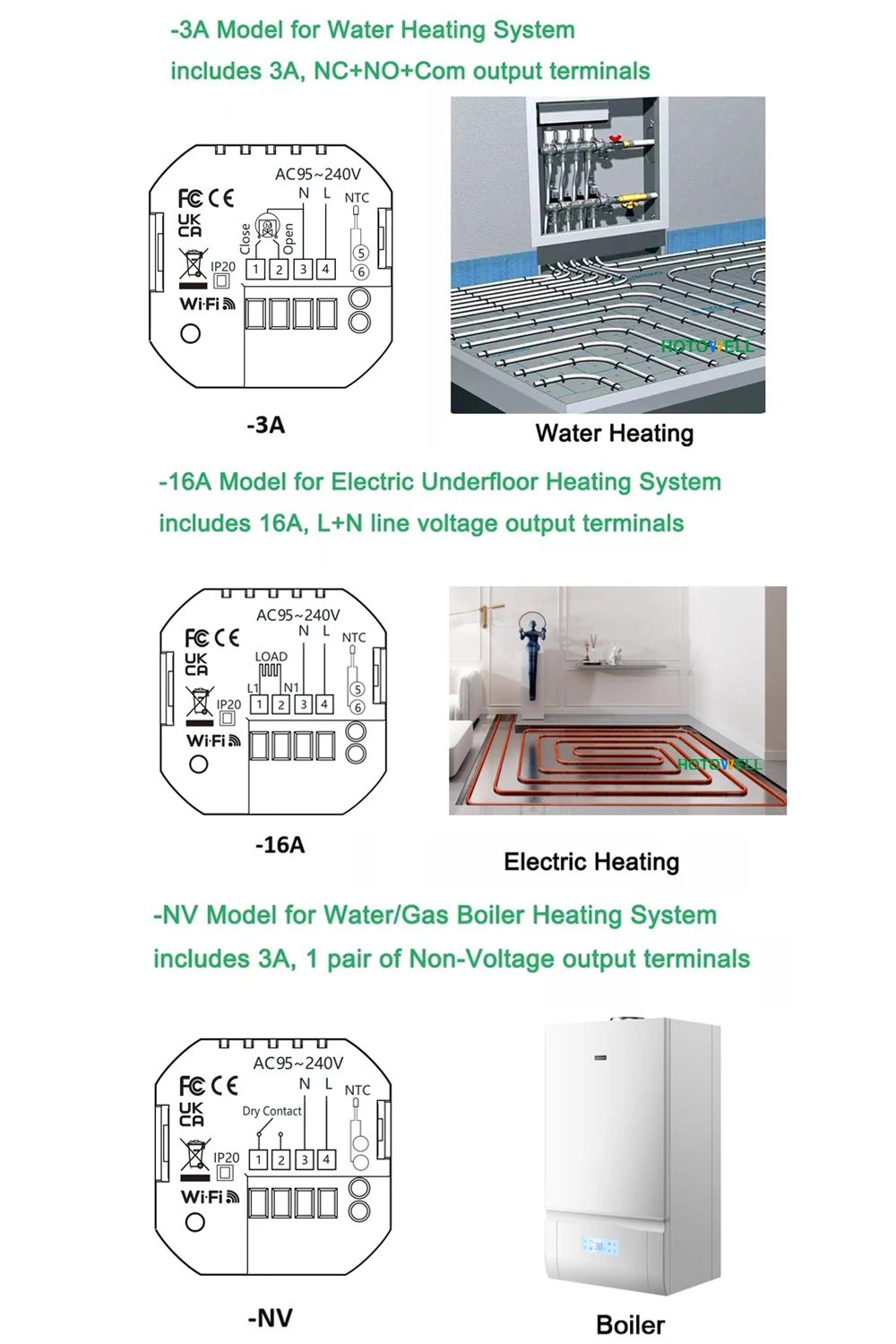

HTW-WF03-**	Code	Application
	-3A	Water Heating, 3A, NC+NO+Com output terminals
	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals
	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
	-1/2/3	1: Stand-alone, 2: Modbus, 3: Wi-Fi
e.g. HTW-WF03-3A1 refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals, Stand-alone version

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5 ~ 35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%

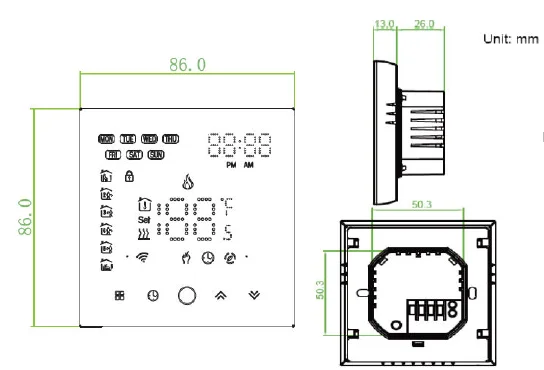

Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons

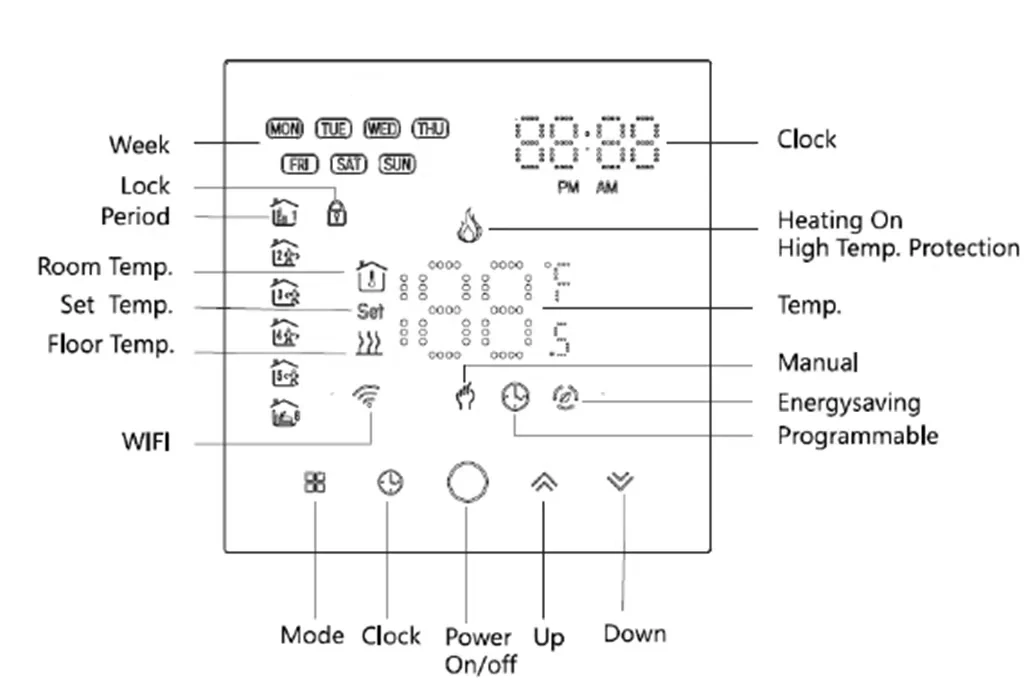

Details

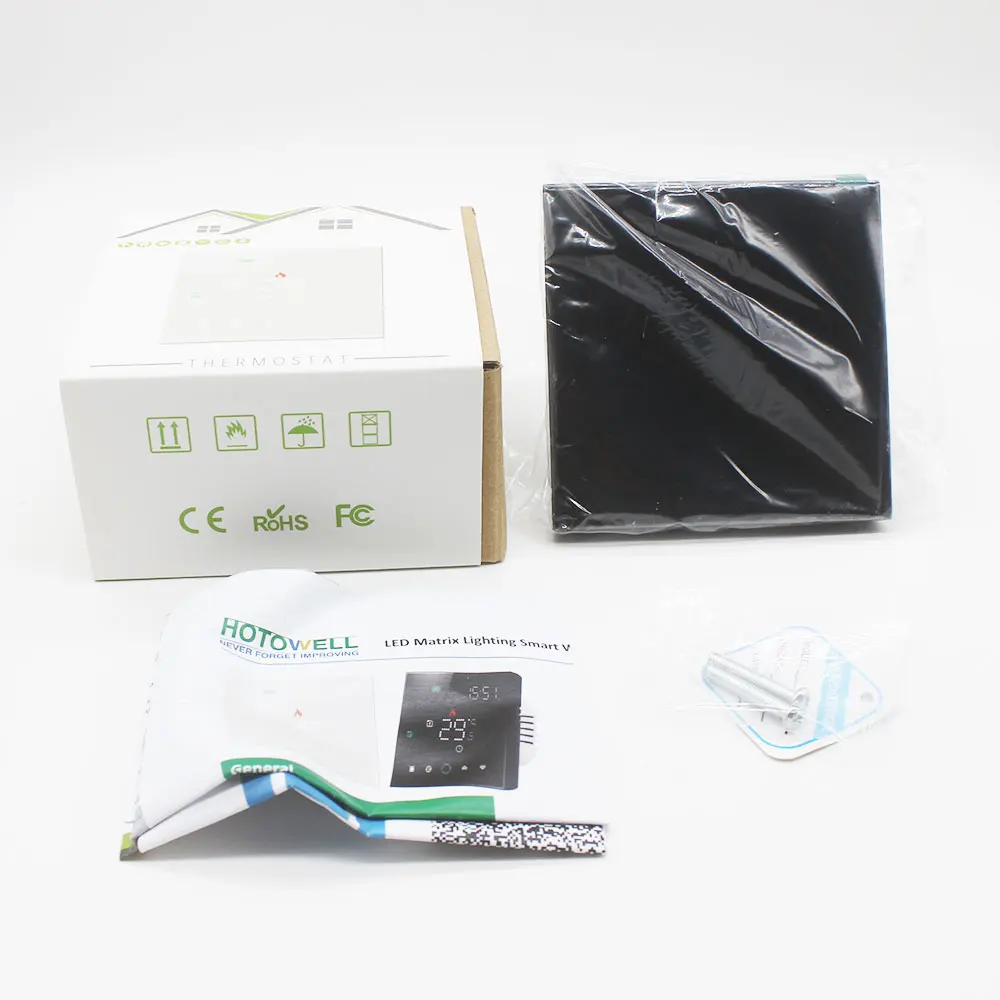

Packing & Delivery

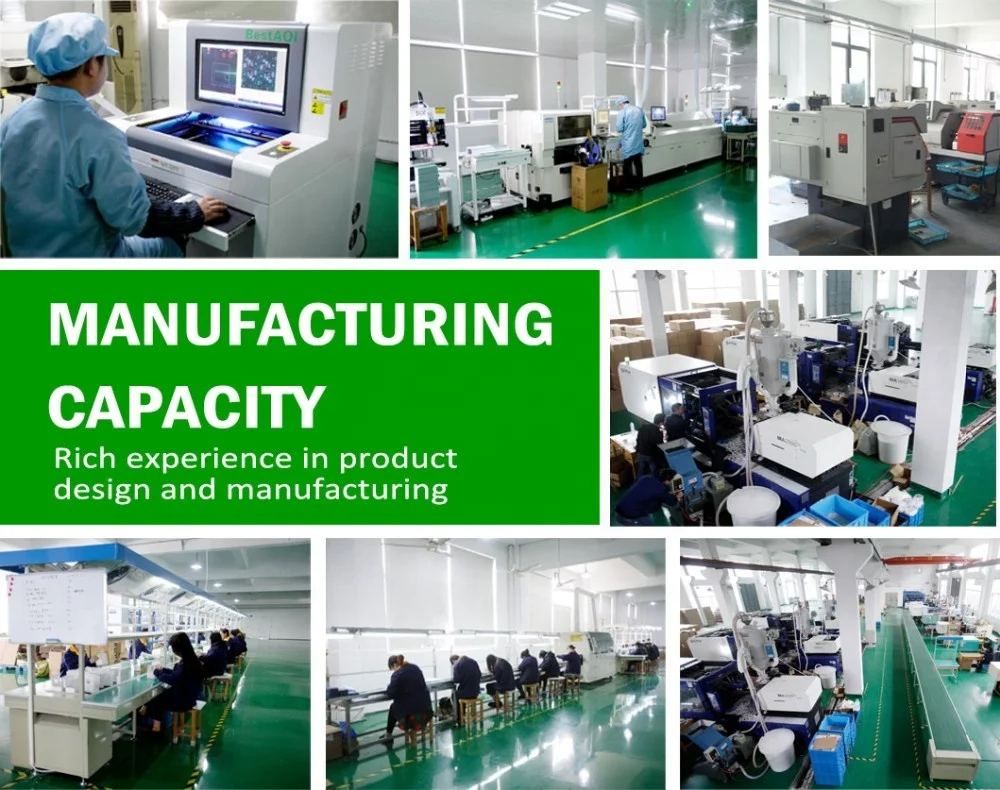

Company Profile

Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. covering industrial, commercial and residential temperature controls.
