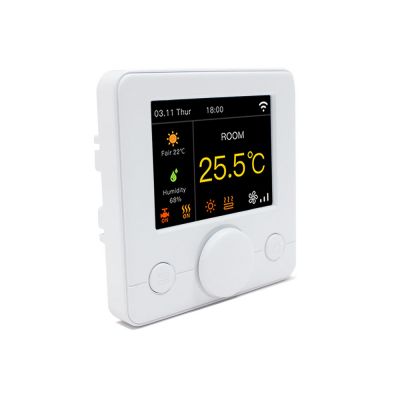

Heat Pump Digital Heating Room Thermostat for wall furnace
Heat Pump Digital Heating Room Thermostat for wall furnace Heat Pump Digital Heating Room Thermostat for wall furnace Heat Pump Digital Heating Room Thermostat for wall furnace Heat Pump Digital Heating Room Thermostat for wall furnace Heat Pump Digital Heating Room Thermostat for wall furnace

Heat Pump Digital Heating Room Thermostat for wall furnace

Product ID : HTW-81-FN7
Product Attributes :

HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.

Product Description

Heat Pump Digital Heating Room Thermostat for wall furnace



HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.

>>Features

 Elegant design with 4.3” LCD display

 Individual programming Schedules:7 days*4 time periods

 Tempered glass panel with capacitive touch buttons

 NTC thermistor

>>Specification

>>Power supply: AC24V, 50Hz

>>Power dissipation:2W Dimension: 136*94*26mm Output: <1A (Resistant load)

>>Temperature range: 41ºF -99ºF (5ºC -37ºC)

>>Display accuracy: ±0.5 ºC

>>Wiring: Terminals

 >>Installation dimension: 60mm / 82mm (hole pitch)

>>Application
 >>1H/1C (conventional)
 >>1H/2C (conventional)
 >>2H/2C (conventional)
 >>2H/1C (conventional)
 >>1H/1C (heat pump)
 >>2H/1C (heat pump)
 >>2H/2C (heat pump)
 >>3H/2C (heat pump)

>>Wiring Diagram

Wiring Diagram.jpg

>>Terminal Instruction



Terminal Instruction.jpg

>>Controlling Type Configuration



Controlling type.jpg
