Internal and External Sensor Dual temperature dual control Smart Thermostat for Electric radiant Floor Heating for House

Product ID : HTW-WF01

Product Tags :

Product Attributes :

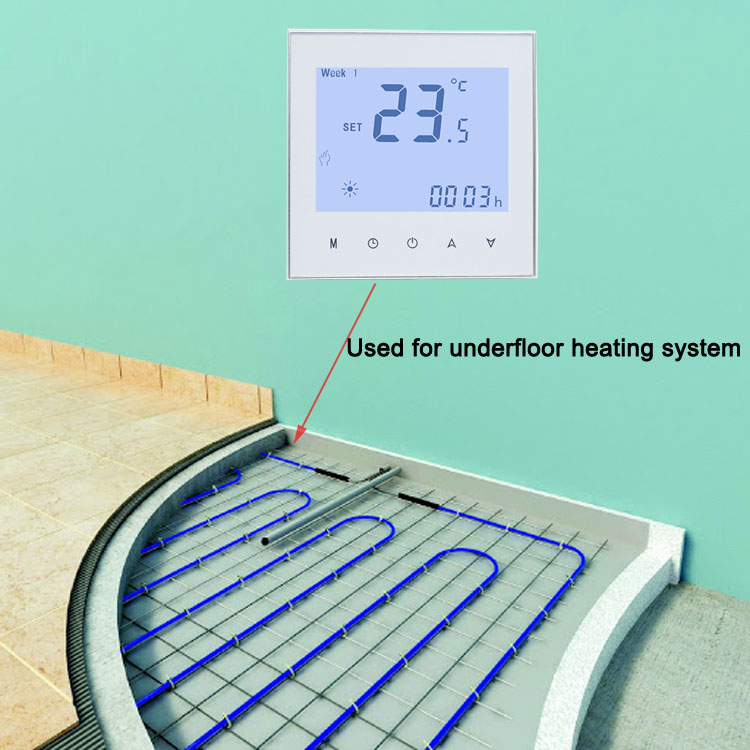

HTW-WF01 series Tuya Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

Product Description


Internal and External Sensor Dual temperature dual control Smart Thermostat for Electric radiant Floor Heating for House

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(-3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A -inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2


>> Ordering Guide

HTW-WF01- **
	Code	Application

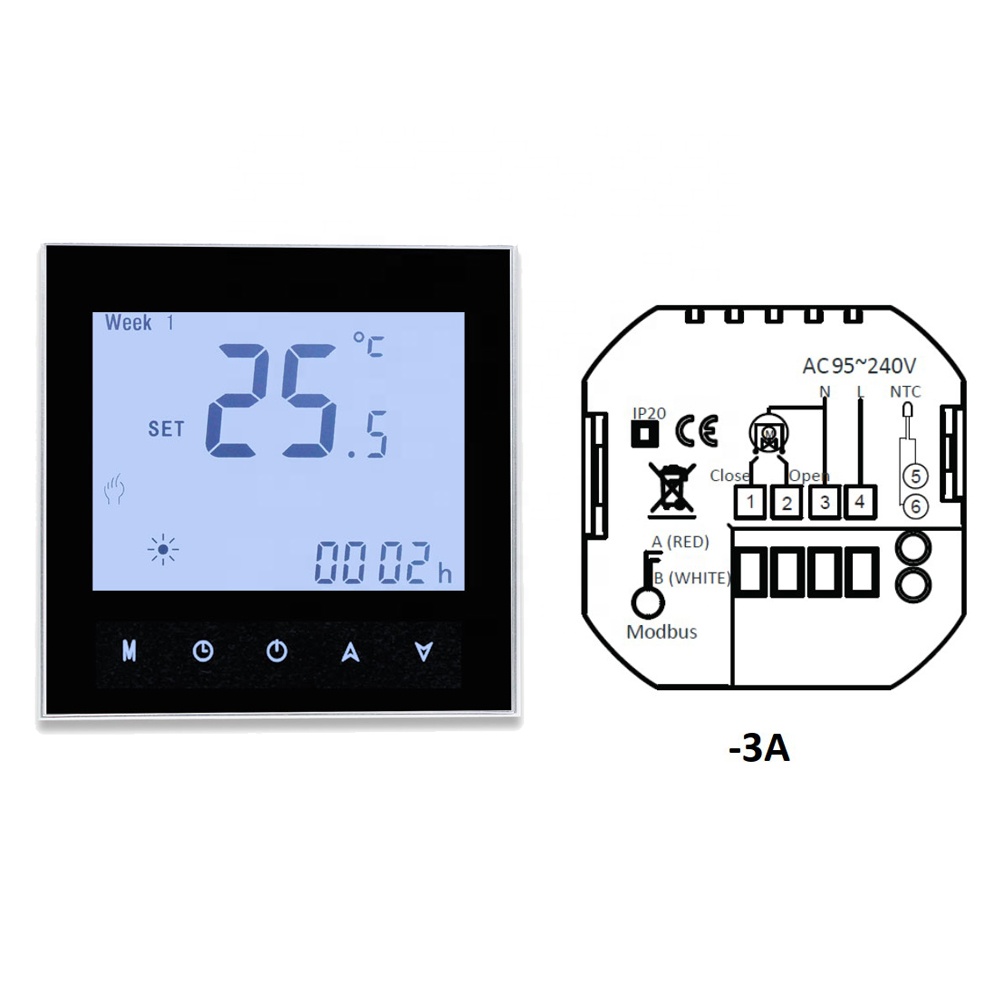

	-3A	Water Heating, 3A, NC+NO+Com output terminals

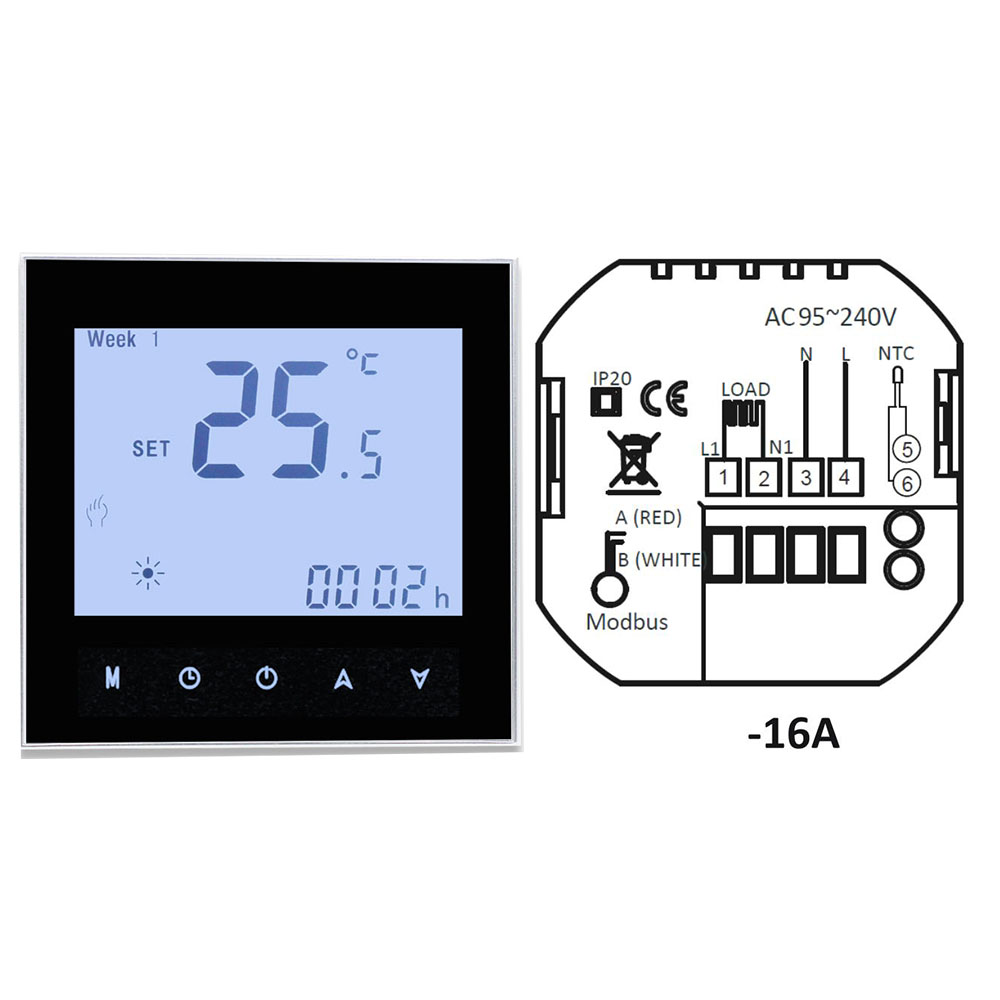

	-16A	Electric Underfloor Heating, 16A, L+N line voltage output terminals

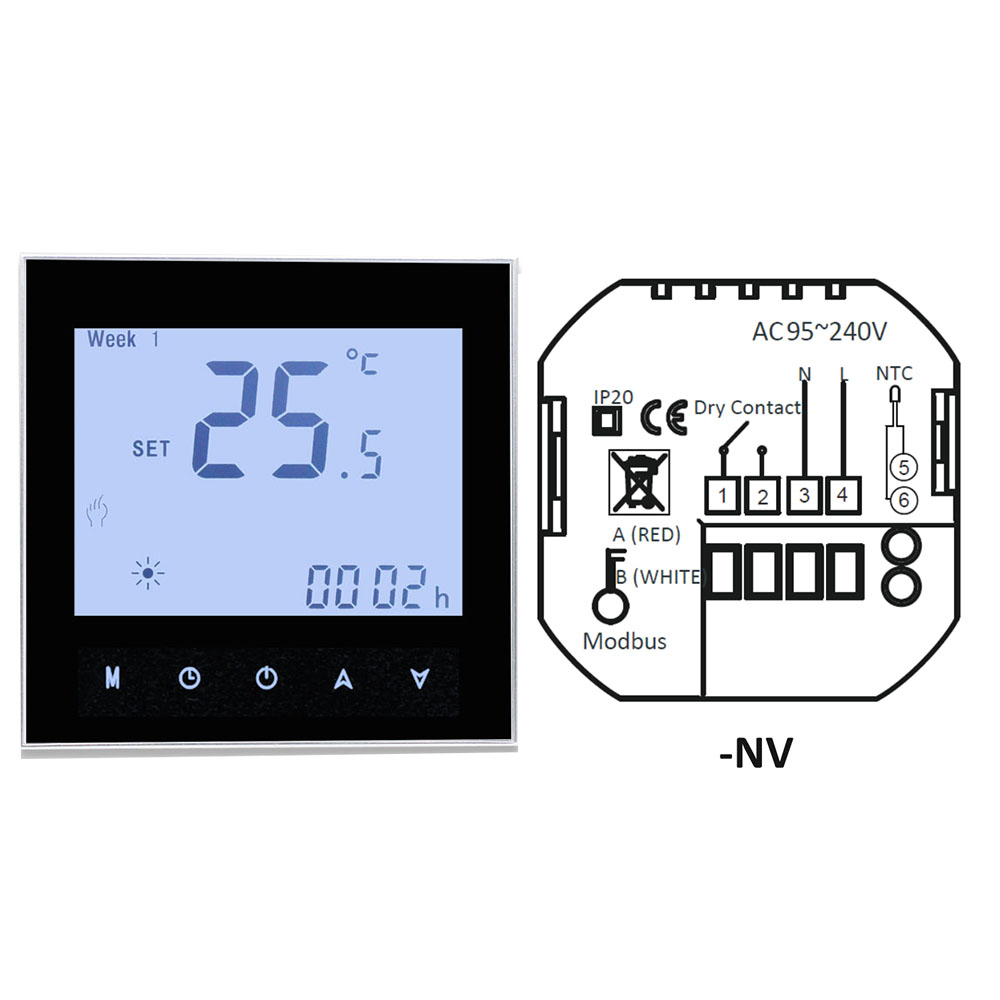

	-NV	Water/Gas Boiler, 3A, 1 pair of Non-Voltage output terminals
e.g. HTW-WF01-3A refers to application: Water Floor Heating, 3A, NC+NO+Com output terminals
