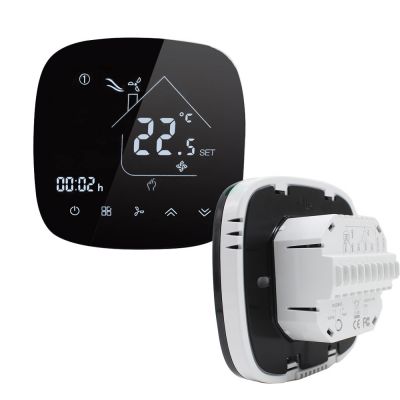

Htw-81-Fn7 The Smart Heat Pump Climate Control with WiFi and No-WiFi Voice Control 24VAC Floor Heat Thermostat

HTW-81-FN7 The Smart Heat Pump Climate Control with WiFi And No-Wifi Voice Control 24VAC Floor Heat Thermostat

>>General

HTW-81-FN7 Series Single Multi-Stage Digital Heat Pump Thermostat is a device for indoor temperature control. It is mainly applied to heat pump system for heating/cooling, with 3 modes easily switchable: Schedule, Hold and Holiday. The device is of high reliability and practicability,and it can support up to 3H/2C system.


>>Feature

1.Power supply: AC24V, 50Hz
2.Power dissipation: 2W
3.Dimension: 136*94*26mm
4.Output: <1A (Resistant load)
5.Temperature range: 41ºF -99ºF (5ºC -37ºC)
6.Display accuracy: ±0.5 ºC
7.Installation dimension: 60mm / 82mm (hole pitch)

>>Application  >>1H/1C (conventional)
 >>1H/2C (conventional)
 >>2H/2C (conventional)
 >>2H/1C (conventional)
 >>1H/1C (heat pump)
 >>2H/1C (heat pump)
 >>2H/2C (heat pump)
 >>3H/2C (heat pump)

>>Wiring Diagram

>>Terminal Instruction
>>Controlling Type Configuration
