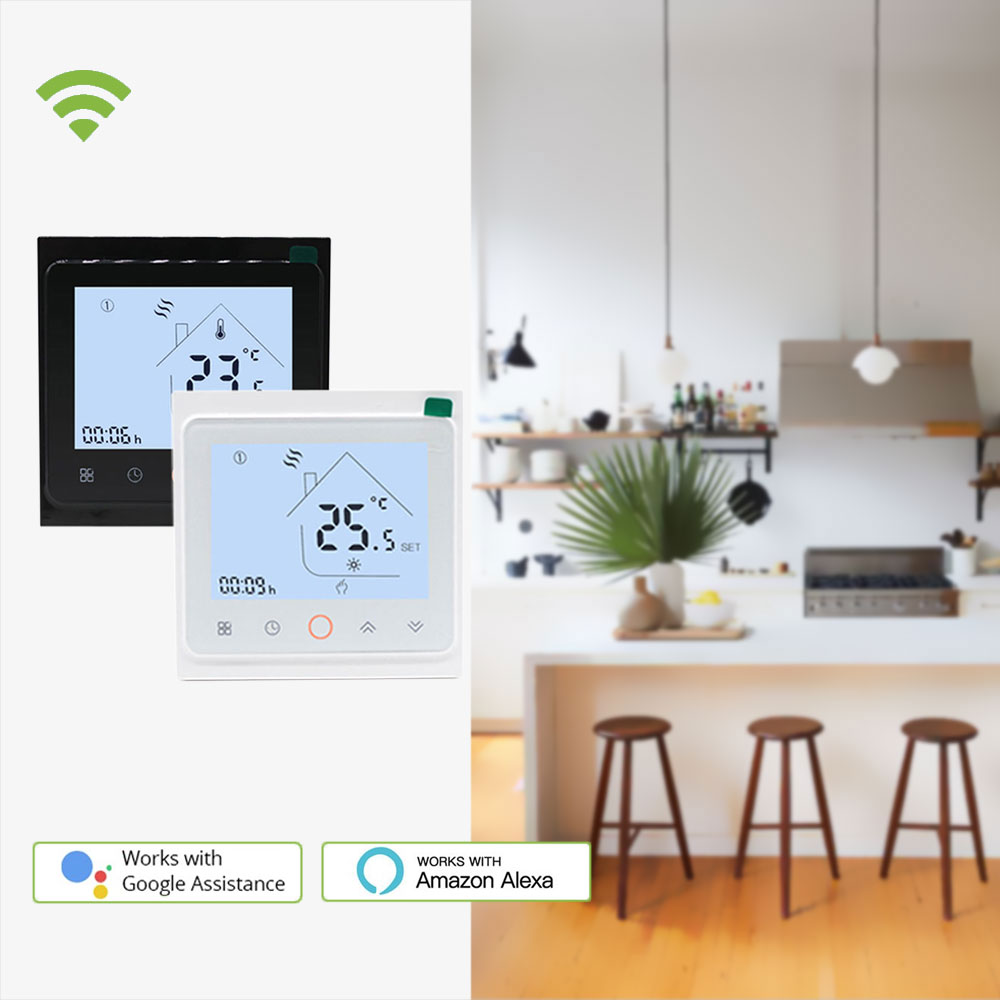

Smart Wifi Thermostat Temperature Controller for Underfloor Heating System and Water Heating System

Product ID : HTW-HT03

Product Tags : Heating Thermostat Room thermostat Wifi thermostat

Product Attributes :

HTW-HT03 series Wifi thermostat can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

Product Description

Smart Wifi Thermostat Temperature Controller for Underfloor Heating System and Water Heating System

>> General

HTW-HT03 series Wifi thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

>> Specifications

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	3A(-3A, -NV application)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	16A(-16A application)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
