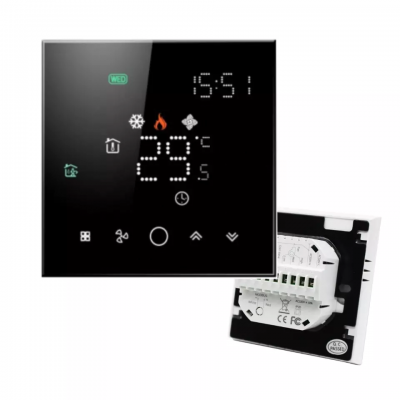

LED Digital Touch Screen FCU Programmable WIFI/Modbus Smart Home Thermostat

Product ID : HTW-WF03-FC-2/4

Product Tags :

Product Attributes :

HTW-WF03-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes,Residential buildings,Schools,Hotels,Hospitals,Offices and etc.to main an ideal room temperature purpose.

Product Description

LED Digital Touch Screen FCU Programmable WIFI/Modbus Smart Home Thermostat

>>General

HTW-WF03-FC series Smart Wifi fan coil thermostat is widely used in these environment like Homes,Residential buildings,Schools,Hotels,Hospitals,Offices and etc.to main an ideal room temperature purpose.

>> Ordering Guide

HTW-WF03-FC-**	-2	2 pipe(tube) system
FCU Room Thermostat	-4	4 pipe(tube) system
	-M	0~10V Modulating Valve Output
	-N	RS485 Modbus RTU communication
	-K	Key Card occupancy input
	-W	WiFi Connection
	-T	Real Time Clock
	-P	Programmable
	-E	External Temperature Sensor
	-24v	Power Supply with 24Vac
e.g. HTW-WF03-FC-2KP refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with key card and weekly programmable

Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A(3A-inductive)	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5 ~ 99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
