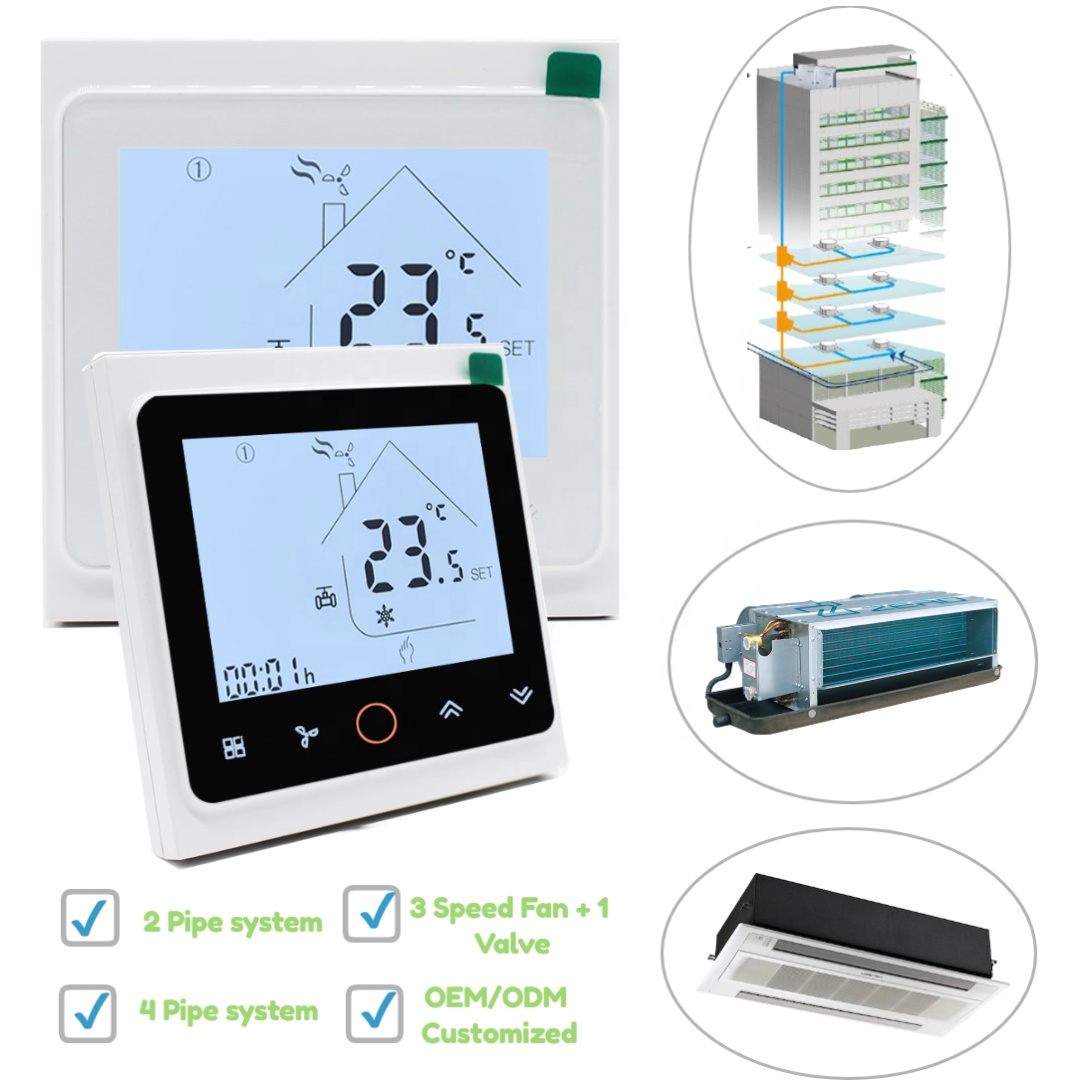

Touch Screen Smart Wi-fi Fan Coil Thermostat 4 Colors Temperature Controller HTW-FT03

Product ID : HTW-FT03 series

Product Tags :

Product Attributes :

HTW-FT03 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals,Offices and etc. to main an ideal room temperature purpose.
Which include 2 pipe or 4 pipe models with Wifi or Modbus function choice.

Product Description

Touch Screen Smart Wi-fi Fan Coil Thermostat 4 Colors Temperature Controller HTW-FT03

>> General
HTW-FT03 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals,Offices and etc. to main an ideal room temperature purpose.
Which include 2 pipe or 4 pipe models with Wifi or Modbus function choice.

>> Features

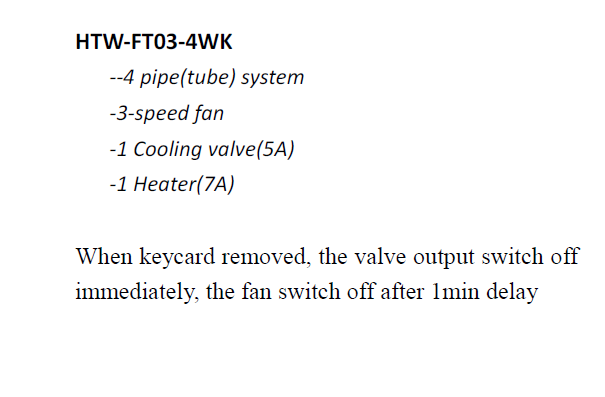

Ordering Guide

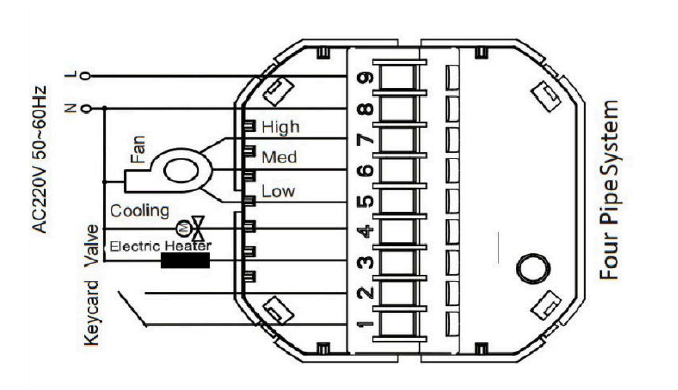

Typical Wiring

Specification

Power supply	95~240Vac,50/60Hz	Sensor	NTC3950,10K
Current Load	Fan relay 5A(3A-inductive)	Temperature Accuracy	±0.5℃ or ±1F
Current Load	Valve Relay 3A(1A-inductive)	Set-Point Range	5~99℃
Power Consumption	<1.5W	Timing Error	<1%
Housing Matertial	PC+ABS(Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 21.5 mm² or 12.5 mm²
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
