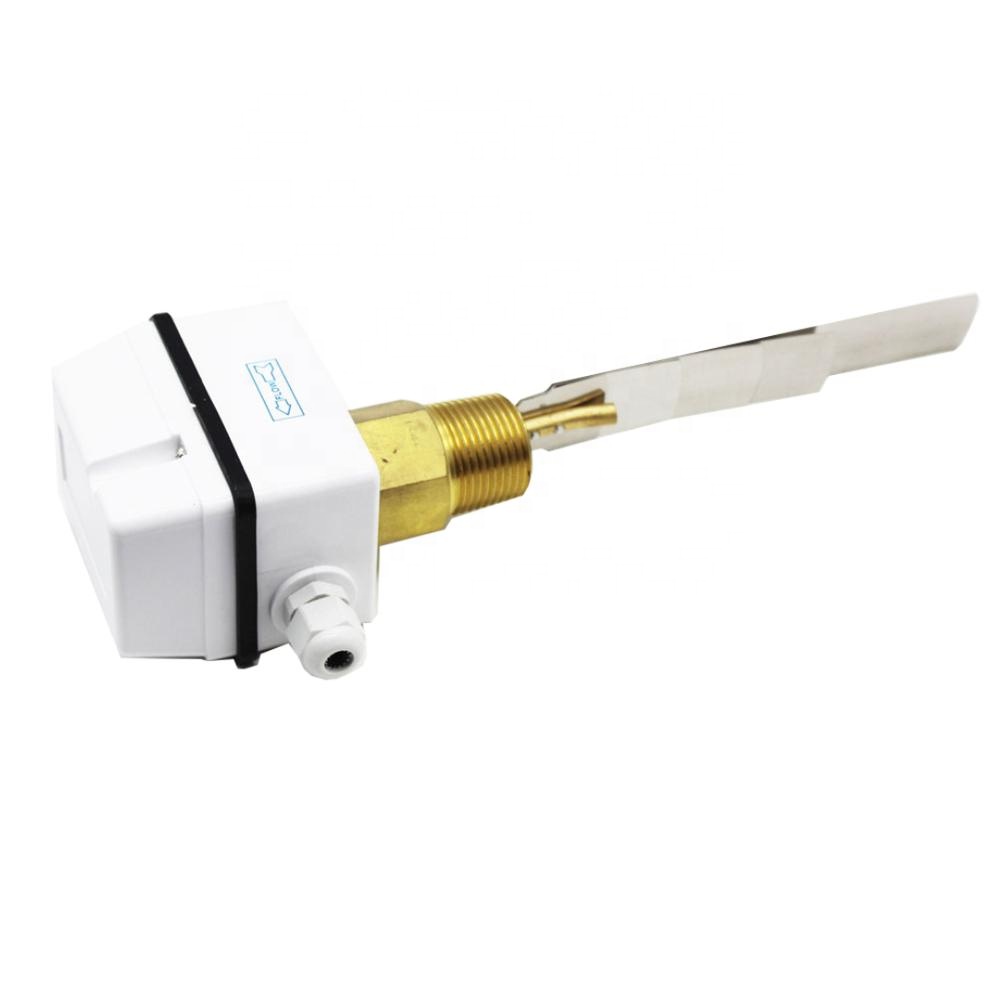

CE Approval Flow Control Automatic Water Flow Switch
CE Approval Flow Control Automatic Water Flow Switch CE Approval Flow Control Automatic Water Flow Switch CE Approval Flow Control Automatic Water Flow Switch CE Approval Flow Control Automatic Water Flow Switch CE Approval Flow Control Automatic Water Flow Switch

CE Approval Flow Control Automatic Water Flow Switch

Product ID : HTW-AFS
Product Tags :
Product Attributes :

● Flow control of water and normal media

● Renovated SPDT micro switch ensures the reliable switch function
● 15(8A) 250VAC switch rating
● IP65, class I enclosure

Product Description
Product Description

CE Approval Flow Control Automatic Water Flow Switch


>> General

● Flow control of water and normal media
● Renovated SPDT micro switch ensures the reliable switch function
● 15(8A) 250VAC switch rating
● IP65, class I enclosure

>> Specification
Type of operation On/Off, single-stage, micro switch
Output SPDT 15(8A) 24/250Vac
Flow rates See flow rate table
Flow rate setting adjustment Internal srew
Sensing element Paddle
Liquid applications Hot, chilled, well, pool and sea water,
Brine or ethylene glycol
Parts material in contact with fluid Brass
Paddle material Stainless steel

Liquid temperature -20C-120C
Permissible ambient temperature -40C-85C
Permissible ambient humidity 10…90% RH, non-condensing
Cable entry M18
Housing Galvanized Steel Plate, ABS or PC cover
Protection IP65
Color White
Weight 1.0Kg
>> Type & Data
Model
Connection
Medium
Material

HTW-AFS-15
1/2"-14NPT
Water
Brass

HTW-AFS-20
3/4"-14NPT
Brass
HTW-AFS-25
1"-11 1/2NPT
Brass

HTW-AFS-15S
1/2"-14NPT
Caustic Liquid
Stainless Steel

HTW-AFS-20S
3/4"-14NPT
Stainless Steel
HTW-AFS-25S
1"-11 1/2NPT
Stainless Steel

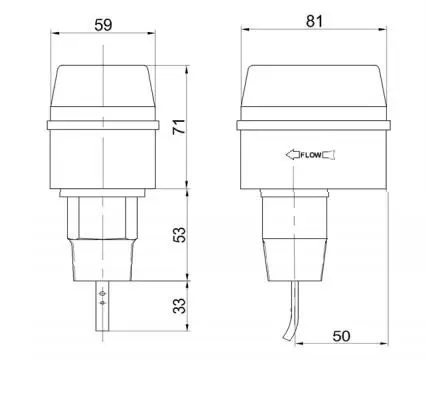

>> Dimensions
