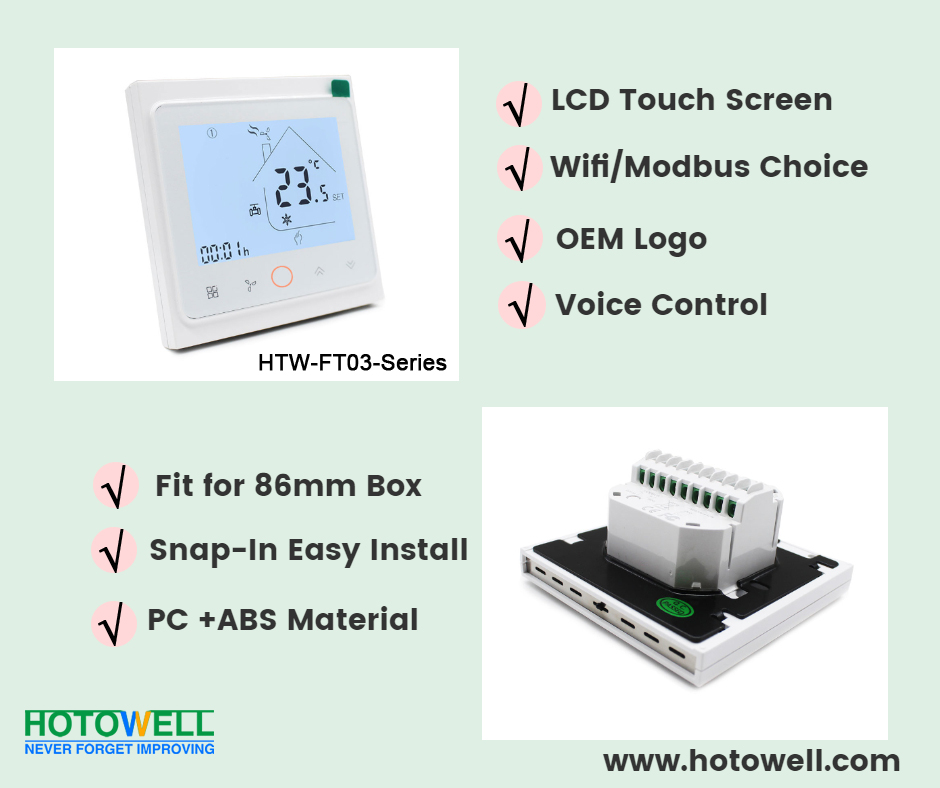

Wifi Control External Sensor Room Thermostat Temperature Controller 4 Pipe Thermostat

Product ID : HTW-FT03-4EW

Product Tags : Fan coil thermostat Room thermostat Wifi thermostat

Product Attributes :

HTW-FT03 series smart fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature.

Product Description

Wifi Control External Sensor Room Thermostat Temperature Controller 4 Pipe Thermostat

>> General

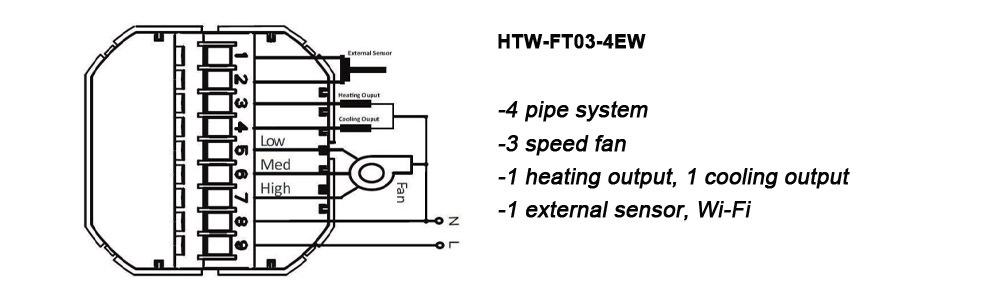

HTW-FT03-4EW
HTW-FT03 series smart fan coil thermostat is widely used in these environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to maintain an ideal room temperature.

>> Ordering Guide

HTW-FT03-**	-2	2 pipe(tube) system	-W	Wi-Fi
Smart Fan Coil Thermostat	-4	4 pipe(tube) system	-B	BACnet
	-M	Modulating output	-P	Programmable
	-N	Modbus RTU communication	-E	External Temperature Sensor
	-K	Key Card occupancy input	-24v	Power Supply with 24Vac
e.g. HTW-FT03-4KN: refers to application: 4 pipe, 3 fan speed, with Key-card and Modbus

>> Specification

Power Supply	95~240Vac, 50/60Hz	Sensor	NTC3950, 10K
Current Load	Fan Relay 5A	Temperature Accuracy	±0.5°C or ±1℉
Current Load	Valve Relay 3A	Set-Point Range	5~35°C
Storage Temp.	-5 ~ 45 °C	Display Temp. Range	5~99°C
Power Consumption	< 1.5W	Timing Error	< 1%
Housing Material	PC +ABS ( Fireproof)	Installation Box	EU or Standard Electric Box
Wires on Terminals	Wire 2 x 1.5 mm² or 1 x 2.5 mm²
Protection Class	IP20	Operating Buttons	Capacitive Touch Buttons
