Intelligent Tuya Thermostat Wifi Multi Stage Heat Pump Thermostat Work with Smart Life Google Home
HTW-81-FN7-WF smart thermostat combines user-friendly touch-sensitive buttons with Wi-Fi wireless smart control application, offering unparalleled user control. Its locally efficient control system and remote wireless smart control save up to 32% heating & cooling cost.
>> General
HTW-81-FN7WF smart thermostat combines user-friendly touch-sensitive buttons with Wi-Fi wireless smart control application, offering unparalleled user control. Its locally efficient control system and remote wireless smart control save up to 32% heating & cooling cost.
Local energy-saving programmable solution for providing highly accurate temperature control. Remote wireless control through the application for providing an easy and comfortable lifestyle. The Apps support Google home and Amazon echo for good human-machine communication.
>>Application
●Power supply: AC24V, 50Hz
●.Power dissipation: 2W
●Dimension: 136*94*26mm
●Output: <1A (Resistant load)
●Temperature range: 41ºF -99ºF (5ºC -37ºC)
●Display accuracy: ±0.5 ºC
●Installation dimension: 60mm / 82mm (hole pitch)

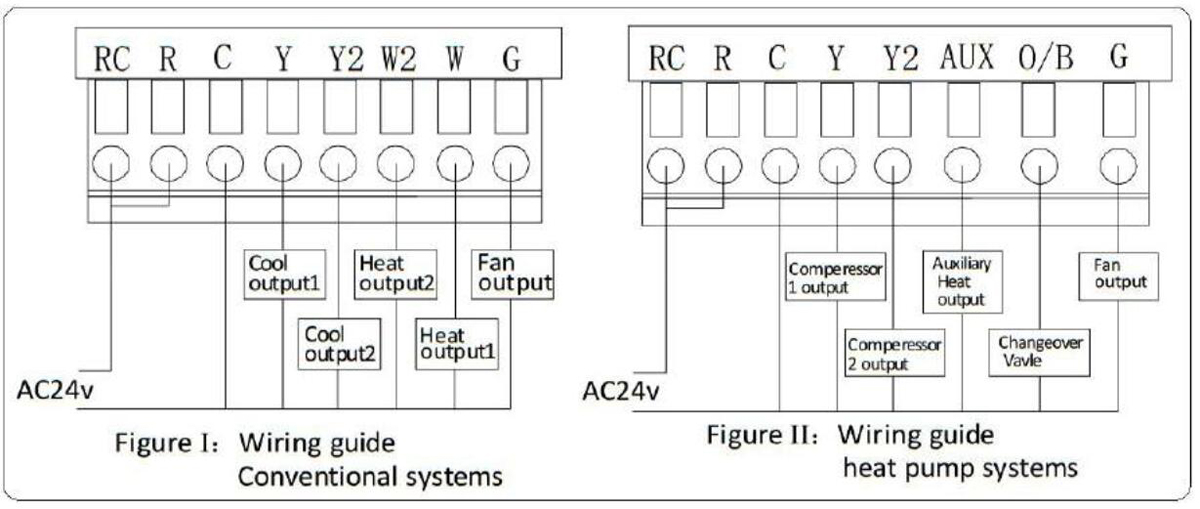

>>Wiring Diagram
>> Dimension and Display
