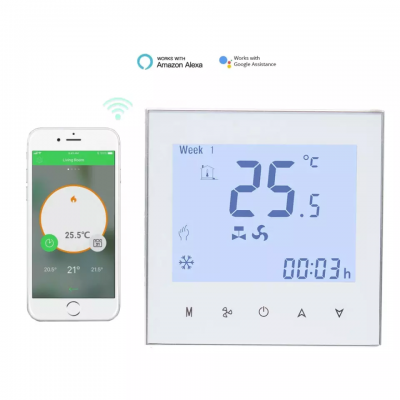

Electric Floor Heating Thermostat WiFi

Hotowell Heating Thermostat HTW-HT03 Series.pdf

 >> General

Electric floor heating smart WiFi thermostat usually has 16A current load output to activate electric films or something similar. Floor heating is the abbreviation of radiant floor heating. It is called Radiant Floor Heating in English. There are 3 kinds of popular radiant floor heating systems, and each has a different function heating only thermostat to control. It uses the entire ground as a radiator. The heat medium in the floor radiant layer uniformly heats the entire ground, using the ground’s own heat storage and the law of upward radiation of heat First conduct conduction to achieve the purpose of heating. Hydrofloor heating refers to a heating method that heats water to a certain temperature and delivers it to the water pipe cooling network under the floor to achieve heating through the floor heating. The low-temperature ground heat medium forms a gradually decreasing temperature gradient from the bottom of the feet to the head indoors, thus giving people the comfort of warming the feet and cooling the head. It is currently the most comfortable heating method and a symbol of modern life quality. HTW-HT03 series Wifi thermostat is widely used in these environment like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices and etc. to main an ideal room temperature purpose. It can be used in Electric Underfloor Heating, Water Heating or Water/Gas Boiler systems.

 >> Features

* 17 Mainstreaming Languages synchronize in APP(English, Spanish, Russian, Hungarian,Turkey, Hebrew, German, Italian, Japanese, French,Poland, simplified Chinese, traditional Chinese, Holland, Portuguese, Vietnamese, Arabic, Korean)

*Snap-In Easy Installation

*Fit for EU & Standard Junction Electric Box

*Easily Work with Amazon alexa, Google Assitant, IFTTT.

*Group Control in 1 App

*Fashion Sense of Science and Technology

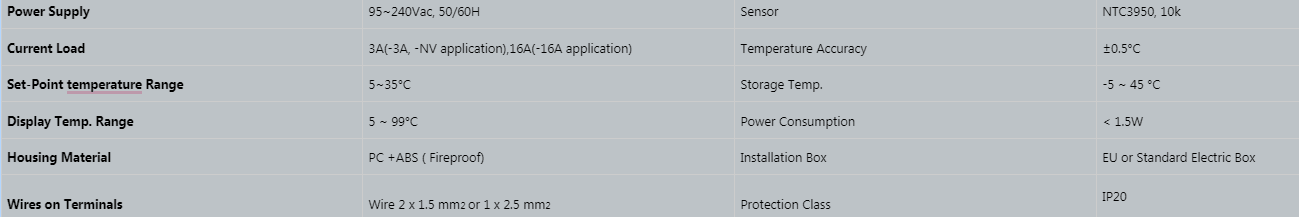

 >> Specification

 >>Wiring  Diagram

 >> Thermostat Installation

nMake sure the power is OFF! Try turning ON your heating/cooling system by changing the temperature. If you can’t get the system to turn ON in 5 minutes, you’ll know the power is OFF.

nTake off the installation faceplate by grasping and gently pulling, then connect voltage supply/load output/external sensor(if with) wires respectively to appropriate terminals.

nFix the installation plate onto the electric junction box with screws packed in the box.

nFasten the thermostat display part and the installation faceplate through the groove.(Installation process completed)

 >> Company Profile

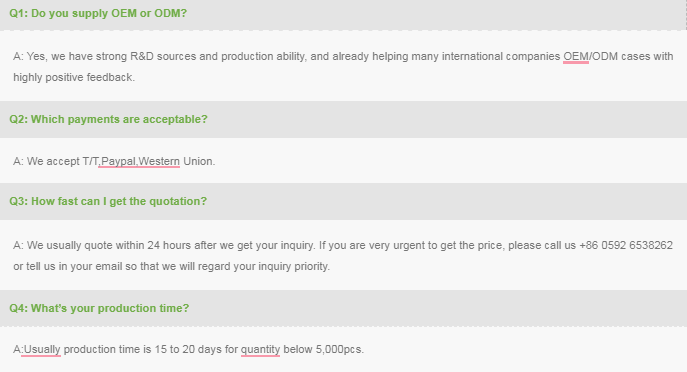

 >> FAQs
