3 Speed Fan Coil Thermostat Smart Hotel Thermostat Noise Free Application with Thermostat and Relay Module

Product ID : HTW-EW002

Product Tags : Fan coil thermostat Room thermostat smart thermostat

Product Attributes :

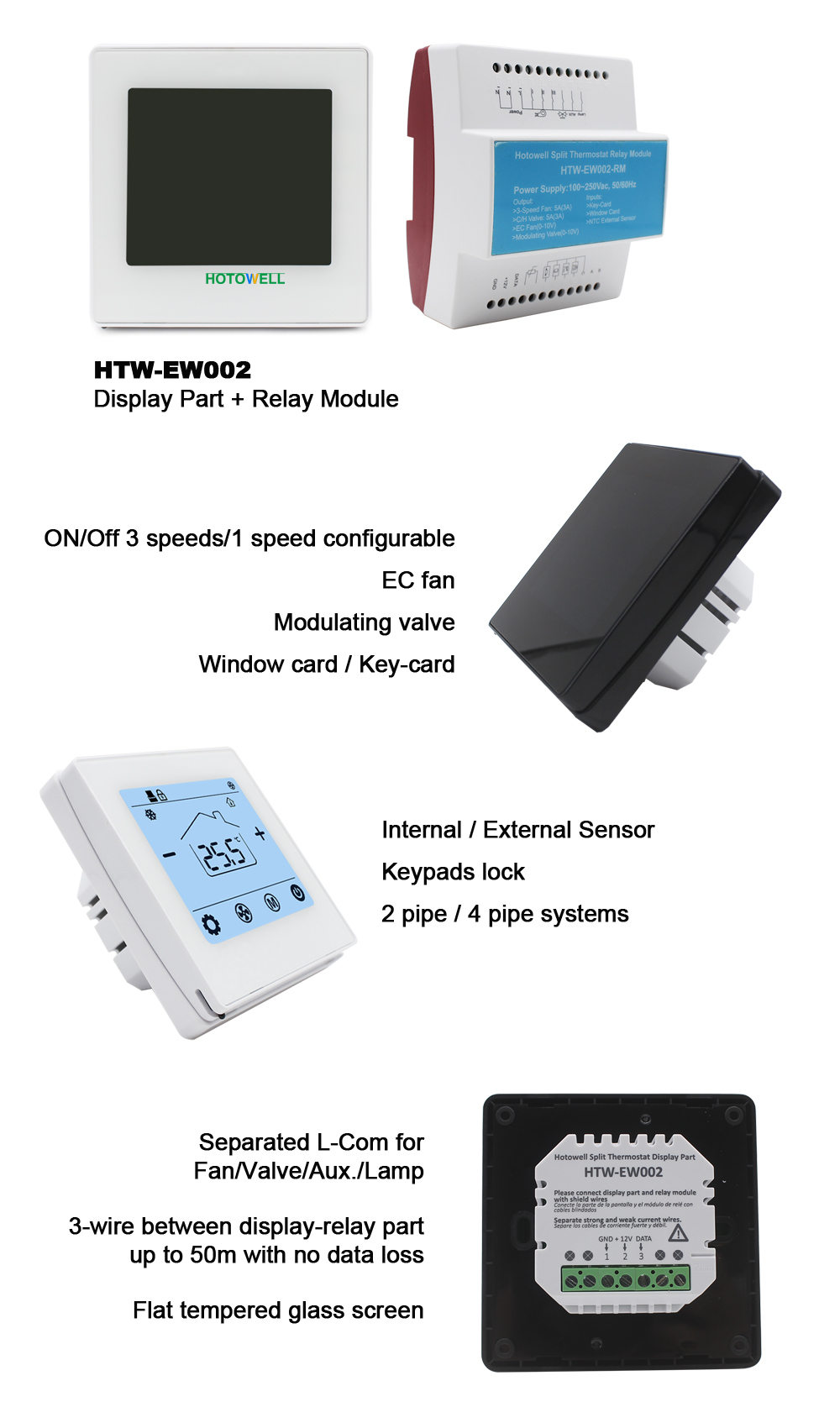

This Thermostat consists of 2 parts:

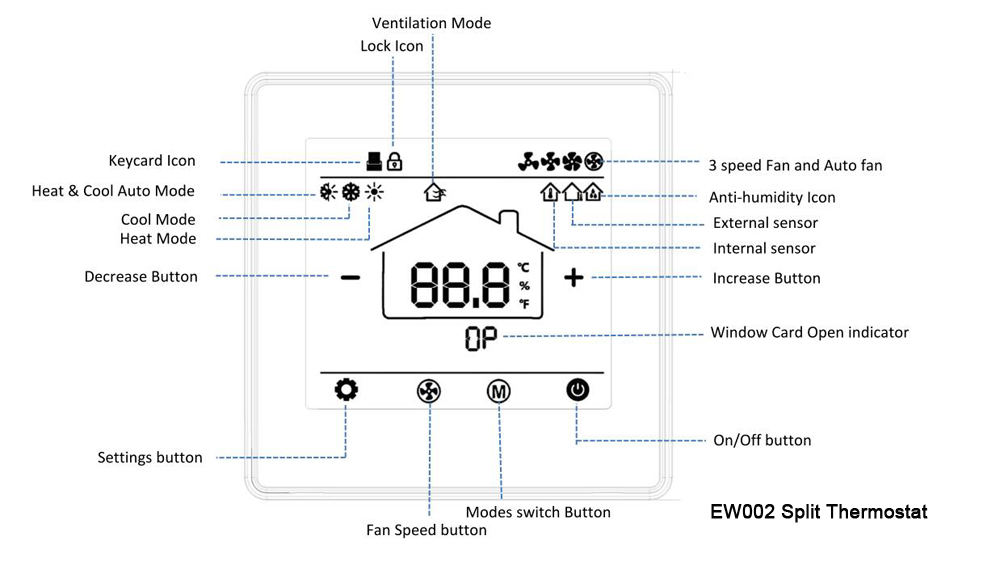

HTW-EW002 control panel dispalay part
HTW-EW002-RM relay module part

Product Description

3 Speed Fan Coil Thermostat Smart Hotel Thermostat Noise Free Application with Thermostat and Relay Module

>> General

Noise-Free Hotel Room FCU Lighting Touch Screen Split Controller Thermostat consists of 2 parts:
HTW-EW002 control panel dispalay part
HTW-EW002-RM relay module part
These 2 parts are connected with 4-pin data wire max. up to 30m, which makes it possible to install the relay module part in a remote place apart from the room, for a noise-free purpose.
HTW-EW002-B is a Touch Screen Split Thermostat Noise-Free Hotel Room Climate Controller application for water installations with fan coils. It is designed as a stand-alone device to operate the fan coil unit of a zone and includes a set of functions for zone occupancy and window position-based climate control.

>> Specification

Power Supply	100~250Vac, 50/60Hz	Installation Box	EU or Standard Electric Box
Current Load	3 Speed Fan Relay 5A(3A-inductive)	Temperature Sensor	NTC, 3950 10K Ω at 25 ℃ (77ºF)
	1 Cool Valve Relay 5A(3A-inductive)	Operating Temp.	5ºC to +35ºC (41ºF to 95ºF)
	1 Aux./Heat Valve 5A(3A-inductive)	Storage Temp.	-20ºC to +85ºC (-4ºF to +185ºF)
	1 Lamp Relay 5A(3A-inductive)	Operating Humidity (no condensing)	10% to 90% RH to 50ºC
Power Consumption	< 2W	Storage Humidity (no condensing)	95% RH to 50ºC
Housing Material	PC +ABS ( Fireproof)	Temperature Accuracy	± 0.5 ° C or ± 1 ℉
Wires on Terminals	Wire 2 x 1.5 mm² or 1 x 2.5 mm²	Set-Point Range	5~35°C

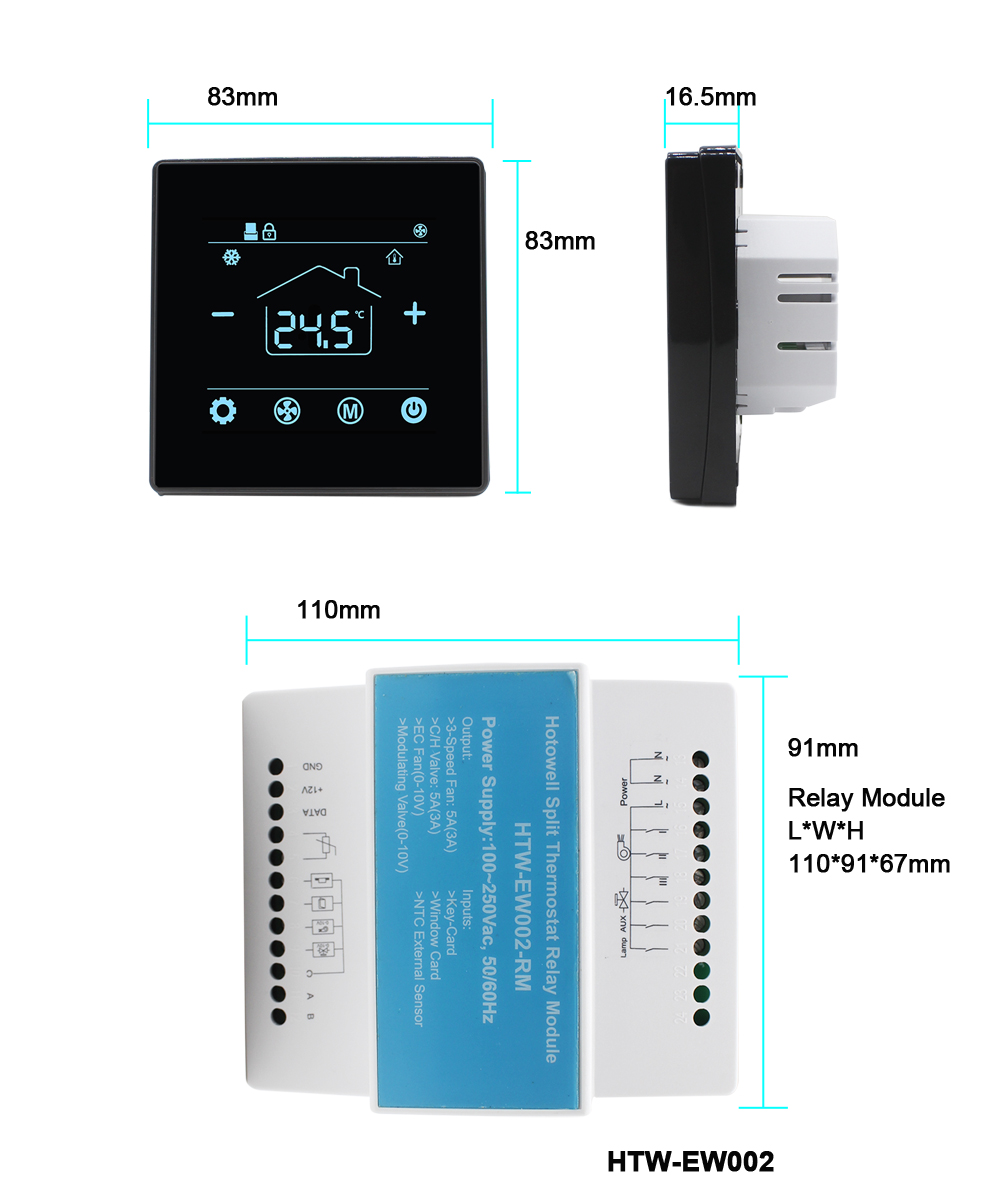

Front Panel Size	83x83x16.5mm	Relay Module Size	110x91x67mm
Protection Class	IP20	Electrical Safety	Class III

>> Device Inputs and Outputs

Inputs	Outputs
1 Digital key-card switch	3 Relays, fan coil speed (I,II, III)
1 Digital window contact	1 Relay, chilled water valve
1 Analog ambient NTC temperature sensor(internal)	1 Auxiliary relay (hot water valve on 4 pipe systems/lighting on 2 pipe systems)
1 Analog external NTC temperature sensor	1 Auxiliary relay for lamp
	1 EC Fan DC 0-10V
	2 Modulating Valve DC 0/2-10V
