HAVC Mechanical High Precision EC FAN Thermostat
HAVC Mechanical High Precision EC FAN Thermostat HAVC Mechanical High Precision EC FAN Thermostat HAVC Mechanical High Precision EC FAN Thermostat HAVC Mechanical High Precision EC FAN Thermostat HAVC Mechanical High Precision EC FAN Thermostat

HAVC Mechanical High Precision EC FAN Thermostat

Product Tags :
Product Description
Product Description

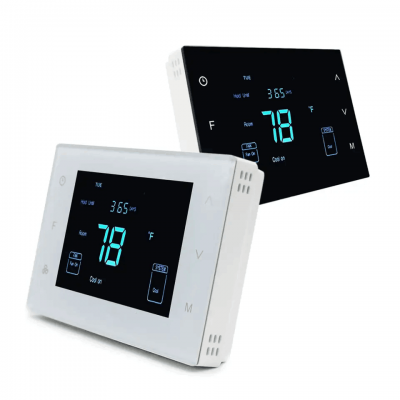

Ac system thermostat digital display FCU thermostat for EC fan


>> General

This series thermostat application is designed for room climate control at hotels, offices and homes with water and fan coil installations.

-3D1D includes 3 load digital ON/OFF fan speed outputs and 1 load digital ON/OFF valve output; -1A1D includes 1 load analogue EC fan motor output and 1 load digital ON/OFF valve output; -1A1A includes 1 load analogue EC fan motor output and 1 load analogue valve output; The device includes a built in temperature sensor on its front panel for room temperature measurement, and features an advanced control algorithm for fan coil speed and valve position control. The device includes a simple configuration menu that allows configuring up to 28 parameters. The unit can thus be adapted to the requirements of each installation



>> Features
Voltage:
100~240Vac, 50/60Hz, 24Vac optional
Display:
Touch Screen Display
Installation Hole Distance
60mm Standard
Change Over
HEAT/COOL
Configurable
2 pipe / 4 pipe systems
Temperature Units
(ºC/ºF)

>> Wiring Diagram


Factory Show
Packing & Shipping
Packing details
Unit Weight: 0.25KG/PC;
100 PCS/CTN;
Gross Weight: 25 KG;
Paper box packing;
Box dimension: 53*43*37CM
Delivery time : Shipped in 15-20 days after payment
Shipping Method

We usually ship by

1.Sea shipping :25-30 days

2. Air shipping :5-7 days

3. Express delivery(DHL, UPS, FedEx, TNT etc.):4-7days
