0~10V Modulating Valve Output 3 Speed Fan Controls Honeywell T6865H2WG Thermostat
Product ID : HTW-51-T6865
Product Attributes :
T6865 digital thermostats are designed for application of 3-speed fan and modulating valves in fan coil system.
Including:
§ 2-pipe cool only/heat only/manual changeover
Ventilation mode
Manual or automatic 3-speed fan control modulating valve control
§ Fan speed can be selected to automatic or manual 3-speed control mode.
§ In ventilation mode, fan only support manual speed control.
Product Description
0~10V Modulating Valve Output 3 Speed Fan Controls Honeywell T6865H2WG Thermostat
>>Application
T6865 digital thermostats are designed for application of 3-speed fan and modulating valves in fan coil system.Including:§ 2-pipe cool only/heat only/manual changeover Ventilation mode Manual or automatic 3-speed fan control modulating valve control§ Fan speed can be selected to automatic or manual 3-speed control mode.§ In ventilation mode, fan only support manual speed control.
>>Features
• Super modern appearance design, suitable for office, hotel and residential building
• Slim design, direct installation on 86×86mm box or 3×3inch box
• Stylish and elegant green/blue backlight with white colour ring
• 2-pipe integrated into one unit with easy configuration
• Big LCD display with English and icons
• Easy to install and set-up
• Time on/off function
• Selectable room temperature or setpoint temperature display
• Manual or automatic fan speed selection
• Energy saving mode activation by button press or dry contact (key card)
• Adjustment of display room temperature
• Temperature unit either ℃ or ℉
• User setting can be kept when power off
• Freezing protection function available
• Lock or unlock keys or part of keys in Installer Set-up ( ISU )
• Heat and cool setpoint limitation for energy saving
• 24VAC power supply
• 230VAC fan load, 4A resistive and 2A inductive switch rating

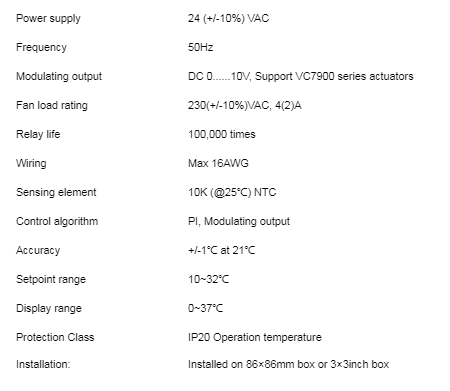

>>Technical Specification

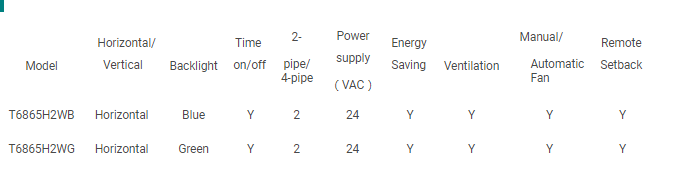

>>Model Summary
>> Company Profile
Hotowell is a high-tech company with rich experiences in product design and manufacturing, knowledge about global HVAC standards, and highly-trained team.
Our objective is to produce and design user-friendly HVAC products on the highest technical level for improving people's experience in temperature/environment comfort.
Hotowell has been cooperating with many international companies and HVAC projects through Europe, American, Asia, Oceania. Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc.
covering industrial, commercial and residential temperature controls.
>> FAQs
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities acceptable?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warranty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warranty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reaction, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
