Home Products Hotowell Products 2022 The Best 3 Way or 2 Way Modulating Motorized Valve for FCU System
2022 The Best 3 Way or 2 Way Modulating Motorized Valve for FCU System
2022 The Best 3 Way or 2 Way Modulating Motorized Valve for FCU System 2022 The Best 3 Way or 2 Way Modulating Motorized Valve for FCU System 2022 The Best 3 Way or 2 Way Modulating Motorized Valve for FCU System 2022 The Best 3 Way or 2 Way Modulating Motorized Valve for FCU System 2022 The Best 3 Way or 2 Way Modulating Motorized Valve for FCU System

2022 The Best 3 Way or 2 Way Modulating Motorized Valve for FCU System

Product ID : HTW-MV13
Product Attributes :

Modulating Motorized Valve

- 2 way or 3 way available

-Rated Voltage 24V AC 2.5VA

- Frequency: 50/60Hz

-DN size: DN15~DN32 or 1/2"~1.1/4"

Product Description

2022 The Best 3 Way or 2 Way Modulating Motorized Valve for FCU System



>>General

HTW-MV13 series Motorized Modulating Control Valve are mainly used in central air- conditioning cool/heat water system. It can accurately control the flow of cool/heat medium according to the actual requirement, and will not result in sudden change of temperature and to control the room temperature accurately. It provides two types: 2-way and 3-way with sizes: 1/2", 3/4", 1" and 1.1/4'' optional.


Screw Thread default provided with BSP(G),
Specific NPSC(N), SWEAT(S), INVERTED FLARE(I), etc. can be customized.

>> Technical parameters
• High precision and sensitivity of temperature control;
• 24Vac, 50/60Hz;
• Timing protection device (for 24V working power supply, it can be assembled for optional), to ensure motor reliable and durable life;
• Built-in electronic card (24V working power supply only) can receive 0~10V (input impedance: 200KΩ) or 4~20mA DC (input impedance: 500Ω) input control signal, and provide proportional control, and 0~10Vdc (1mA) feedback signal.
• The valve actuator and valve body is used tight lock connection. The actuator can be installed after the installation of valve body. It has flexible and convenient assembly.



>> Model Comparison Table

>> Valve Dimensions

>>Company Profile

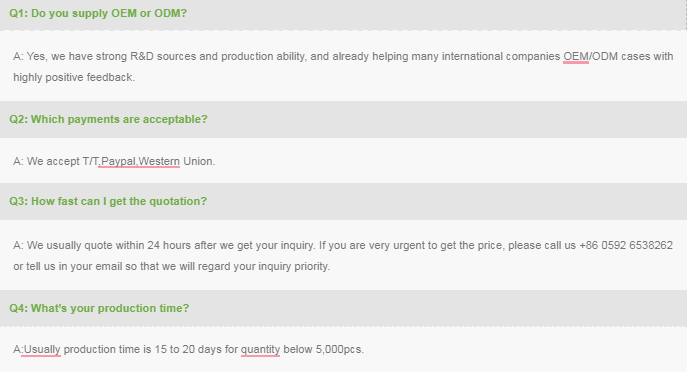

>>FAQs



electric actuated gate valve, motorized valve for fcu, 3 way valve motor
