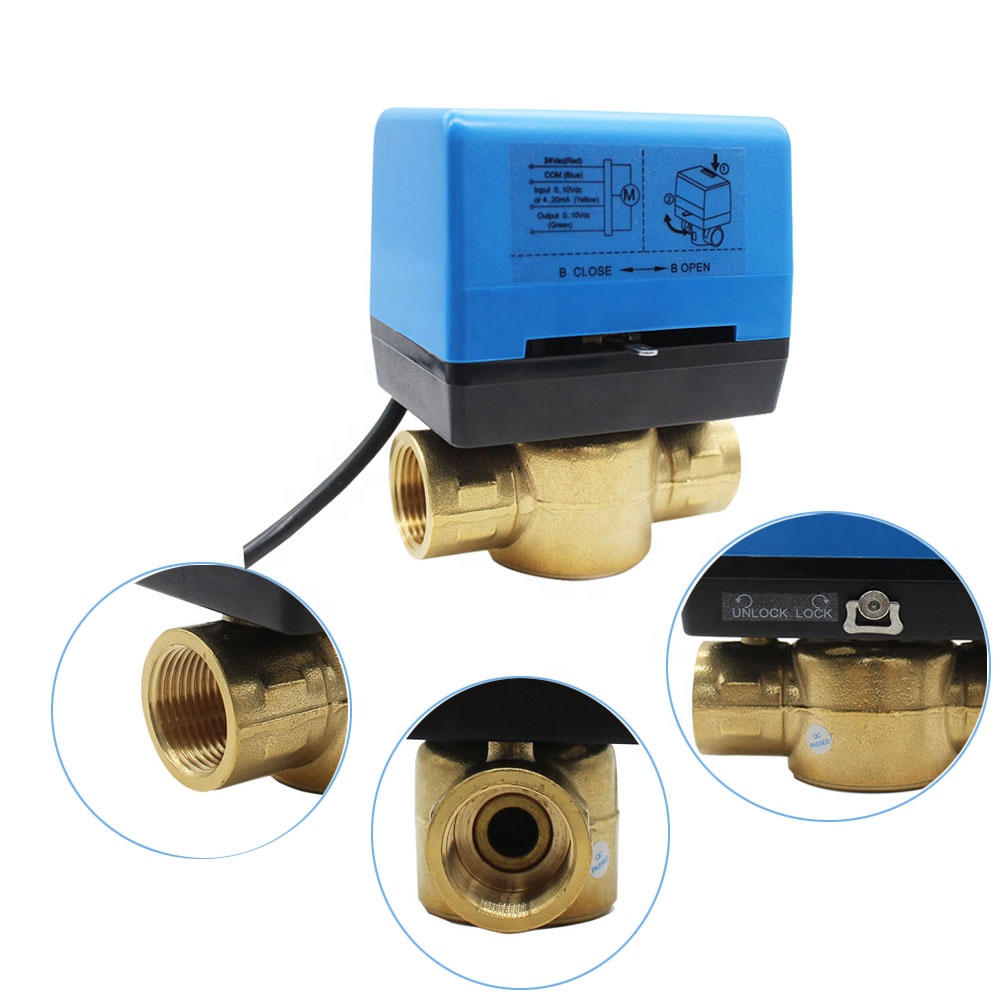

24V Motorized Valves 2/3 Way Brass Material Motorized Modulating Control Valve
24V Motorized Valves 2/3 Way Brass Material Motorized Modulating Control Valve 24V Motorized Valves 2/3 Way Brass Material Motorized Modulating Control Valve 24V Motorized Valves 2/3 Way Brass Material Motorized Modulating Control Valve 24V Motorized Valves 2/3 Way Brass Material Motorized Modulating Control Valve 24V Motorized Valves 2/3 Way Brass Material Motorized Modulating Control Valve

24V Motorized Valves 2/3 Way Brass Material Motorized Modulating Control Valve

Product ID : HTW-MV13
Product Tags : Motorized Zone Valve
Product Attributes :

HTW-MV13 series Motorized Modulating Control Valve are mainly used in central air- conditioning cool/heat water system. It can accurately control the flow of cool/heat medium according to the actual requirement, and will not result in sudden change of temperature and to control the room temperature accurately. It provides two types: 2-way and 3-way with sizes: 1/2”, 3/4”, 1” and 1.1/4’’ optional.

Product Description
24V Motorized Valves 2/3 Way Brass Material Motorized Modulating Control Valve
Product Description

>> General





HTW-MV13 series Motorized Modulating Control Valve are mainly used in central air- conditioning cool/heat
water system. It can accurately control the flow of cool/heat medium according to the actual requirement,
and will not result in sudden change of temperature and to control the room temperature accurately.
It provides two types: 2-way and 3-way with sizes: 1/2”, 3/4”, 1” and 1.1/4’’ optional.

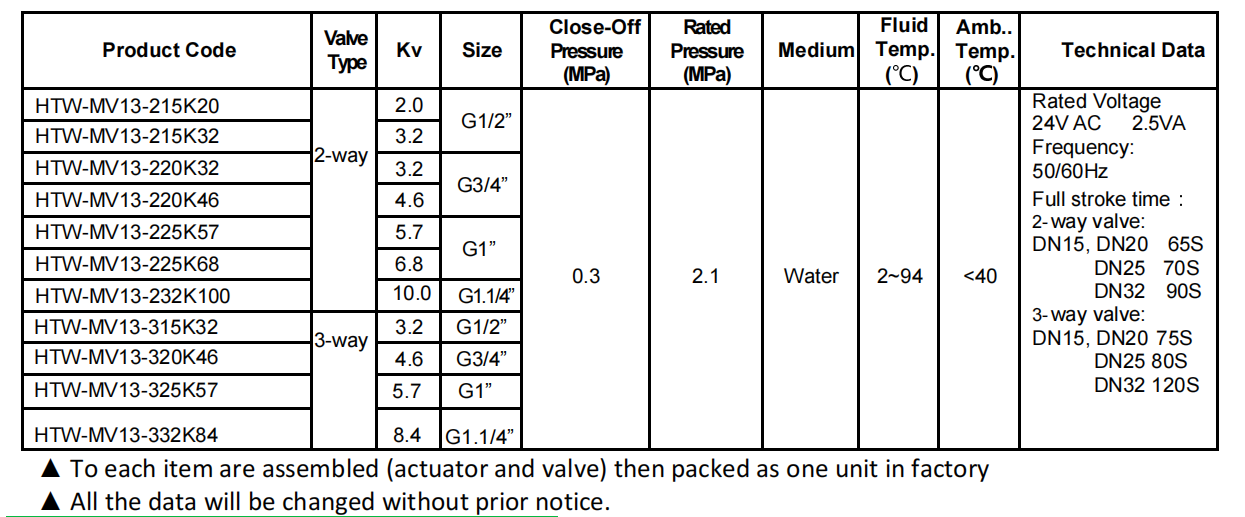

>> Specification

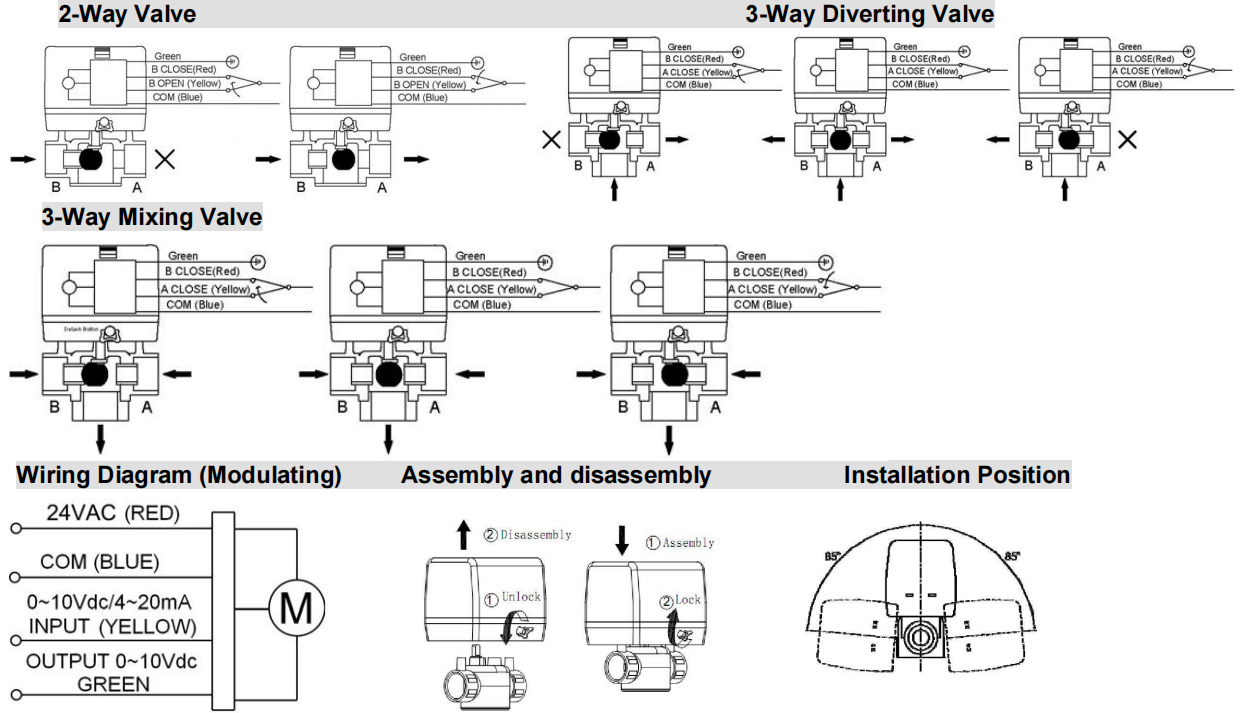

>>Wiring Diagram

>> Dimensions
Type
Dimensions
C
D
E
F
G
DN15 2-way
115
73
67
80
90
DN15 3-way
125
73
67
80
90
DN20 2-way
115
73
67
89
90
DN20 3-way
127
73
67
89
90
DN25 2-way
117
73
67
93
90
DN25 3-way
139
73
67
93
90
DN32 2-way
131
73
67
105
90
DN32-3way
146
73
67
105
90
