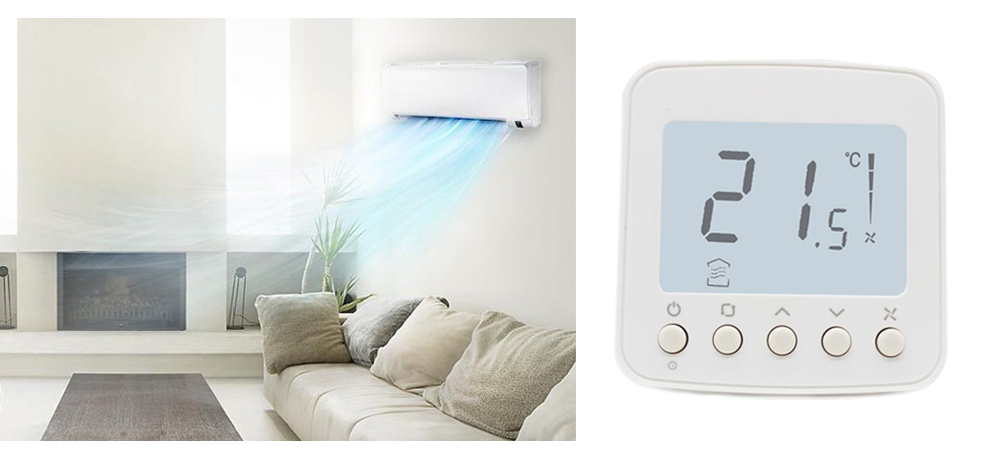

HVAC 2 Wire System 120V Temperature Controller Fan Coil Hotel Room Digital Thermostat

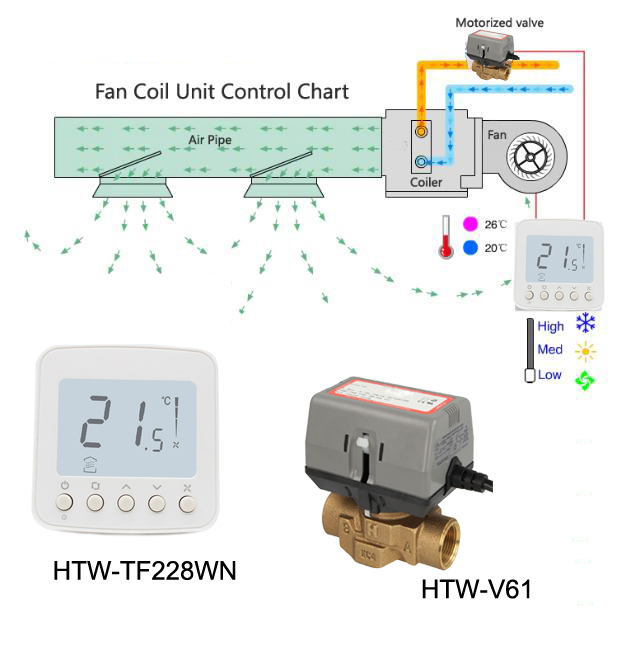

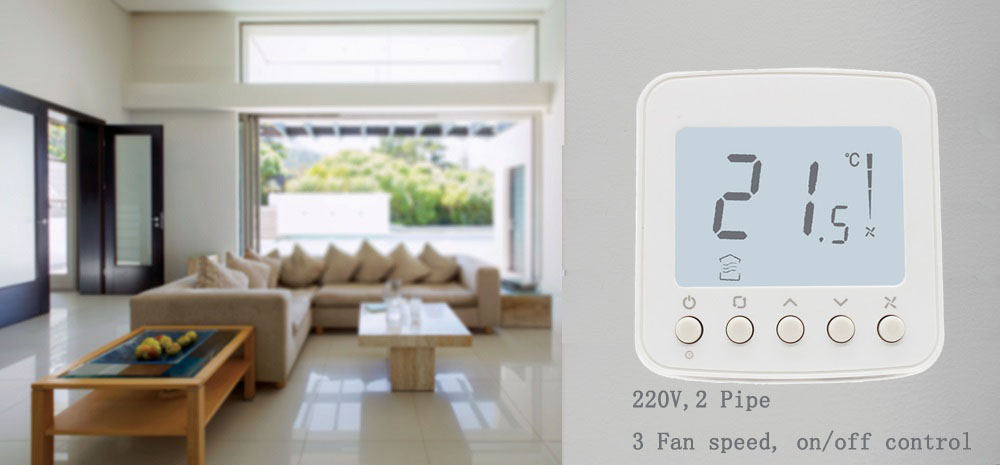

The TF228WN digital thermostat is designed for 3-speed fan and valve control in a fan coil system, including:
2-pipe cool only/heat only/manual changeover
Ventilation mode
Manual or automatic 3-speed fan control
Water valve control
Besides the basic controls, TF228WN featuring CPH (Cycle Per Hour) better maintains the room temperature to the setpoint
and memorized time off function can automatically turn off the thermostat to save energy.
In addition, Honeywell Random start-up function would help to maintain power grid stability.

Memorized time off
Cycle Per Hour (CPH)
Random startup
LCD display with simple user interface
Room temperature or setpoint temperature display selectable
Manual or automatic fan speed selectable
Temperature units in either °C or °F
User setting can be stored with power loss
Freeze protection available
Four keypad lock options
Heating and cooling setpoint limitation
Flush mount on standard 86 wall mounting box

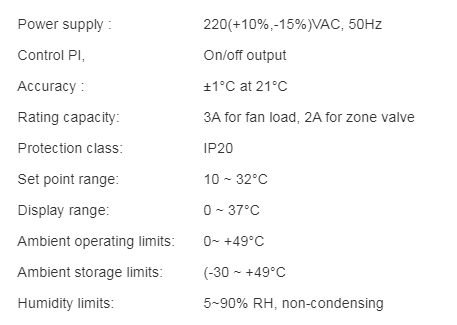

>>Specification
Power supply :220(+10%,-15%)VAC, 50Hz
Control PI, On/off output
Accuracy :±1°C at 21°C
Rating capacity: 3A for fan load, 2A for zone valve
Protection class: IP20
Set point range: 10 ~ 32°C
Display range: 0 ~ 37°C
Ambient operating limits: 0~ +49°C
Ambient storage limits: -30 ~ +49°C
Humidity limits: 5~90% RH, non-condensing

Applications
