HVAC system 0-10vd 3 way DN20 modulating control Motorized valve
HTW-MV13 series floating/modulating control valve is driven by bi-directional motor. The floating /modulating thermostat will continuously collect the data and make processing, and send out control signals to operate or stop the motor so as to control the open/close angle of the valve.
HTW-MV13 SERIES MODULATING VALVE.pdf
>>General
HTW-MV13 series ball valve actuator is using bi-directional motor. It is mainly used in central air-conditioning system, heating system, water treatment, and production industry to control the flow of chilled/hot medium
>>Features
Bi-directional floating proportional control;
High precision and sensitivity of temperature control;
Various AC voltages for selection, such as 24V, 110V and 220V, etc.;
Timing protection device (for 24V working power supply, it can be assembled for optional), to ensure
motor reliable and durable life;

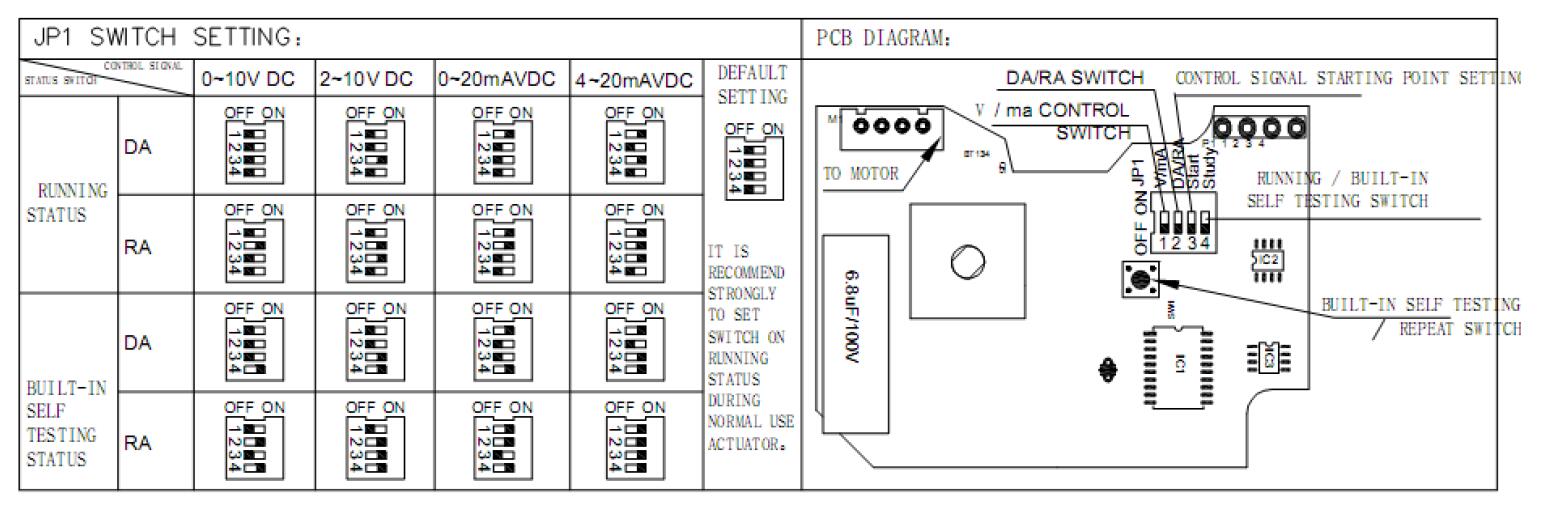

Built-in electronic card (24V working power supply only) can receive 0~10V (input impedance: 200KΩ) or
4~20mA DC (input impedance: 500Ω) input control signal, and provide proportional control, and 0~10Vdc
(1mA) feedback signal.
The valve actuator and valve body is used tight lock connection. The actuator can be installed after the
installation of valve body. It has flexible and convenient assembly.

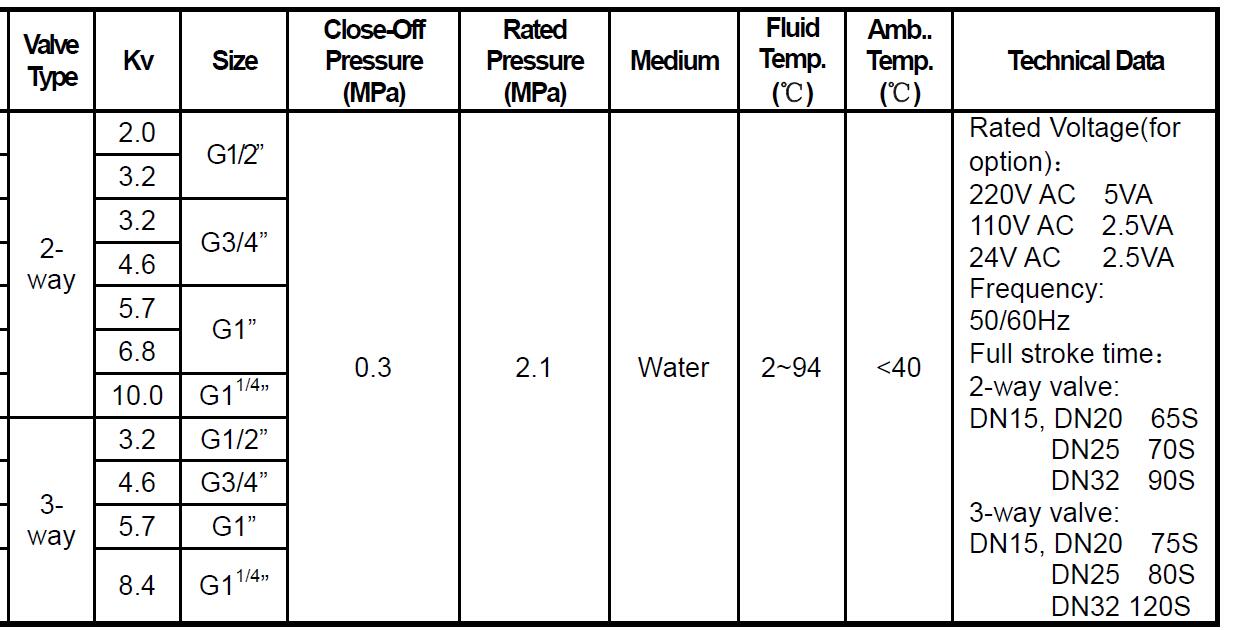

>>Specifications

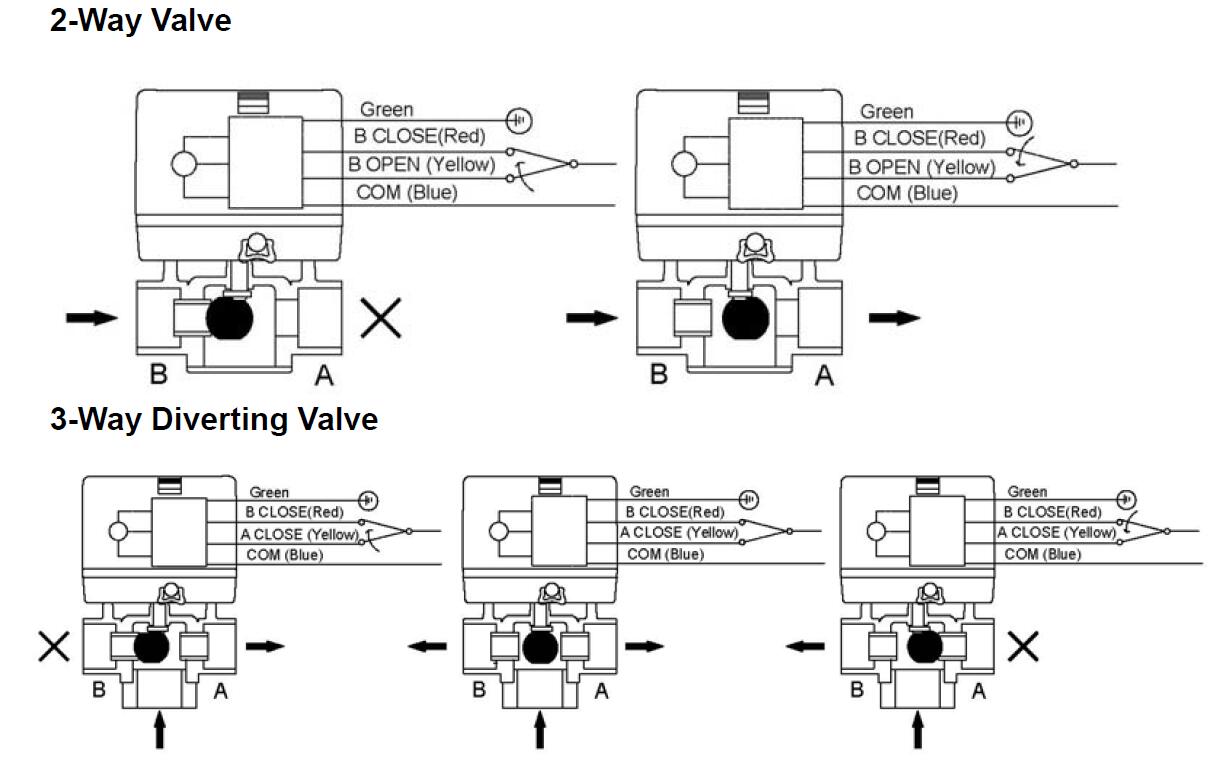

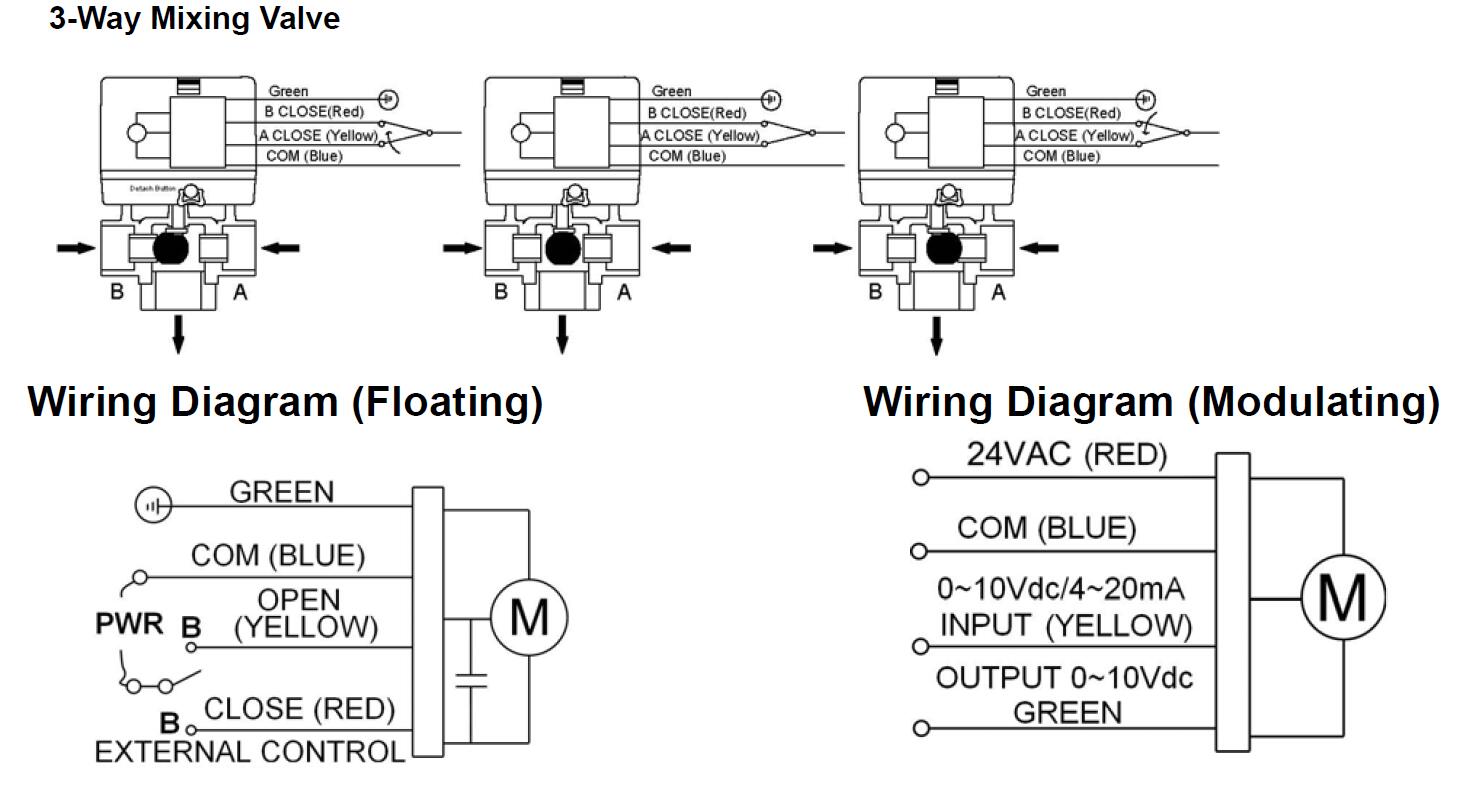

>>Installation and Set-Up
